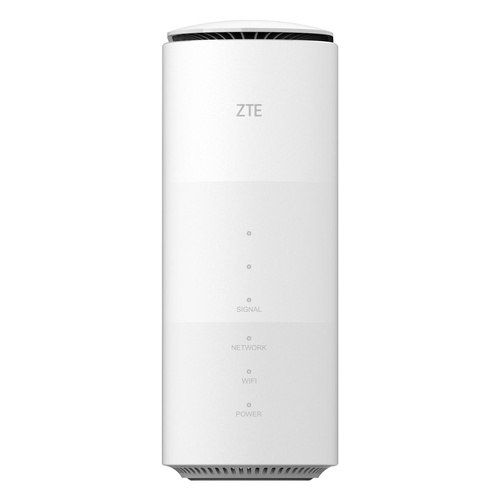

Offering flagship performance, the RTR-ZL 5G/4G wireless modem router delivers amazing mobile broadband and WiFi speeds in a stylish package. It features dual-band WiFi 6 support and can handle up to 64 simultaneous users. With maximum 5G speeds up to 3.8Gbps and LTE-Advanced 4G speeds up to 1Gbps, it is the high-bandwidth router choice for use in enterprise and enthusiast applications. Its advanced performance with 5G carrier aggregation makes it a top choice for homes or businesses requiring ultra-fast, stable wireless connectivity.

The RTR-ZL utilises the latest Snapdragon X62 chipset for superior speed, performance and reliability.

• 5G NR NSA/SA with carrier aggregation support; nano sized SIM slot
• 5G max. data throughput 3800/900Mbps download/upload*
• N1/3/7/8/20/28/38/40/41/75/77/78 5G band support
• 4G/LTE-A CAT16 with carrier aggregation support
• 4G max. data throughput 1000/150Mbps download/upload*
• FDD-LTE B1/3/4/5/7/8/20/28/32, TDD-LTE B38/40/41/42/43 4G band support
• Dual band WiFi 6, 802.11 b/g/n/ac/ax standard, 2.4GHz & 5GHz MIMO 2x2 antenna
• 2.4GHz 688Mbps* and 5GHz 2882Mbps* WiFi max. data throughput
• WPA/WPA-PSK/WPA2/WPA2-PSK/WPA3-PSK WiFi security protocols
• 2 x RJ45 1000M Ethernet, including 1 x LAN/WAN port
• Supports up to 64 simultaneous wireless users
• Built-in WiFi & 5G/4G antennas
• 12VDC/1.5A input power
• Manage router configuration via Web UI or Smartlife app

* Maximum data rates are network and environment dependent; theoretical maximum values shown; actual results will vary

Specifications

Device Hardware

• Network Interface : 2 x RJ45 (1000M) (1 x WAN/LAN), 1 x Nano SIM Slot, 1 x RJ11
• Device Indicators : Power/WiFi/Network LED Indicators, WPS/Reset Buttons
• Input Power : 12VDC 1.5A
• Backup Battery : -
• Dimensions : 182 x 124 x 70mm
• Weight : 520g
• Operating Environment : -20-55°C Temperature, 5-95% Humidity
• Certifications : CE, WEEE, RoHS, WiFi

WiFi Performance

• WiFi Standard : IEEE 802.11a/b/g/n/ac/ax (WiFi 6)
• WiFi Antenna : 2x2 MIMO 2.4GHz, 2x2 MIMO 5GHz
• WiFi Data Rate : 2.4GHz 688Mbps, 5GHz 2882Mbps*
• WiFi Security : WPA/WPA-PSK/WPA2/WPA2-PSK/WPA3-PSK
• WiFi Concurrent Users : 64

Cellular Performance

• Cellular Category : 5G NR NSA/SA with 5 Carrier Aggregation, 4G/LTE-Advanced CAT16
• Max. Data Throughput (Down/Up) : 5G 3800/900Mbps*, FDD-LTE 1000/150Mbps*
• Support Frequencies : 5G N1/3/7/8/20/28/38/40/41/75/77/78, FDD-LTE B1/3/4/5/7/8/20/28/32, TDD-LTE B38/40/41/42/43
• Cellular Antenna : Built-in 5G/4G Antenna, 26dBm (N41/78) and 23dBm Max. Tx Power

Software Features

• Software Functions : MAC address filtering, Wi-Fi encryption authentication, VPN Pass-through, IPV4/IPV6, VoLTE, VoIP, DMZ, SSID, Guest SSID, Port Forwarding, Watchdog Service, DHCP, APN, Firewall, Hybrid Mode (LAN/WLAN)
• Management Platform : Web UI, Smartlife App
