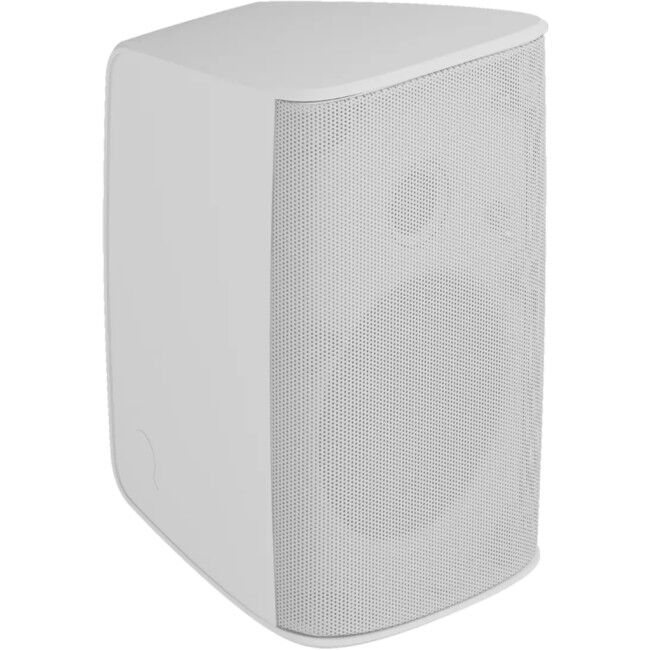

Quest MX4W White 2-Way 4" High-Fidelity Weatherproof Speaker

The Quest MX4 is the most compact member of the MX Series, engineered for installations where discreet form factor and weather resistance are essential. Its low-profile design enables unobtrusive wall or ceiling mounting, while delivering clear and articulate audio reproduction. Built to withstand harsh environmental conditions, the MX4 integrates seamlessly with other MX Series loudspeakers to provide consistent, full-range coverage without compromising aesthetics.

The included UB1X bracket system allows for rapid, repeatable deployment, streamlining installation and ensuring precise alignment every time.

Key Specifications:

  • Impedance: 16?Ω& 70/100V
  • Transducers: 1? HF & 4? LF
  • Dispersion: 150° × 125°
  • Power: 50W RMS
  • Weather Rating: IP55, or IP65 with included connector cover.
  • Mounting: Wall mount (UB1X) included; ceiling mount (UB2X) optional.

SPECIFICATIONS

COLOURS
WHITE (RAL9003)
MODELS
MX4B
FREQUENCY RESPONSE (-6 dB)
100Hz to 20kHz
SENSITIVITY - 1 W @ 1 m
86dB
MAXIMUM SPL @ 1 m
106dB
POWER HANDLING (RMS/PEAK)
50W / 100W
NOMINAL IMPEDANCE
16Ω
TRANSDUCERS
HF: 25mm (1") Dome Tweeter / LF: 102mm (4") Woofer
DISPERSION (H° x V°)
150° x 125°
TRANSFORMER SETTINGS
100V: 4W / 8W / 15W / 30W
70V: 2W / 4W / 8W / 15W
CONNECTIONS
Euroblock/Phoenix Connector - 5.08mm Pitch (In/Thru)
DIMENSIONS (H x W x D)
250 x 150 x 172mm (9.8" x 5.9" x 6.8")
WEIGHT
2.6kg (5.7lb)
RIGGING POINTS
50mm x 50mm Back Bracket Mount
IP RATING
Speaker Cabinet IP55 or IP65 when used with included Weatherproof Connector Cover
CABINET MATERIAL & FINISH
Injection Moulded ASA (Acrylonitrile Styrene Acrylate)
GRILLE MATERIAL & FINISH
Removable Powder Coated Aluminium Grille
SHIPPING DIMENSIONS (H x W x D)
305 x 230 x 325mm (12" x 9" x 12.8")
SHIPPING WEIGHT
4.2kg (9.3lb)
RECOMMENDED POWER AMPLIFIER
Quest QX or QXD Amplifiers
ACCESSORIES (INCLUDED)
Wall Mount Bracket (UB1XB/UB1XW), Weatherproof Connector Cover, Standard Connector Cover & Euroblock/Phoenix Connector
ACCESSORIES (AVAILABLE SEPARATELY)
Ceiling Mount Bracket (UB2XB/UB2XBW)



(MX4W)

SKU MX4W
Model # MX4W
Brand QUEST
