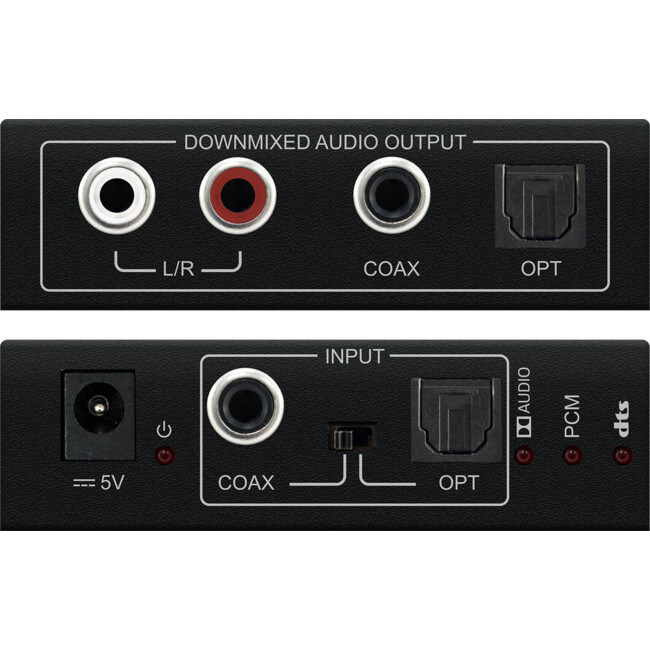

Blustream DAC13DB - Digital Audio Converter with Dolby Down-mixing

Description

The Blustream DAC13DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within an optical or coaxial audio signal into a stereo 2ch signal available on optical, coaxial and analogue audio outputs.






Key Features

  • Downmixes 5.1ch Dolby Audio and DTS Audio from optical Toslink or coaxial digital audio input signals from a compatible source device to 2ch stereo audio

  • Simultaneously outputs downmixed 2ch audio via analogue, optical Toslink or coaxial digital audio outputs

  • Dolby Audio and DTS Audio formats supported:
    • PCM 2ch
    • Dolby Digital 2ch
    • Dolby Digital 5.1ch
    • DTS 2ch
    • DTS 5.1ch

Supports audio signals up to 24-bit with sampling ratesup to 96kHz

Specifications

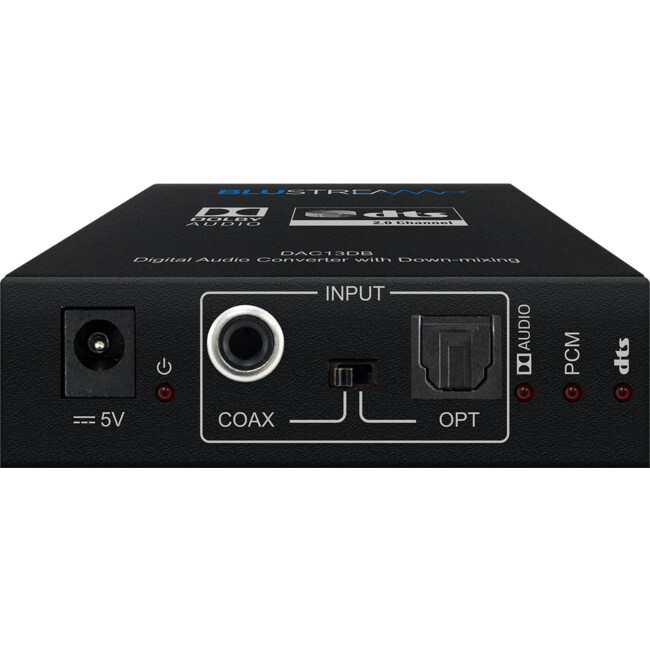

  • Audio Input Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital

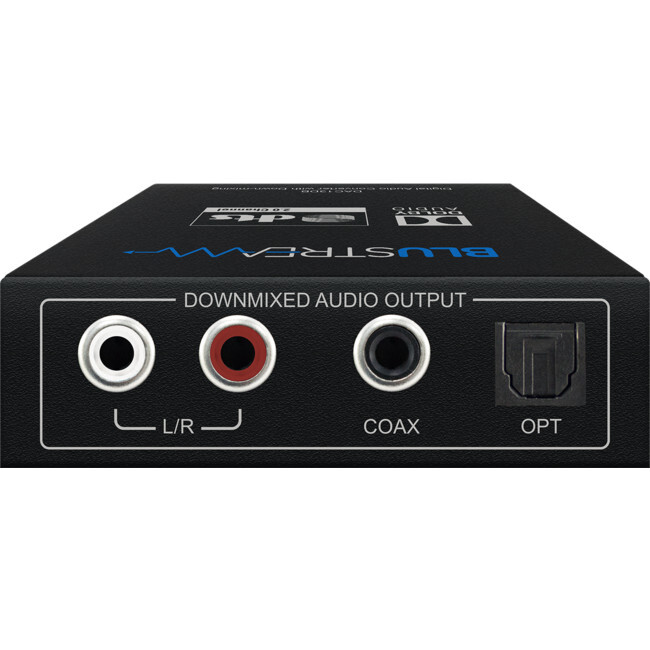

  • Audio Output Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital, 2 x RCA Stereo Analogue (L/R)

  • Casing Dimensions (W x D x H): 80mm x 76mm x 24mm (without connections)

  • Dimensions (W x D x H): 80mm x 91mm x 24mm

  • Shipping Weight: 0.2kg

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)

  • Power Supply: 5V/1A DC

    Note: Specifications are subject to change without notice. Weights and dimensionsare approximate.



Box Contents

1 x DAC13DB
1 x Mounting Kit
1 x 5V/1A DC Power Supply
1 x Quick Reference Guide



(DAC13DB)

SKU DAC13DB
Model # DAC13DB
Brand BLUSTREAM
