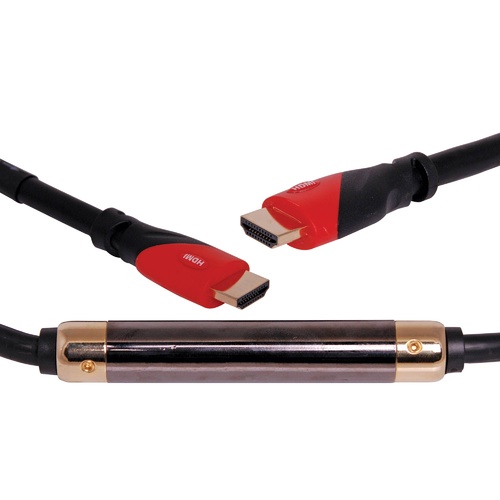

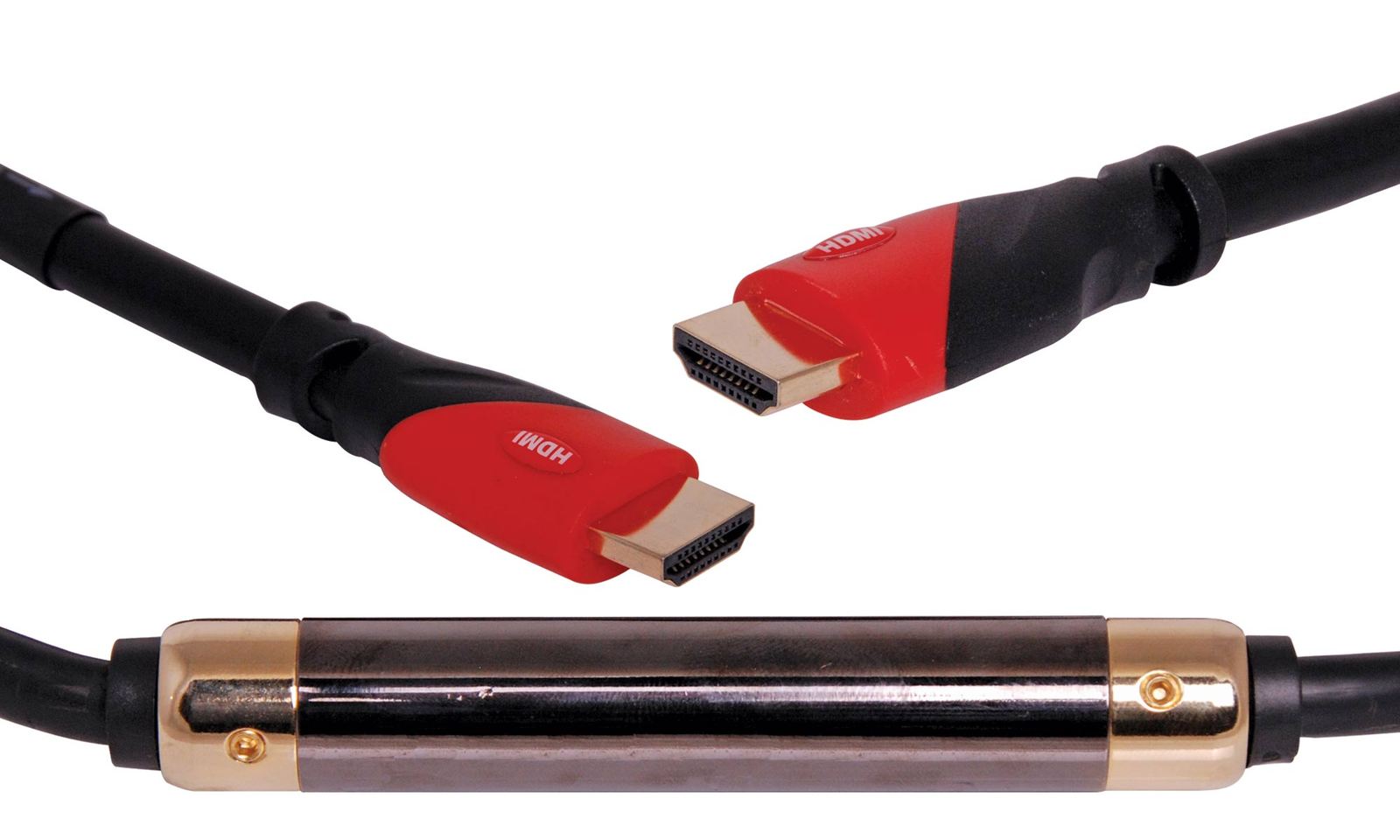

HDMI male to HDMI male cable fitted with a booster/repeater for reliable long distance transmission. Low profile connector fits 25mm conduit. This series is backed by Dynalink's lifetime warranty and offers excellent performance for your HDMI equipped devices. They are suitable for use with 1.4 and 2.0 HDMI compliant equipment and are capable of 4K resolutions at 60fps with 32 channels of audio.

Narrow HDMI plug design suits 25mm electrical conduits.

Due to feedback from installers we have designed this range of HDMI leads to use a narrow profile connector which is suitable for running through 25mm electrical conduits in walls and slabs. This makes it much easier to run cables on the job without the need for complicated cable terminations.

Please note: These leads are directional and must be plugged in correctly as per cable printing IN/OUT.

Key Features:

» HDMI certified.
» Lifetime warranty.
» Narrow profile plug suits 25mm conduits.
» 24AWG cable guage with fibre wrap shielding
» Offers high performance with V2.0 compliance.
» Supports 4K resolutions at 60fps.
» 32 channels of audio.
» 18Gbits/s TMDS bandwidth.
» 48 bit/px deep colour.

HDMI High Speed With Ethernet. Made by an official HDMI adopter.

Altronics only stocks the 'HDMI High Speed With Ethernet' type of leads outlined in the official HDMI adopter standard. These leads are compatible with all HDMI equipment which complies to this standard including both V1.4 and V2.0 equipment. Read more about HDMI lead types.

4K @ 30/60Hz Ultra HD Ready

This range of HDMI leads is compatible with the latest HDMI V2.0 standard providing support for 4K resolutions at both 30Hz and 60Hz frequencies. This provides the best possible performance on Ultra HD monitors and source equipment.

Connector: Type A Male, Gold
Wire gauge: 24AWG plus 28AWG
Wire material: Bare copper
Out-diameter: 8.5mm
Resolution: 4K @ 3840 x 2160
Data rate: 18GBPS
Colour depth: 36BIT
Type of shielding: Triple shield
*Specifications are subject to change without notice.
