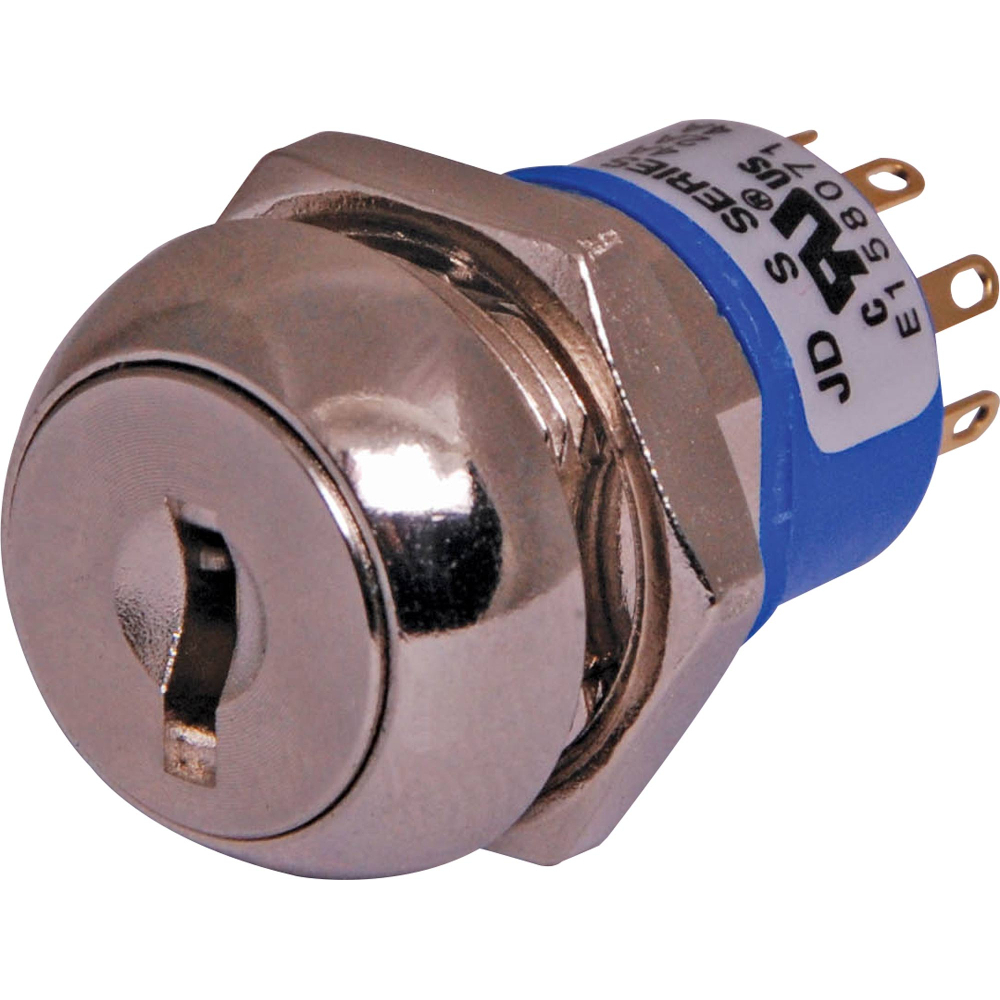

Key removable all positions. Non-spring return (ie. Alternate action).

Panel hole 19mm, length 27.5mm from
rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm.
Two keys supplied with each switch.
Rated 2A 250V AC.

Supplied with two keys

Connection Details
Pos.1 - 8, 1
Pos.2 - 1, 2
Pos.3 - 2, 3
Pos.4 - 3, 4

Specifications:

  • Electrical
  • Contact Rating: 4A 125VAC/28VDC, 2A 250VAC
  • Contact Resistance: Below 10 million
  • Insulation Resistance: 1 Billion  Min.
  • Dielectric Strength: 1000V RMS Min. sea level
  • Electrical Life: 6000 make-and-break cycles at full load
  •
  • Materials
  • Lock Housing: Zinc Alloy die-casted nickel Plated.
  • Cylinder: 4 Disc Tumblers Constructed,Zinc Alloy die-casted nickel Plated.
  • Keys: Brass, Original Colour or Nickel Plated.
  • Contacts: Super Hard Copper Alloy, Silver Plated..
  • Mounting Nut: Zinc Alloy Die Cast, Nickel Plated





(S2654)

12 Months

SKU S2654
Model # S2654
Barcode # 9321758183762
Brand BOURNE
Unit Of Measure Each
