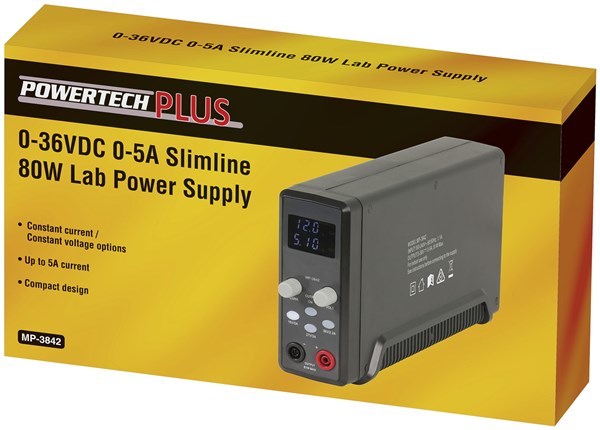

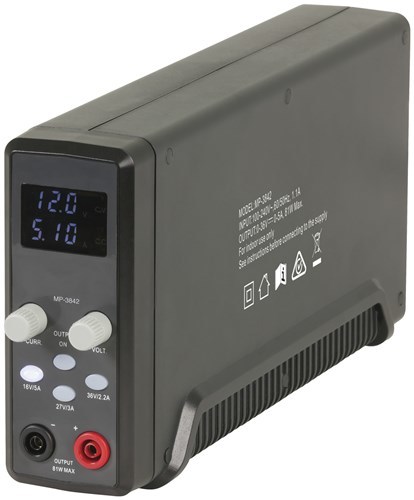

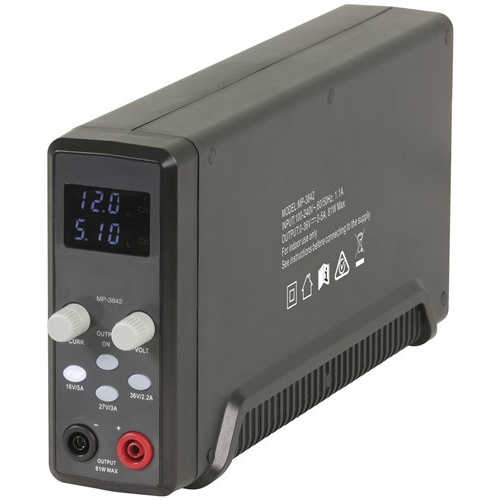

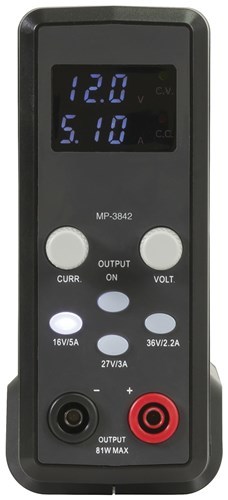

Often in a workbench environment you don’t need massive amounts of power, and your huge unit is under-utilised. This slimline power supply provides up to 80W of power, still plenty of grunt for many tasks. It provides constant current and constant voltage options. Simply select your power range, then adjust the controls to obtain your desired outputs. Ranges available are 0-16V @ 0-5A, 0-27VDC @ 0-3A, and 0-36V @ 0-2.2A. Output is provided via banana sockets which will accept insulated banana plugs. A powerful, compact unit for your workbench or mobile toolkit. Includes banana to alligator clamp leads.

Features:

• Constant current / constant voltage options
• Up to 5A current
• Compact design
•  Input Voltage: 100-240VAC @ 50/60Hz - Figure-8 cable (PS4115 if needed)
• Output Voltage: 0-16VDC 0-5A (Max), 0-27VDC @ 0-3A (Max), 0-36VDC @ 0-2.2A (Max
• Output Power: 80W Max.

Specifications

• Width:53mm
• Height:138mm
• Depth:300mm
• Weight : 886g
