SZ1925

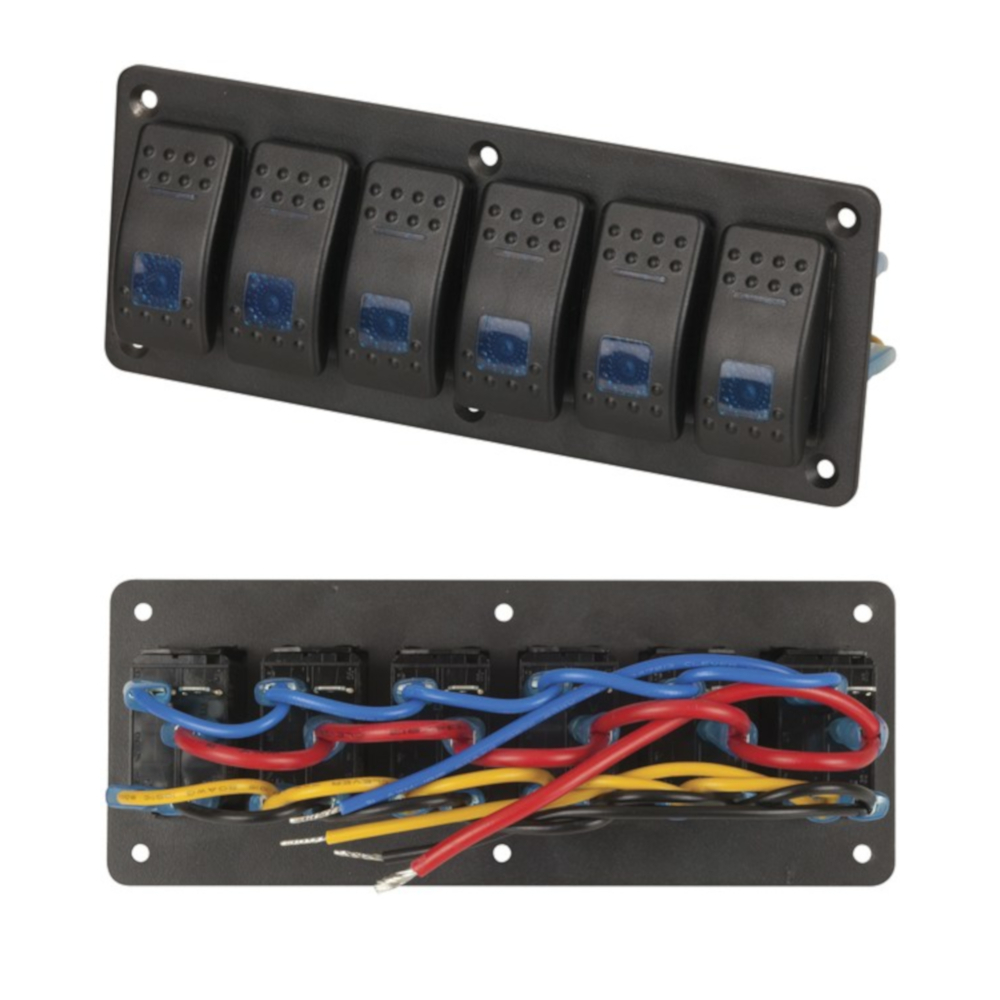

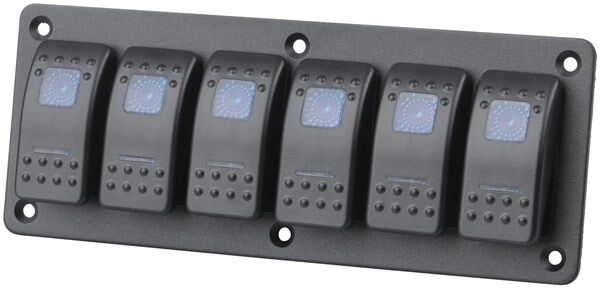

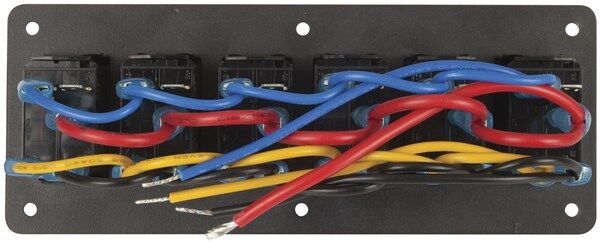

Straight forward installation and wiring, with just four connections - everything else is pre-wired! Then all you need to do is connect your various peripheral devices. Switches are rated at 20A for a 12V system (10A for 24V) up to a maximum 45A per panel. The LED illumination is powered separately, so you can run it through a switch or dimmer too.

Features:

  • Easy installation
  • High quality switches
  • Blue LED illumination

Specifications:

  • Switch Rating: 12VDC @ 20A, 24VDC @ 10A
  • Panel Rating: 45A
  • DC Current rating : 45A
  • DC Voltage : 12V
  • Nominal Voltage : 12V, 12V
  • Type : 5mm Standard LED
  • Illuminnation Colour : Blue
  • Connection : Spade Terminals
  • Illumination Position : Top
  • Width : 70mm
  • Height : 179mm
  • Switch Type : Rocker
  • Switch Function : Locking On/Off
  • Switch Connection : Spade Terminals

(SZ1925)

12 Months

SKU SZ1925
Model # SZ1925
Barcode # 9319236747780
Brand BOURNE
Unit Of Measure each
