HEX11WP-TX - HDMI Wall Plate HDBaseT™ Transmitter - HDMI, RS-232 and IR up to 70m (4K up to 40m)

Description

Blustreams HEX11WP-TX HDMI wall plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0).

The HEX11WP-TX has been designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.

Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Extends HDMI at 1080p up to a distance of 70m

• Supports all known HDMI audio formats including DolbyTrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

• Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products

• Bi-directional RS-232 pass through

• Supports IR pass-through to HDBaseT™ Receiver /Matrix device

• Compatible with all Blustream HDBaseT™ Receiver/ Matrix products *

• Magnetic faceplate surround allowing both UK & EUbackbox compatibility

• HDCP 2.2 support

  * Technical performance is subject to the features supported on the connected HDBaseT™ device

Specifications

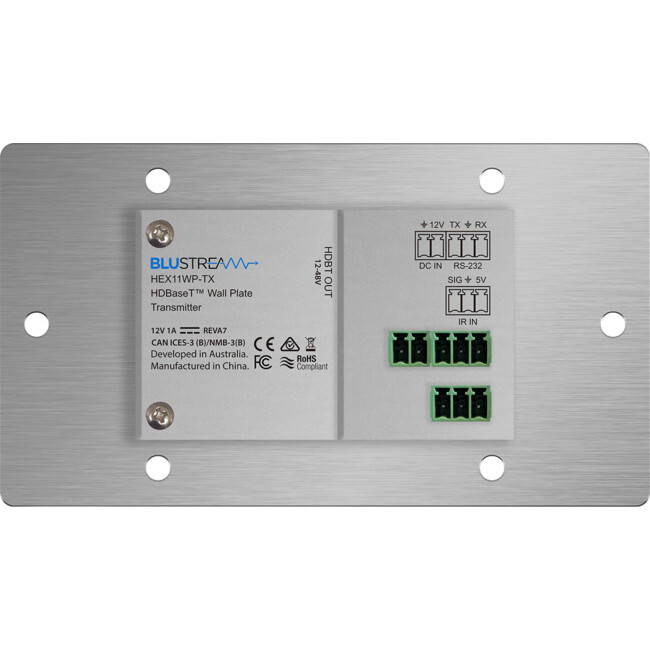

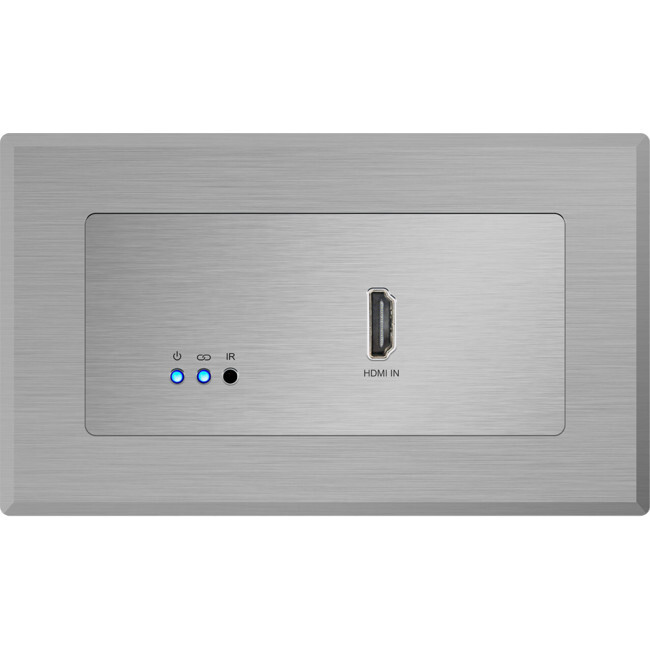

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female

• Video Output Connectors: 1 x HDBaseT™ RJ45 connector

• RS-232 serialport: 1 x 3-Pin Phoenix connector

• IR Input port: 1 x 3-Pin Phoenix connector

• Local power input: 1 x 2-Pin Phoenix connector

• Casing Dimensions (Wx H x D): 136mm x 76mm x 44mm (without faceplate)

• Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm

• Backbox Mounting Depth: 40mm (minimum) - not supplied

• Shipping Weight:

• Operating Temperature: 32°F to 104°F (-5°C to+55°C)

• Storage Temperature : -4°F to 140°F (-25°C to +70°C)

• Power Supply: 12V/1A DC

Box Contents

1 x HEX11WP-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate surround
1 xQuick Reference Guide
