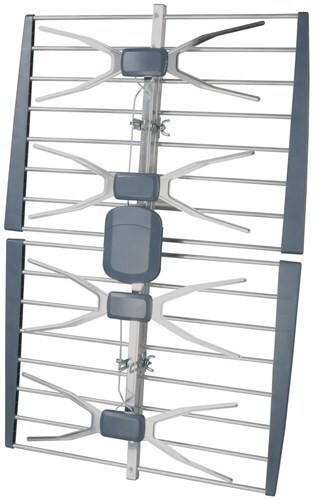

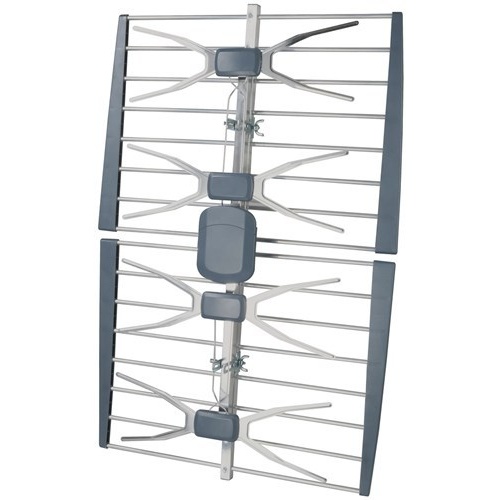

This heavy duty UHF phased array is ideal for problem digital reception areas where you may not have direct line of sight to the transmitter or there may be multipath issues due to reflected signals. It is capable of receiving either horizontal or vertical signals by changing the orientation of the heavy duty mounting bracket/U-bolt assembly. The LTE filter provides protection against 4G/LTE telephone communications.

Specifications:
Gain: 12.5dB
Wind load (N): 78
Frequency (MHz): 519-694
Beamwidth (Hor): +/-25 degrees
Weight(Kg): 1.65
Channels: 27-51
Beamwidth (Ver): +/-20 degrees
Size (mm): 815 x 545
F connector: yes
Front to Back ratio: 22dB
No of Elements: 4
Impedance: 75 Ohm

Specifications

Length : 815.0mm
Width : 545.0mm
Mounting Method : Pole Mount
Attachment / Securing Method : U-Bolt
Antenna Type : Phased Array
Usage Location : Outdoor
UHF Frequency Range : 519.0MHz, 694.0MHz
UHF Channel Range : 27.0ch, 51.0ch
UHF Gain : 12.5dB
Antenna Assembly : Bolt Together

(ED10578)

SKU ED10578
Model # LT3154
Barcode # 9319236712740
