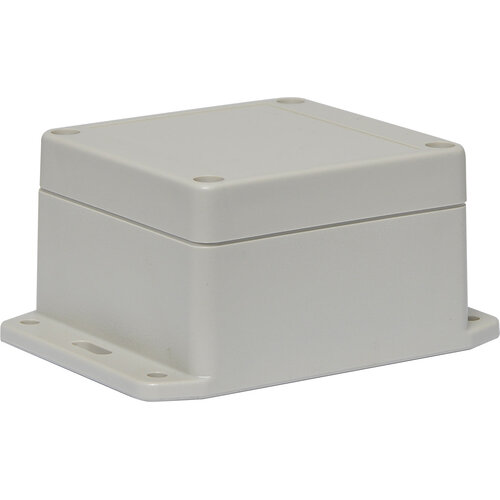

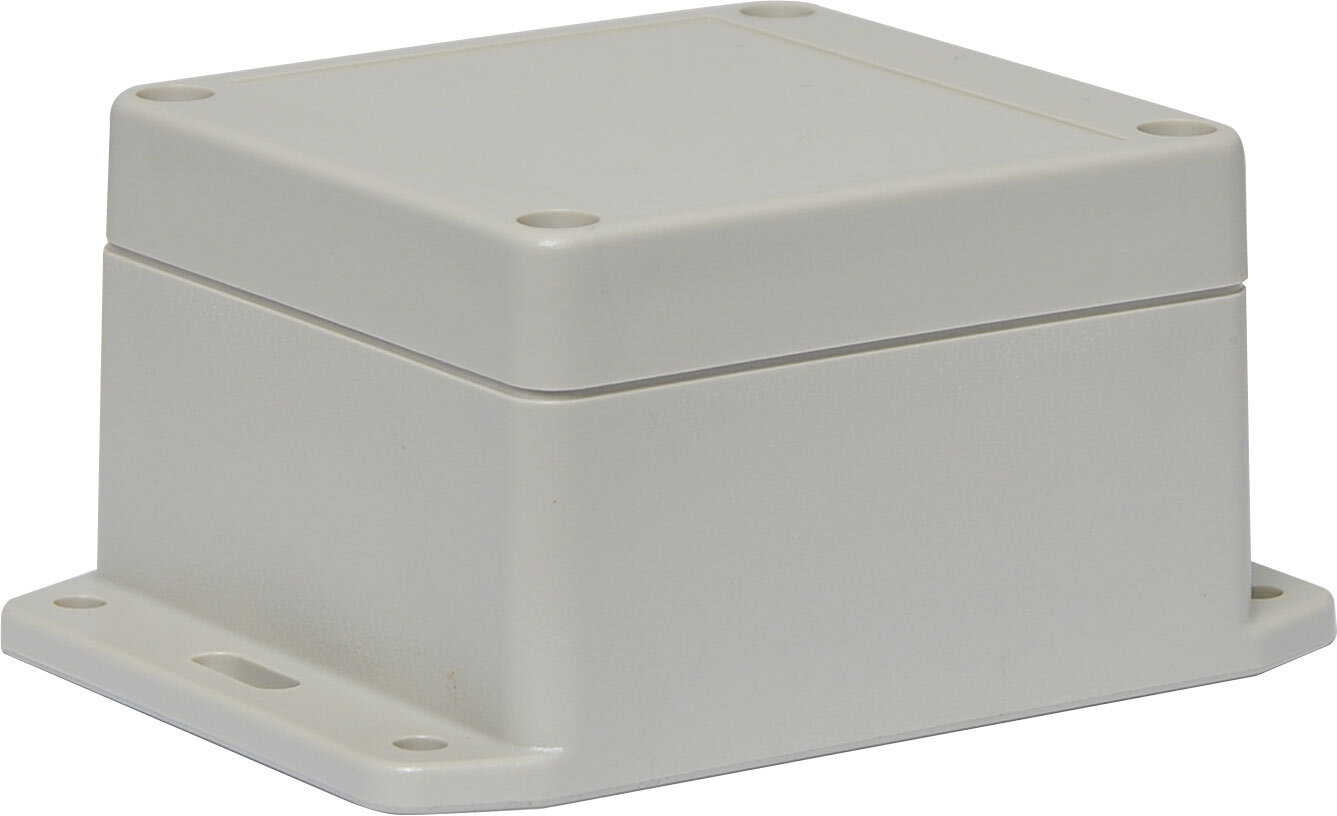

This sealed ABS flange mount enclosure is manufactured by Ritec and measures 85L x 80W x 55Hmm. Its includes mounting flanges for surface mounting. Supplied with neoprene lid sealing gasket. With the seal installed, these enclosures meet IP65 dust and hose proof standard. Supplied with a solid light grey lid. PCB mounting points are moulded into the enclosure base. These sturdy enclosures have 3mm thick walls and are rated to UL 94-HB (-30° to 80°C). Not UV stabilised.

  • External Dimensions: 85L x 80W x 55H mm.

Features

  • Meets IP65 Dust and Hose-proof standards
  • Brass screw thread inserts
  • Neoprene gasket seal
  • Moulded PCB mounting points
  • Manufactured from high impact ABS
  • Useable temperature range of -40°C to +80°C

warranty

  • We offer 12 months warranty on this product from its date of purchase

(H0302F)

SKU H0302F
Model # H0302F
Barcode # 9321758231456
Brand Ritec
