4 INPUTS FOXTEL HD MODULATOR

{tab Features}

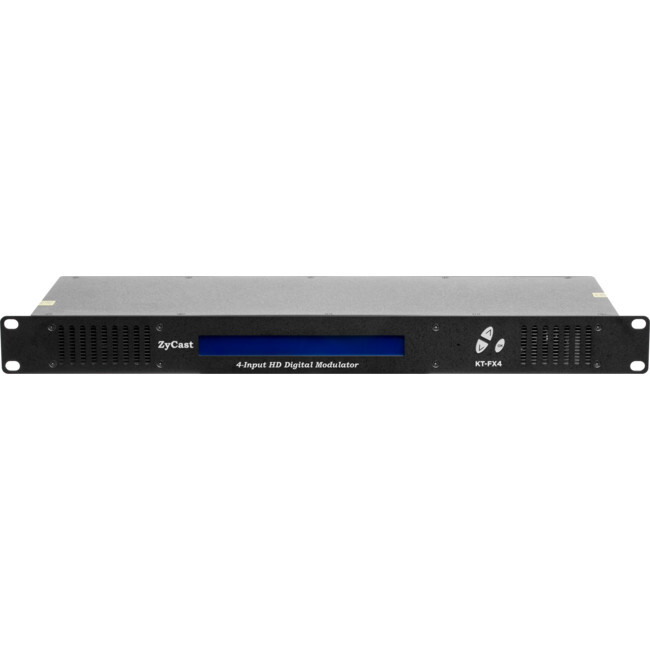

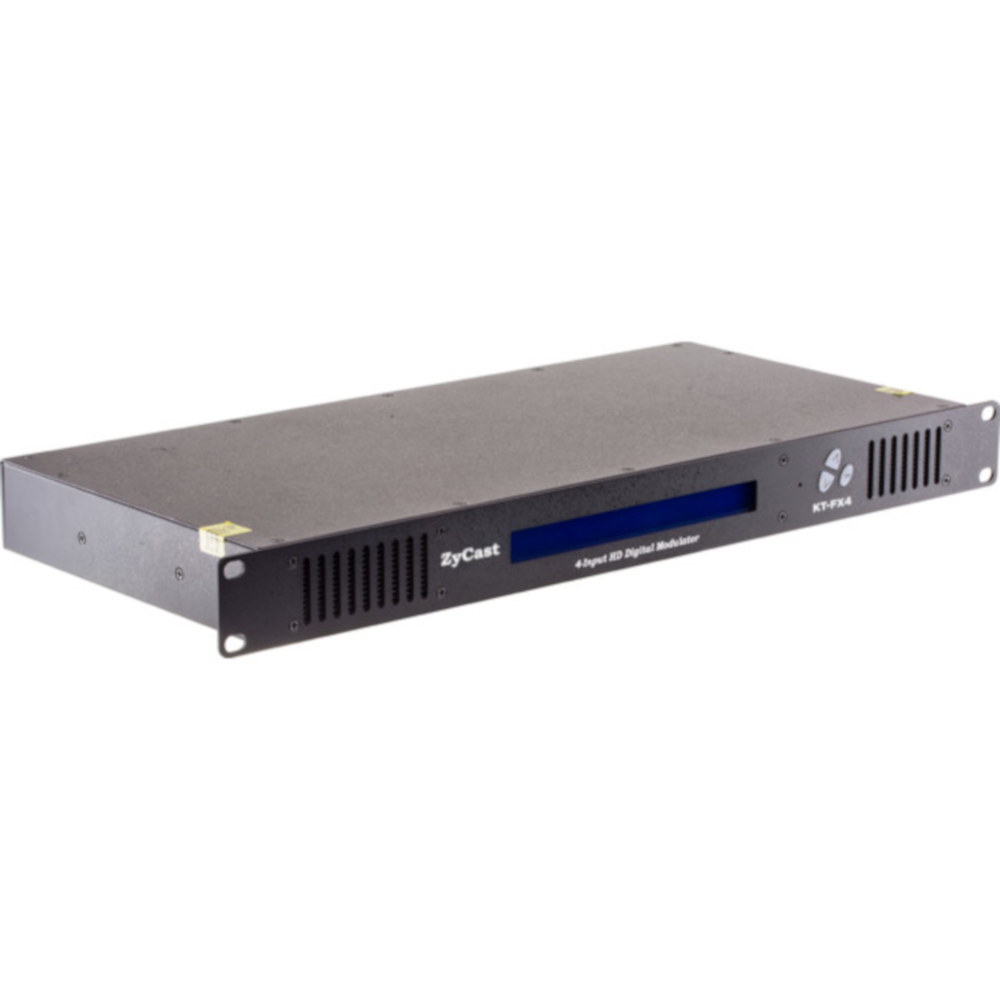

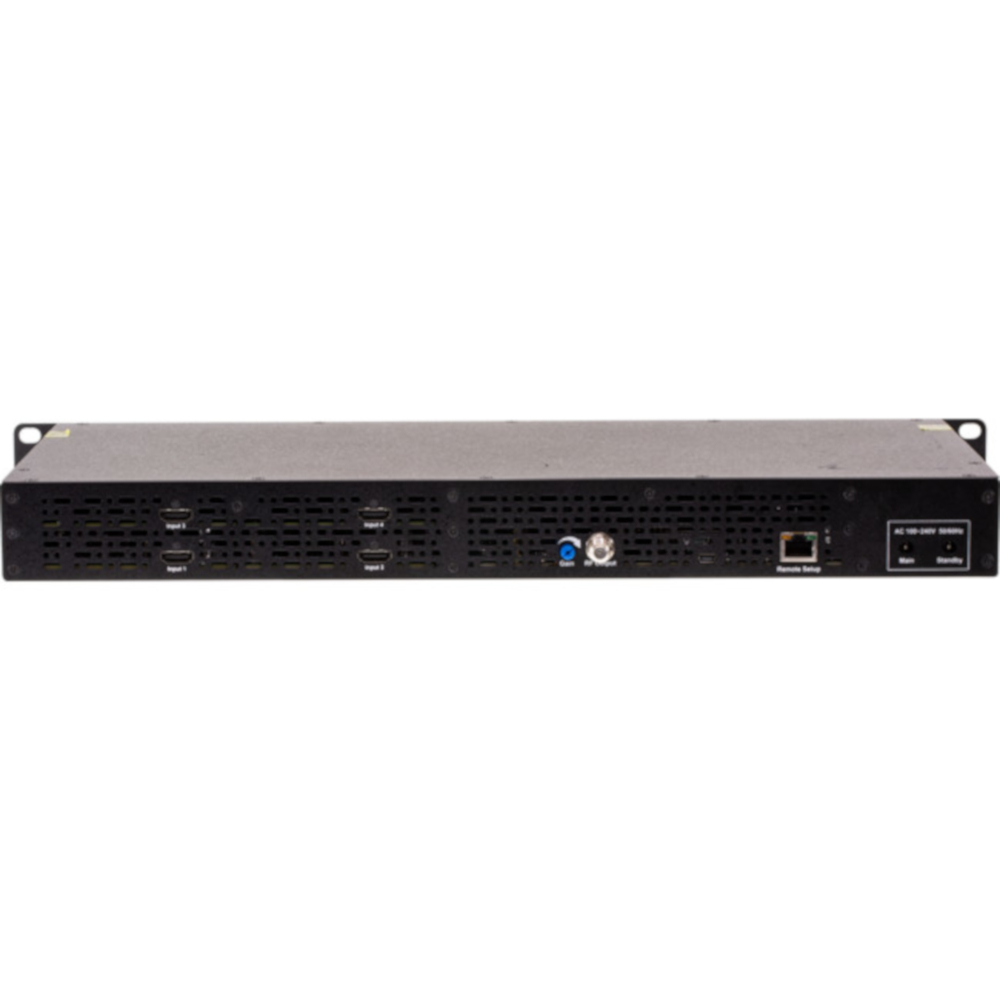

The KT-FX4 is a Foxtel-approved quad input (HDMI) HD digital modulator that encodes HDMI signal to any DTV channels.

Pre-programmed with a Foxtel-approved channel listing andwith an output level of 90dB and MER of >38dB, the KT-FX4 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute four crystal-clear HD pictures over newor existing coaxial cable.

Programming of the KT-FX4 is done via a web GUI and front LCD panel. It uses a frequency range of 177.5MHz to 816.5MHz (6 to 69).

{tab Specifications}

		KT-FX4
Foxtel Approved Number		F31061
Input
Number of inputs		4
Video input		HDMI
Video input level		0.7 - 1.4V (Peak to Peak)
Video mode		PAL
Audio input		Stereo
Audio input level		0.4 to 4.8V (Peak to Peak)
Output
Frequency Range		177.5 MHz to 816.5 MHz (6 to 69)
HDMI loop through		No
Output level		85dB
MER		>38dB
Delayed audio
Delayed audio output		No
Delay
Connection type
Modulation
Video Resolution		480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video compression		H.264 AVC(MPEG-4)
Audio compression		MPEG Layer II / AAC
Video bitrateSD		1Mbps to 9Mbps (Default 5Mbps)
Video bitrate HD		12Mbps to 24Mbps (Default 24Mbps)
LCN		AU (APN)
Carrier		2K / 8K
GI		1/32
FEC		7/8
Constellations		16 QAM / 64 QAM
Management / Programming
Front LCD		Yes
Web GUI		Yes
General
Power supply type		External
Power supply		2 x 12VDC 4AMP
Redundant PSU		Yes
Operating temperature		0c to +45c
Storage temperature		-0c to +60c
Dimensions		482mm x 208mm x 44mm
Weight		2.5kg
Warranty		3 years
