Features

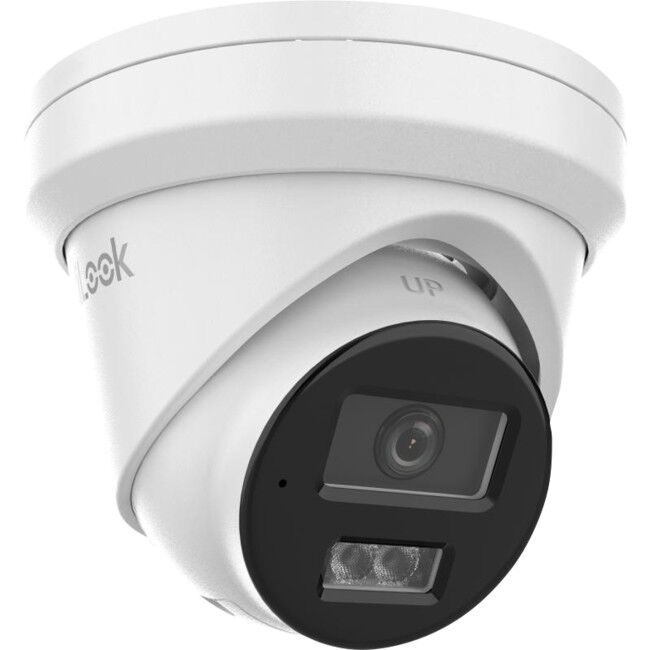

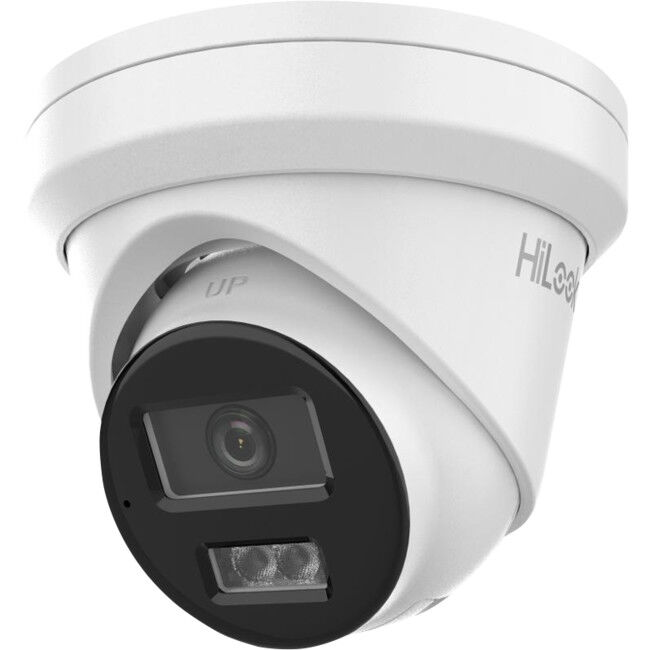

HiLook T282H-MU 8MP Turret Camera, Fixed 2.8mm, IR 30m, Mic

• High quality imaging with 8 MP resolution
• Supports Human and Vehicle Intelligent Detection
• Dual IR lights to enhance night vision
• Built-in microphone for real-time audio security
• Support on-board storage up to 512 GB
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology

Specifications

Specifications

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  Colour: 0.005 Lux @ (F1.6, AGC ON)
  B/W: 0 Lux with IR
• Shutter Time: 1/3s to 1/100,000s
• Day & Night: IR cut filter
• Angle Adjustment
  Pan: 0° to 360°
  Tilt: 0° to 75°
  Rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8mm and 4 mm optional
• Focal Length & FOV
  • 2.8mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
  • 4mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI

• DORI
  • 2.8mm, D: 79m, O: 31m, R: 15m, I: 7m
  • 4mm, D: 102m, O: 40m, R: 20m, I: 10m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850nm

Video

• Main Stream
  • 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 12.5fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

• 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Region Of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports), ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host:
  • Up to 32 users
  • 3 User Levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect
• Web Browser:
  • Plug-in Required live view: IE 10, IE 11
  • Local Service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥52dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-In Microphone: Yes
• Reset Key: Yes

Event

• Basic Event: Motion detection (supports alarm triggering by specified target types (human and vehicle), video tampering alarm, Motion detection (supports alarm triggering by specified target types (human and vehicle), video tampering alarm, exception
• Smart Event: Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)
• Linkage: Upload to FTP/memory card (−F), send email, notify surveillance center, trigger recording (−F), trigger capture

General

• Power:
  • 12V DC ±25%, 0.41 A, Max. 5W, Ø5.5mm coaxial power plug, reverse polarity protection
  • PoE: IEEE 802.3af, Class 3, Max. 6.5W
• Material: Metal
• Dimensions: Ø127.3mm × 95.9mm (Ø5.0″ × 3.8″)
• Package Dimensions: 150mm × 150mm × 141mm (5.9″ × 5.9″ × 5.6″)
• Weight: Approx. 600g (1.3lb.)
• With Package Weight: Approx. 909g (2.0lb.)
• Storage Conditions:
  • −30°C to 60°C (−22°F to 140°F)
  • Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions:
  • −30°C to 60°C (−22°F to 140°F)
  • Humidity: 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

• EMC:
  • CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
  • RCM: AS/NZS CISPR 32: 2015
  • IC: ICES-003: Issue 7
• Safety: UL: UL 62368-1
• CB: IEC 62368-1: 2014+A11
• CE-LVD: EN 62368-1: 2014/A11: 2017
• BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment:
  • CE-RoHS: 2011/65/EU
  • WEEE: 2012/19/EU
  • Reach: Regulation (EC) No 1907/2006

• Protection: IP67: IEC 60529-2013
