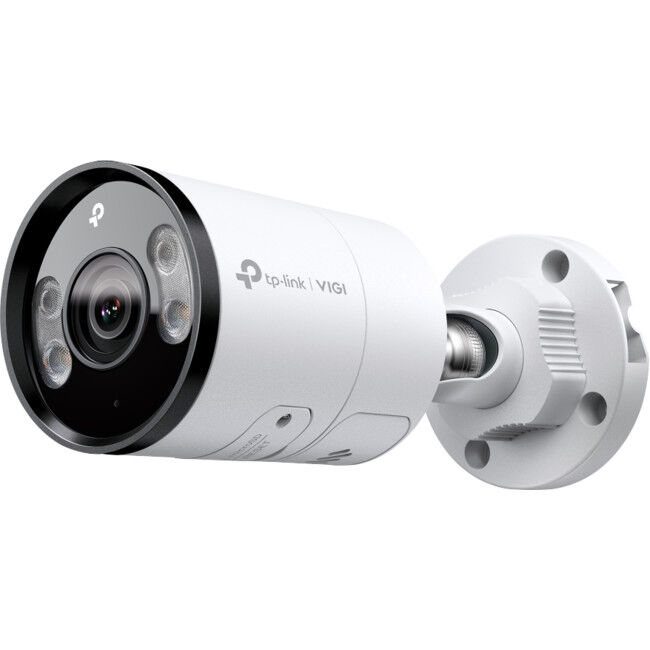

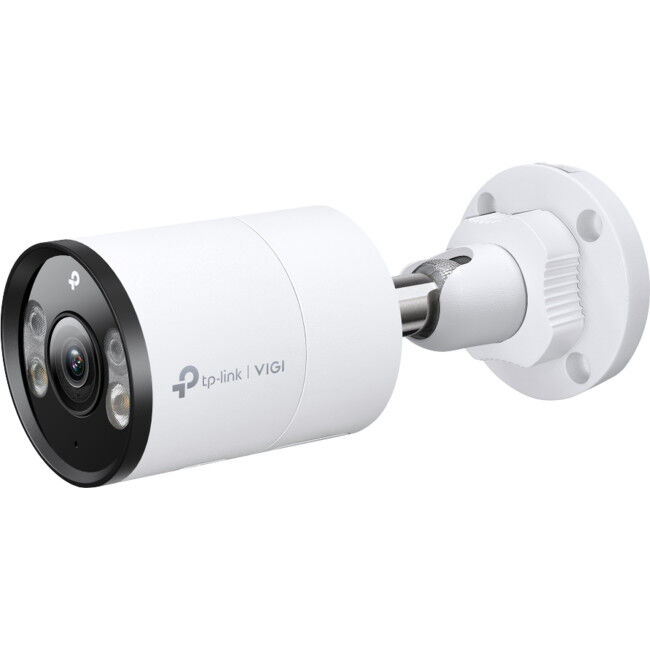

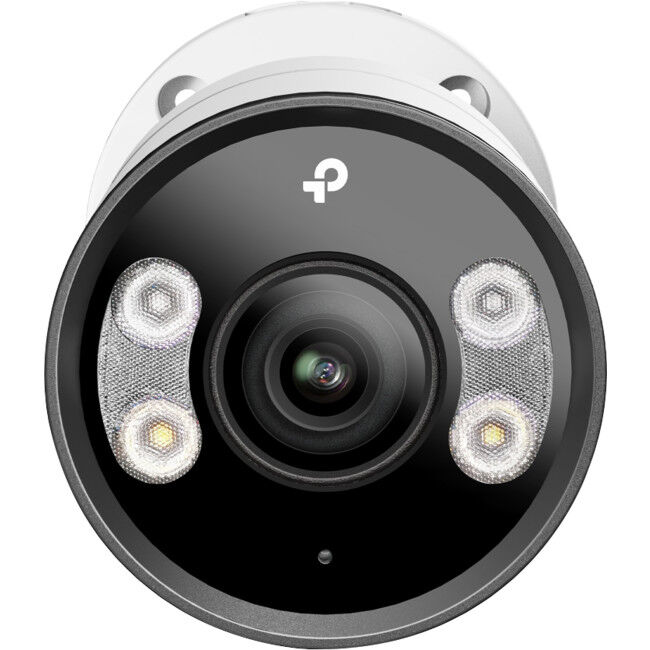

8MP OUTDOOR BULLET NETWORK CAMERA

Overview

Specifications

CAMERA	Image Sensor	1/2.7″ Progressive Scan CMOS
	Shutter Speed	1/3 to 1/10000s
	Slow Shutter	Yes
	Minimum Illumination	0.005 Lux; 0 Lux with IR/White light
	Day/Night Mechanism	IR Cut Filter
	Day/Night Switch	Unified / Scheduled / Auto
LENS	Type	Fixed Focal Lens
	Focal Length	2.8/4mm
	Aperture	F1.6
	FOV	2.8 mm: Horizontal FOV: 111.4° Vertical FOV: 58.8° Diagonal FOV: 134° 4 mm: Horizontal FOV: 91.5° Vertical FOV: 46.1° Diagonal FOV: 109.6°
	Lens Mount	M12×P 0.5
	DORI Distance	2.8mm: Detect: 85m (278 ft) Observe: 35m (116 ft) Recognise: 17m (56 ft) Identify: 8m (28 ft) 4mm: Detect: 107m (350 ft) Observe: 44m (146 ft) Recognise: 21m (70 ft) Identify: 11m (35 ft)
	Angle Adjustment (Manual)	Range Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360°
ILLUMINATOR	IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
	White LED	Quantity: 2 Range: 30m
	Illuminator ON/OFF Control	Auto / Scheduled / Always On / Always Off
VIDEO	Max. Resolution	3840 × 2160
	Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps.
	Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 704×576,640×480, 352×288, 320×240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps.
	Bit Rate Control	CBR, VBR
	Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
	H.264 Type	High Profile
	H.264+	Main Stream Supported
	H.265 Type	Main Profile*¹
	H.265+	Main Stream Supported*¹
	Video Bit Rate	Main Stream: 256Kbps to 6Mbps Sub-Stream: 64Kbps to 512Kbps
IMAGE	Image Settings	Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software
	Image Enhancement	BLC / 3D DNR / HLC / SmartIR
	Wide Dynamic Range	120dB
	SNR	≥52dB
	Image Parameters Switch	Yes
	Privacy Mask	Up to 4 Masks
	ROI	1 Region
	OSD Setting	Yes
AUDIO	Audio Communication	Two-Way Audio
	Audio Input	Yes
	Audio Output	Yes
	Audio Compression	Yes
	Audio Sampling Rate	8KHz
	Environment Noise Filtering	Yes
	Audio Bit Rate	64Kbps (G.711 alaw)
NETWORK	Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
	ONVIF	Yes
	API	Open Network Video Interface (Profile S)
	Simultaneous Live View	3 Main Streams & 3 Sub-Streams
	Client	VIGI App, VIGI Security Manager, Web UI, VIGI VMS
	Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
	Cloud	Yes
	Security	Password Protection HTTPS Encryption IP Address Filter Digest Authentication
ALARM AND EVENT MANAGEMENT	Smart Event	Human & Vehicle Classification Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection Smart Frame People Detection Vehicle Detection
	Basic Event	Motion Detection Video Tampering Detection Exception (Illegal Login) Scene Change Detection
	Alarm Linkage	Memory Card Video Recording Message Push Audible Warning White Light Flashing
	Linkage Method	N/A
	Output Notification	Message Push
INTERFACES	Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE
	Alarm	N/A
	Reset Button	Yes
	Power	DC Power Port
	On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512GB*²
	Built-in Microphone	Yes; Records Anything Going on within a 15ft Radius of the Camera
	Built-in Speaker	Yes
	Audio	N/A
GENERAL	Material	Metal
	Power Supply	12V DC ±5%, Max. 10.5W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 11.5W
	Protection	IP67
	Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC
ENVIRONMENT	Operating Temperature	−30~60°C
	Storage Temperature	−40~60°C
	Operating Humidity	95% or Less (Non-Condensing)
	Storage Humidity	95% or Less (Non-Condensing)
PACKAGING	Net Weight	0.525kg
	Product Dimensions (L×W×H)	74mm × 184mm × 74mm
	Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories

*1: Tile encoding is automatically enabled in H.265 mode when the horizontal resolution exceeds 2688. If a third-party NVR doesn't support tile encoding, it cannot enable H.265 mode. For optimal performance, we recommend using VIGI NVR with VIGI cameras.

*2: SD card is not included in the package.

(C385-4MM)
