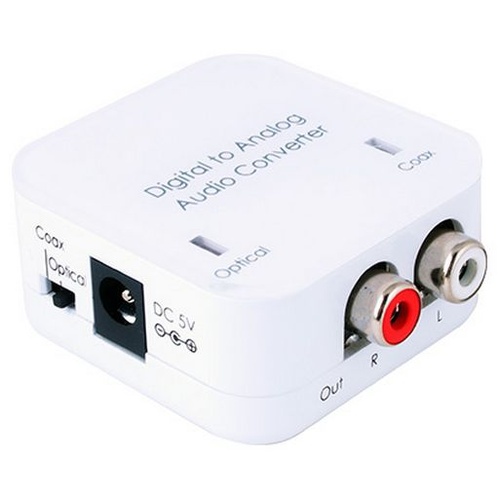

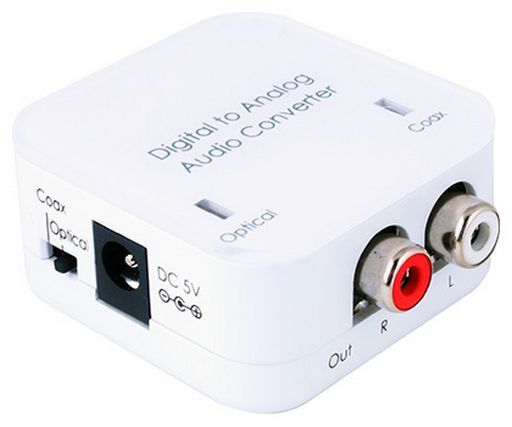

Cypress Optical & Coaxial PCM to Stereo RCA DAC Audio Converter 24Bit 192kHz

Compact unit with stereo audio output converted from Standard 16 bit PCM (Digital) Input is Toslink Optical or RCA PCM connections. Compatible with DCT4 and LPCM Stereo CD players. Accepts sampling frequencies 32KHz, 44.1KHz, 48KHz, 96KHz, 196KHz. White 42x40x22mm compact

• Supports digital audio input (Coaxial/Optical)
• Analog audio output (Right/Left) RCA line level
• Integrated digital interpolator filter and Digital to Analog Converter
• Supports LPCM & PCM non-compression digital stereo audio input.
• Compact size and easy to install, 5V powerpack included.
• Supports SPDIF 24 bits of data for the left and right channel.

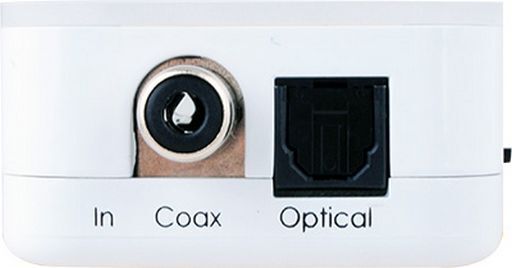

Coaxial and Optical: SPDIF LPCM 2 CH, 24 bit.
Sample Frequency: 32kHz, 44.1 KHz, 48 KHz, 88.2KHz, 96 KHz, 176.4KHz up to 192KHz

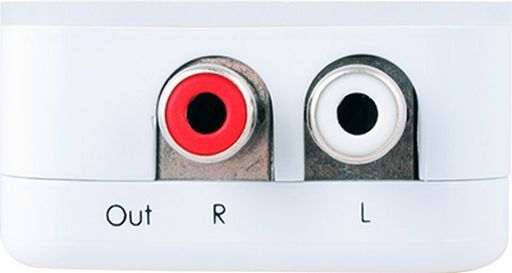

Output RCA: R/L stereo
Output Level: 2Vrms
Output Impedance: 600?
Power Supply 5V Included
42x40x22mm.
