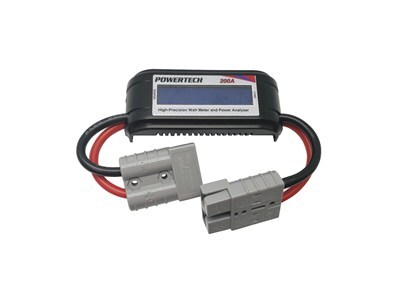

• This exceptional trouble shooting device is not just a watt meter it is an All-in-one power meter, volt meter, amp-hour meter, ammeter and energy meter.
  • It’s designed for systems less than 60V and currents up to 200A (Peak).
  • This genius device comes with Anderson connectors on both source and load end which makes it an easy fit into most high current DC set ups.
  • It can check charge going to a battery from battery charger or alternator, solar panel output, charge controller output, health and performance of batteries, evaluate charging efficiency
  • or measure power and energy consumption of any load device with a battery.
  • The Watt Meter only requires a tiny 7mA draw to operate making little difference to power production during usage.
  • Ideal for cars, boats, caravans, off-grid installations, Wind, solar installations, and so much more.
Features:
  • Anderson type 50-Amp connectors
  • 75A continuous / 200A Peak
  • Up to 60VDC compatibility
  • Accurate amps, volts, watts, amp-hours, watt-hours, peak amps, minimum volts (sag), peak watts
Specifications:
  • Reads:  6V - 60V (0V - 60V with optional auxiliary battery).
  • Measures:
  • Current - 0-200A @ 0.01A Resolution
  • Voltage - 0-60VDC @ 0.01V Resolution
  • Power - 0-6554W @ 0.1W Resolution
  • Watt Hours - 0-650kWh @ 0.1Wh Resolution
  • Ampere Hours - 0-6554Ah @ 0.01Ah Resolution
  • Cable: 8AWG
  • Display: 16 x 2 backlit LCD Display
  • Dimensions:  110(W) x 45(H) x 26(D)mm (Excluding Cables)
  • Net Weight:  150g
  • Packaged Volume : 0.72l
  • Packaged Weight : 0.24kg
  • Packaged Length : 10.7cm
  • Packaged Width : 14.9cm
  • Packaged Height : 4.5cm
  • Width : 110mm
  • Height : 45mm
  • Depth : 26mm
  • Weight : 150g

(MS6192)

SKU MS6192
Model # MS6192
Barcode # 9319236735367
Brand Powertech
Unit Of Measure each
