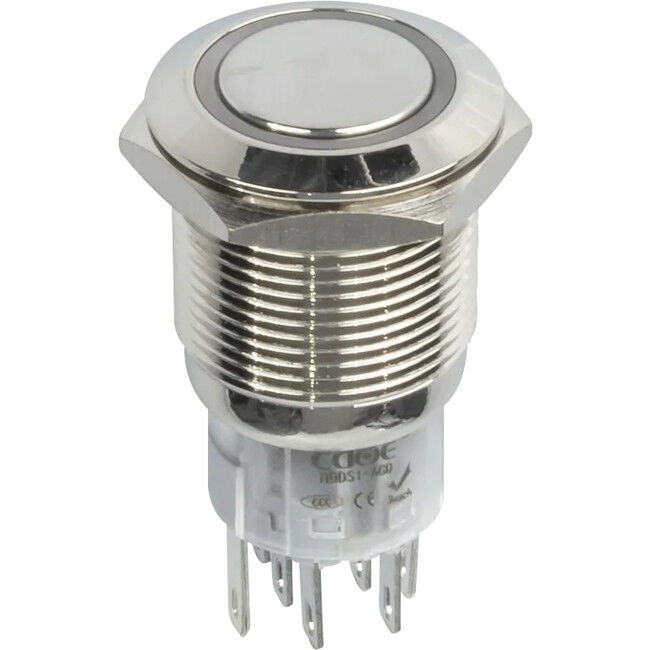

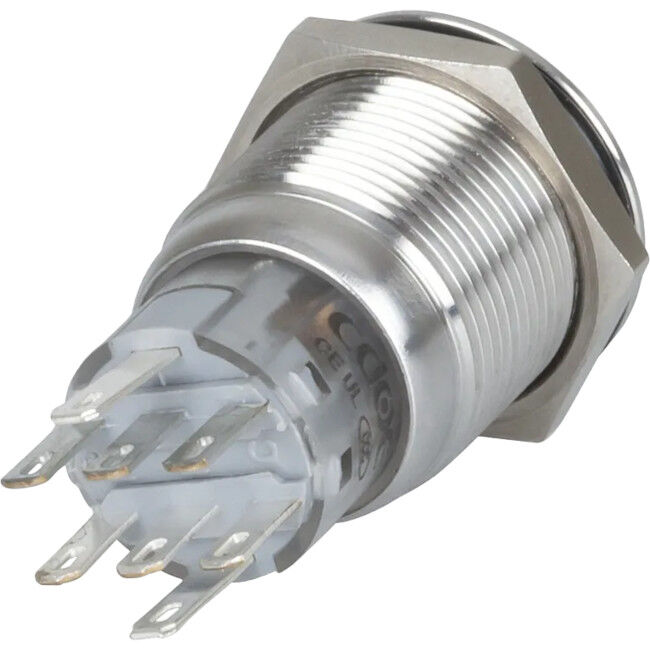

Red 19mm IP67 Metal Pushbutton Momentary Switch with Illuminated Ring

A durable and stylish stainless steel switch with LED illumination.

  • DPDT momentary action
  • Dust and waterproof to IP67
  • 12V LED illumination
  • 19-19.5mm mounting hole

Three colours to choose from:

  • Red: SP0800
  • Blue: SP0802
  • Green: SP0804





Specifications



AC Current Rating 5A
AC Voltage Rating 250V
DC Voltage 12V
Nominal Voltage 12V, 12V
Illumination Colour Red
Connection Spade Terminals
Length 40mm
Diameter 19mm
Weight 18g
Packaged Volume 0.08l
Packaged Weight 0.02kg
Packaged Length 6.4cm
Packaged Width 5cm
Packaged Height 2.4cm
Switch Type Push button
Pole Throw Type DPDT
Poles / Contacts 2 pole
Throws / Positions 2pos
Switch Function Single Action Momentary
Switch Connection Spade Terminals
Switch Colour Coded Red
Dimension Details Mounting Hole
Diameter 22mm
Availability Stocked item

(SP4142)

SKU SP4142
Model # SP4142
Barcode # 9319236958766
