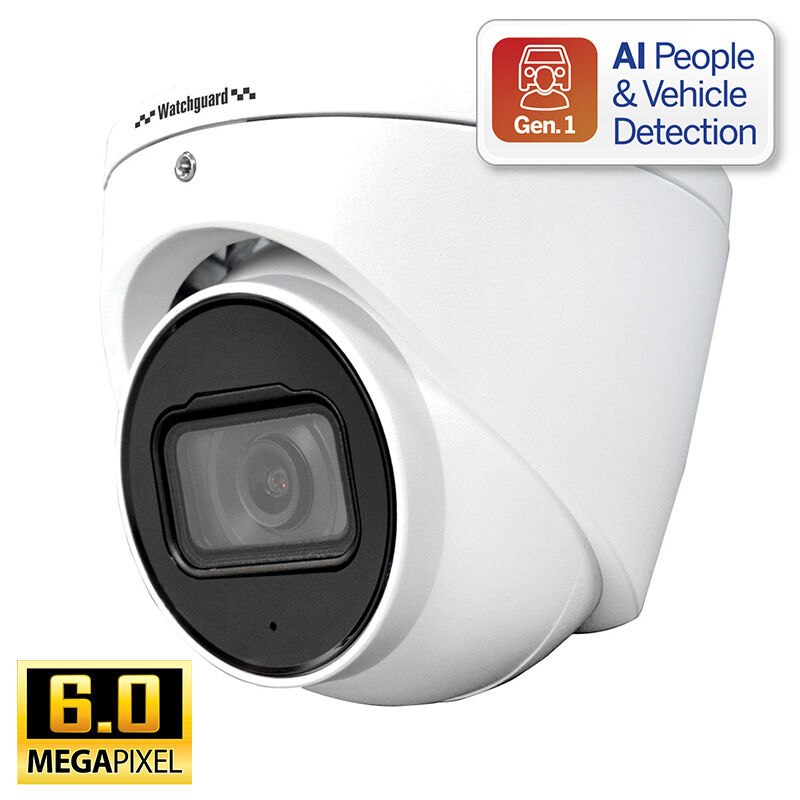

LA-Series 6.0MP Fixed AI Turret Camera

The VSIPL-6DIRG-I from Watchguard delivers great performance for amazing value. Available in 6.0MP, this model now features AI human and vehicle detection capabilities (Gen.1) to improve CCTV event notifications and make playback searching a breeze.

Features

• Stream up to 6.0MP (3072 x 2048) at 20fps
• 2.8mm fixed lens with 111° horizontal viewing angle
• Up to 30m infrared range; true day/night (auto ICR)
• H.265 encoding for efficient storage & streaming
• Built-in microphone and microSD slot for edge recording
• AI human/vehicle detection up to 6m/9m (2.8mm lens)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• Power via 12VDC or Power over Ethernet (802.3af)
• IP67 weather rated full-metal housing for outdoor use

Specifications

• Image Sensor: 1/2.7" 6.0MP Progressive Scan CMOS
• Max. Resolution: 6.0 Megapixel
• Effective Pixels; 3072 (H) x 2048 (V)
• RAM / ROM: 256MB / 128MB
• Min Illumination: 0.007 Lux/F1.6 (Color 1/3s-1)
• S/N Ratio: > 56dB
• Infrared System: 1 x Infrared LED, 30m range, Auto/manual on/off control
• Lens Type: Fixed
• Lens / Iris: 2.8mm F1.6 Lens
• Field of View: Horizontal: 111°, Vertical: 58°
• Focus: Fixed, 1.1m Close Focus Distance
• Resolution: 6.0MP (3072 x 2048) to CIF (352 x 288)
• Frame Rate (Main): 6.0MP (1 ~ 20fps), 4.0MP (1~25fps)
• Frame Rate (Sub): D1 (1 ~ 25fps)
• Frame Rate (Third): N/A
• Video Compression: H.265 / H.264 / H.264B / MJPEG
• Bit Rate: H.264: 32kbps ~ 8192kbps / H.265: 12kbps ~ 8192kbps
• Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
• Day/Night: Auto (ICR) / Color / B&W
• Lighting Compensation: HLC / BLC / WDR (120dB)
• Smart Scene Adaptive (SSA): N/A
• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional custom
• Gain Control: Auto / Manual
• Noise Reduction: 3D DNR
• Picture Control: Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
• Audio Interface: Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; G.723; PCM
• Edge Storage: MicroSD Card (up to 256GB) / NAS / FTP/ SFTP
• Interoperability: ONVIF, CGI, P2P, Milestone, Genetec
• Power Supply: 12VDC / PoE (802.3af)
• Power Consumption: <7.2W
• Operating Conditions: -40° ~ +60° C / Less than 95% RH
• Ingress Protection: IP67
• Vandal Resistance: N/A
• Series: LA Series
• Camera Type: Turret
• Housing: Metal
• Pan/Tilt/Rotation: Pan: 0° ~360 °; Tilt: 0° ~78°; Rotation: 0° ~360°
• Dimensions: Ø106mm x 93.6mm
• Net Weight:0.42kg
