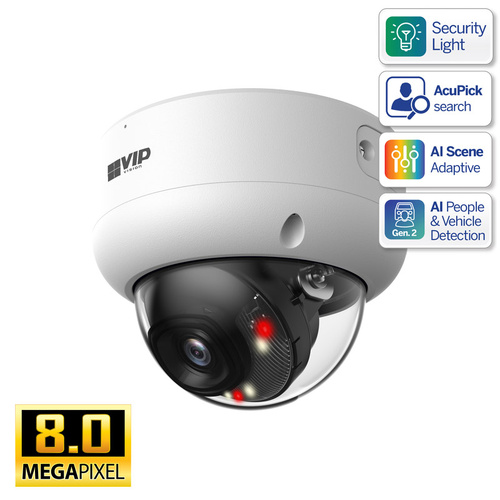

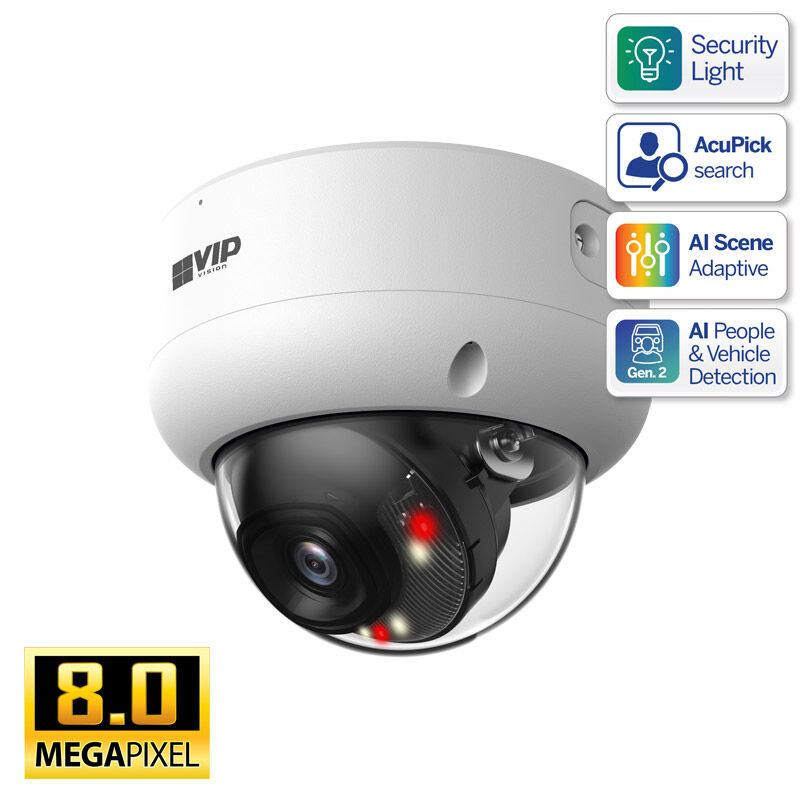

Professional AI Series 8.0MP Fixed Vandal Dome

The Professional AI CCTV camera range combines the latest in AI surveillance and a security light into one housing. During AI people and vehicle detection events, the camera will trigger a warm LED light to deter intruders and capture footage in full colour. Quickly search and track people & vehicles throughout entire sites across all Acupick CCTV cameras in your security system.

Camera features

Stream up to 8.0MP (3840 x 2160) at 25fps
2.8mm fixed lens with 110° viewing angle
Up to 30m infrared range; true day/night (auto ICR)
Intelligent search across all Acupick cameras
Warm LED light triggers on person/vehicle detection
H.265 encoding for efficient storage & streaming
MicroSD slot for recording at the edge up to 512GB
AI powered perimeter protection & smart motion detection (SMD 4.0)
Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
AI weather and anti-flicker scene self-adaption
IP67 weather rated housing for outdoor use

Specifications

Camera

Image Sensor - 1/2.8’’ 8.0MP Progressive Scan CMOS - Max. Resolution - 8.0 Megapixel
Effective Pixels - 3840 (H) x 2160 (V)
RAM / ROM - 1GB / 256MB
Min Illumination - 0.007 Lux/F1.4 (Color), 0.0007 Lux/F1.4 (B/W), 0 lux (illuminator on)
S/N Ratio - > 56dB
Infrared System - 2x warm LED light, 2 x Infrared LED, 30m range, Auto/manual on/off control

Lens

Lens Type - Fixed
Lens / Iris - 2.8mm F1.4 Fixed Lens
Field of View - Horizontal: 110°, Vertical: 58°
Focus - Fixed / 1.4m Min. Focus Distance

DORI

Detect (25px/m) - 85m
Observe (63px/m) - 34m
Recognise (125px/m) - 17m
Identify (250px/m) - 8m

Video

Resolution - 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main) - 8.0MP (1 ~ 25fps)
Frame Rate (Sub) - 1080p (1 ~ 25fps)
Frame Rate (Third) - 1080p (1 ~ 25fps)
Video Compression - H.265 / H.264 / H.264H / H.264B / MJPEG / Smart H.265+ / Smart H.264+ / AI H.265 / AI H.264
Bit Rate - H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Bit Rate Control - Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night - Auto (ICR) / Color / B&W
Lighting Compensation - BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA) - Yes
White Balance - Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control - Auto/Manual
Noise Reduction - 3D DNR
Picture Control - Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Intelligent Functions - Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Perimeter Protection - Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection - N/A
Face Attributes - N/A
People Counting - N/A
Heat Map - N/A
Event Trigger - Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search - Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Network

Ethernet - RJ-45 (10/100Base-T)
Protocol - IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Streaming Method - Multicast
Max. User Access - 20 Users (Total bandwidth: 64MB)

Interface

Video Interface - N/A
Audio Interface - 1 input (RCA Port) / 1 output (RCA Port) / Built-in Mic / Audio Compression - G.711a; G.711Mu; PCM; G.726; G.723
Alarm Interface - 1 channel in: 5mA 3-5VDC/ 1 channel out: 300mA 12VDC
RS485 - N/A
Edge Storage - MicroSD Card (up to 512GB) / NAS
Interoperability - ONVIF / P2P / CGI

Environmental
