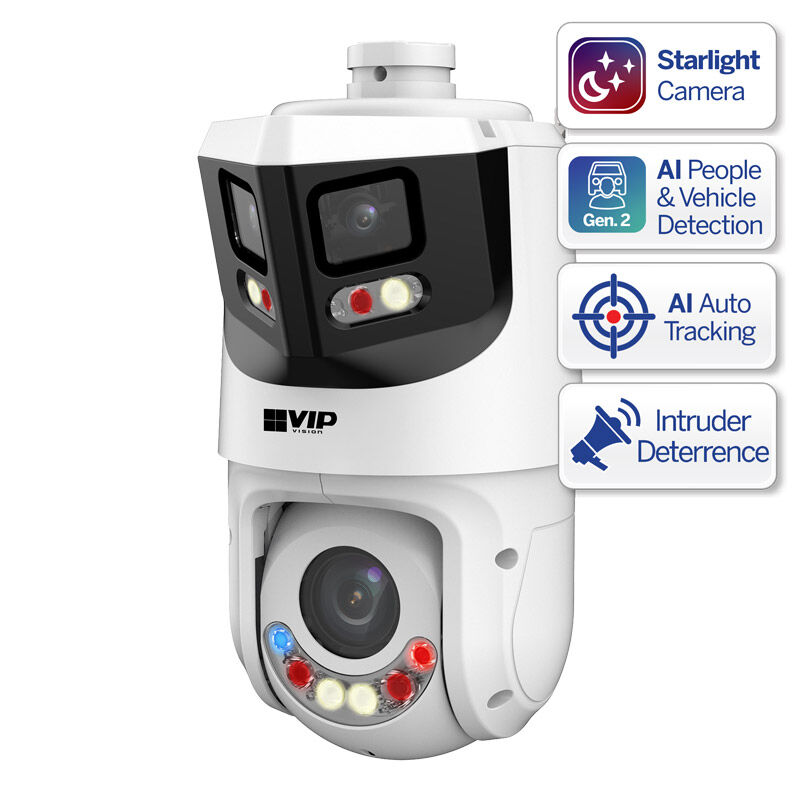

VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret)

VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret) VSIPPTZ-4P8X

Deliver comprehensive surveillance for large sites with this two-in-one CCTV camera. Multi Vision combines the wide-angle coverage of a 180º turret with the long-range zoom of a PTZ. Once set up, upon a human or vehicle detection event, the PTZ can use auto tracking to track the subject, while the panoramic camera continues to capture the whole scene. The Multi Vision camera can also be configured to trigger a white LED spotlight for security lighting, a flashing blue/red LED strobe and a loud siren with programmable message/tone, to deter intruders.

Features

Stream up to 8.0MP (4096 x 1860) at 25fps (Turret) and 4.0MP (2560 x 1440) at 25fps (PTZ)
Dual wide-angle lenses for complete site coverage and 25x zoom lens for detailed shots
Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
Auto tracking via people/vehicles AI rules
24/7 Colour low light footage as low as 0.005lx
IP67 weather rated housing for outdoor use
This model requires 2 available channels when recording to an NVR

Specifications

Camera

Image Sensor : Turret: 1/2.7"CMOS / PTZ: 1/2.8"CMOS
Max. Resolution : 8.0 Megapixel
Effective Pixels : Turret: 4096 (H) x 1860 (V) / PTZ: 2560 (H) x 1440 (V)
RAM / ROM : Turret: 2GB/4GB / PTZ: 1GB/4GB
Min Illumination : Turret: 0.005 lux/F1.4 (Color, 30 IRE); 0.0005 lux/F1.4 (B/W, 30 IRE); 0 lux (Illuminator) / PTZ: 0.005 lux/F1.6 (Color, 30 IRE); 0.0005 lux/F1.6 (B/W, 30 IRE); 0 lux (Illuminator)
S/N Ratio : N/A
Infrared System : 2 x Infrared LED, 30m range by turret, 50m range by PTZ, Auto/manual on/off control

Lens

Lens Type : Motorised Varifocal
Lens / Iris : Turret: 2.8mm F1.0 Fixed Lens / PTZ: 5 ~ 125mm F1.6 ~ F3.6 Motorised Lens with Auto Iris
Field of View
Turret: H:180°, V:86° / PTZ: H:52°~3.0°, V:40°~2.2°, D:63°~3.7°
Focus : Turret: Auto Focus / 0.6m Min. Focus Distance / PTZ: Auto/Semi-Auto/Manual Control, 0.1 ~ 0.5m Min. Focus Distance

DORI

Detect (25px/m) : Turret: 56m / PTZ: W: 100m, T; 2500m
Observe (63px/m) : Turret: 22m / PTZ: W: 40m, T: 1000m
Recognise (125px/m) : Turret: 11m / PTZ: W: 20m, T: 500m
Identify (250px/m) : Turret: 6m / PTZ: W: 10m, T: 250m

PTZ

Pan / Tilt Range : Pan: 0 ~ 360° (endless) / Tilt: -15 ~ 90° / Auto-flip 180°
PTZ Speed : Preset: Pan: 0.1°~ 180°/s, Tilt: 0.1°~ 90°/s, Manual: Pan: 0.1°~ 180°/s, Tilt: 0.1°~ 90°/s
Modes / Presets : Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, 5 Auto Scan
Start-up Action : Auto-restore to previous PTZ/lens status

Video

Resolution : Turret: 8MP (4096 x 1860) to VGA (640 x 480) / PTZ: 4MP (2560 x 1440) to D1 (704 x 576/704)
Frame Rate (Main) : Turret: 8MP (1 ~ 25fps) / PTZ: 4MP (1 ~ 25fps)
Frame Rate (Sub) : Turret: 1024 x 448 (1 ~ 25fps) / PTZ: D1 (1 ~ 25fps)
Frame Rate (Third) : -
Video Compression : Smart H.265+ / H.265 / Smart H.264+ / H.264B / H.264M / H.264H / MJPEG (Sub Stream 1)
Bit Rate : Turret: H264: 128 ~ 16,384 kbps, H265: 51 ~ 13,312 kbps / PTZ: H264: 96 ~ 16,384 kbps, H265: 38 ~ 10,240 kbps
Bit Rate Control : Constant Bit Rate (CBR) / Variable Bit Rate (VBR)
Day/Night : Auto (ICR) / Color / B&W / Electronic
Lighting Compensation : Turret: BLC / HLC / Digital WDR / PTZ: BLC / HLC / True WDR (120dB)
Smart Scene Adaptive (SSA) : N/A
White Balance : Auto / Indoor / Outdoor / Tracking / Manual / Sodium Lamp / Natural / Street Lamp
Gain Control : Auto / Manual / Gain Prio
Noise Reduction : 2D / 3D
Picture Control : Flip 180°

Artificial Intelligence

Face Recognition : N/A
Face Capture : N/A
Perimeter Protection : Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm Classification; linkage tracking
Auto Tracking : Auto-tracking 3.0 for Person and Vehicle Tracking
Metadata : Supports human, motor vehicles and non motor vehicle search. Supports face image capture and footage search by face image & facial attributes
People Counting : N/A
Heat Map : N/A

Intelligent Video Surveillance (IVS)

IVS Functions : Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation (detail only), Privacy Masking (24 zones), Defog
Event Triggers : Filter motion detection alarms, recognises humans and vehicles from other moving objects
Region of Interest : Support
Optical Defog : Support
Digital Zoom : 16x
Privacy Masking : N/A
Image Stabilisation : Support

Network

Ethernet : RJ-45 (100/1,000 Base-T)
Protocol : HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjur; NFS
Streaming Method : Unicast / Multicast
Max. User Access : 20

Interface

Video Interface : N/A
Audio Interface : 1 Audio In/Output / Audio Compression - PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729
Alarm Interface : 2 channels in: 0-5VDC / 1 channel out
RS485 : N/A
Edge Storage : Micro SD card (512 GB) / NAS / FTP / SFTP
Interoperability : ONVIF (Profile S & Profile G & Profile T) / CGI / SDK / P2P
