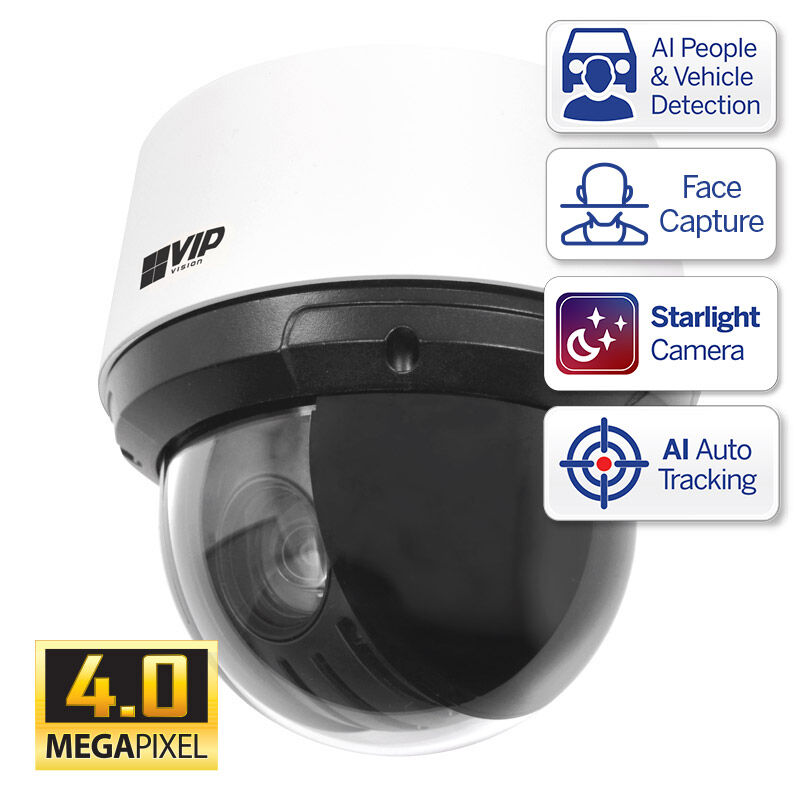

Professional AI Series 4.0MP 25x Zoom PTZ Compact Dome

Professional AI Series 4.0MP 25x Zoom PTZ Compact Dome VSIPPTZ-4IRC-I

This network PTZ dome offers versatile surveillance and affordability without skipping on highlights of the Pro AI Series. Ensure all areas are covered with up to 25x optical zoom. This camera uses AI learning technology to distinguish people and vehicles from other motion events and send alerts in real-time. Capture people's faces and use auto-tracking to intelligently follow subjects.

Camera Features:

Stream up to 4.0MP (2560x1440) at 25fps
25x optical zoom lens (51.9° ~ 3.0° viewing angles)
5 mm – 125 mm motorised varifocal lens with 3.0° ~ 51.9° viewing
H.265 encoding for efficient storage & streaming
Audio input/output and microSD slot for edge recording
3D digital noise reduction & true WDR (120dB)
AI people and vehicle detection (motion; tripwire/intrusion)
Trigger alerts and PTZ auto-tracking using AI detection
Power via 12VDC or Power over Ethernet (802.3at)
IP66 weather resistance

*Includes 12VDC 2A power supply
*AI auto-tracking activates only via people detection

SPECIFICATIONS

Camera

Image Sensor : 1/2.8" CMOS
Max. Resolution : 4.0 Megapixel
Effective Pixels : 2560 (H) × 1440 (V)
RAM / ROM : 128 MB / 512 MB
Min Illumination : Color: 0.005lux@F1.6 B/W: 0.0005lux@F1.6 0Lux (IR on)
S/N Ratio : ≥ 55 dB
Infrared System : 2 x Infrared LED, 100m range, Auto/manual on/off control

Lens

Lens Type : Motorised Varifocal
Lens / Iris : 5 mm – 125 mm F1.6 ~ F3.6 Motorised Lens with Auto Iris
Field of View : 51.9° ~ 3.0° (25x Optical Zoom)
Focus : 0.5 m–5 m Min. Focus Distance

DORI

Detect (25px/m) : 2500 m
Observe (63px/m) : 987.5 m
Recognise (125px/m) : 500 m
Identify (250px/m) : 250 m

PTZ

Pan / Tilt Range : Pan: 51.9°–3.0° Tilt: 39.7°–2.2°
PTZ Speed : Pan: 240°/s; Tilt: 160°/s | Manual Pan: 0.1°/s–240°/s Manual Tilt: 0.1°/s–160°/s
Modes / Presets : Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action : Auto-restore to previous PTZ/lens status

Video

Resolution : 4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate (Main) : 4MP (1–25fps)
Frame Rate (Sub) : D1 (1-25fps)
Frame Rate (Third) : 720p (1 ~ 25fps)
Video Compression : H.265/H.264B/H.264M/H.264H/MJPEG/H.265+/H.264+
Bit Rate : H.264: 2816 kbps–13056 kbps H.265: 1024 kbps–7936 kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Auto (ICR) / Color / B&W
Lighting Compensation : BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA) : No
White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control : Auto / Manual
Noise Reduction : 2D / 3D NR
Picture Control : Flip 180°

Artificial Intelligence

Face Recognition : N/A
Face Capture : Support
Perimeter Protection : Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking : Support
Metadata : N/A
People Counting : N/A
Heat Map : N/A

Intelligent Video Surveillance (IVS)

IVS Functions : Abandoned object / Missing object
Event Triggers : Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest : Support
Optical Defog : N/A
Digital Zoom : 16x
Privacy Masking : Up to 24 areas
Image Stabilisation : Electronic

Network

Ethernet : RJ-45 (10/100Base-T)
Protocol : IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method : Unicast / Multicast
Max. User Access : 20 Users

Interface

Video Interface : 1 Output (Vpp 75Ω)
Audio Interface : 1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
Alarm Interface : 1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC
RS485 : N/A
Edge Storage : MicroSD Card (up to 256GB) / NAS / Local PC
Interoperability : ONVIF / CGI / SDK / P2P

Environmental
