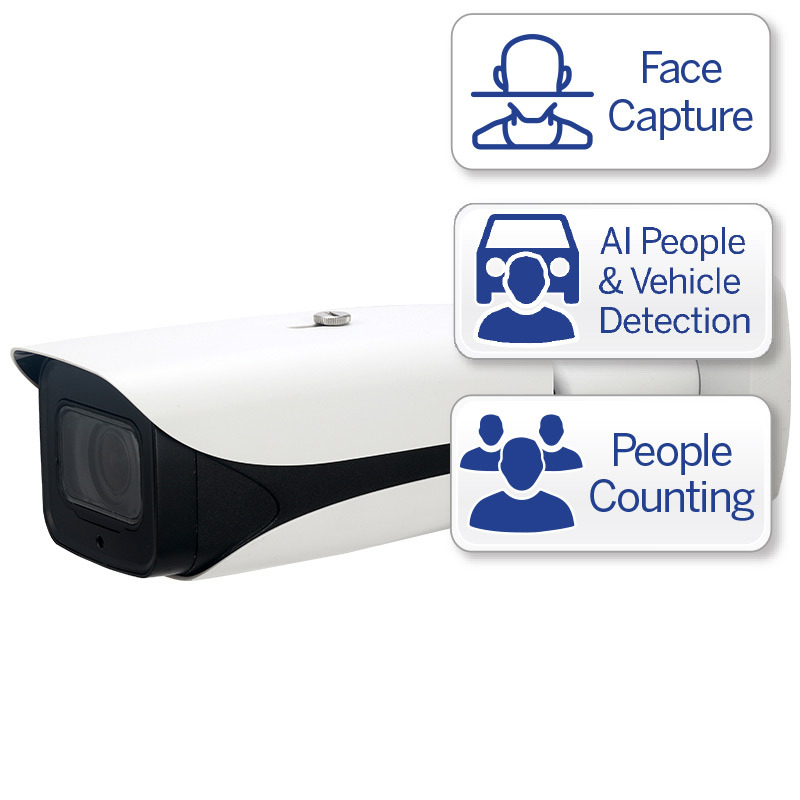

Ultimate AI Series 4.0MP Motorised Bullet (8 ~32mm lens)

Ultimate AI Series 4.0MP Motorised Bullet (8 ~32mm lens) VSIPU-4BIRM-IZ

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.

The VSIPU-4BIRM-IZ has a narrower field of view than the standard model (VSIPU-4BIRM-I), making it more suited for surveillance of single points of interest, such as entry points & corridors.

Camera features:

Stream up to 4.0MP (2688 x 1520) at 25fps
8~32mm motorised lens with 43~15° viewing angles
H.265 encoding for efficient storage & streaming
Long 120m infrared range; true day/night (auto ICR)
Back/highlight compensation & true WDR (140dB)
MicroSD slot for recording at the edge up to 256GB
Internal face detection & capture to extend recognition
Perimeter Protection to identify people & vehicles
Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
Intelligent AI-enhanced people counting for retail capacity management and flow control
Extend PoE up to 800m (requires ePoE NVR/switch)
IP67 weather rated for outdoor use & IK10 rated vandal resistant housing

Specifications

Camera

Image Sensor : 1/1.8’’ 4.0MP Progressive Scan CMOS
Max. Resolution : 4.0 Megapixel
Effective Pixels : 2688 (H) x 1520 (V)
RAM / ROM : 1GB / 128MB
Min Illumination : 0.002 Lux / F16 (Color)
S/N Ratio : > 56dB
Infrared System : 3 x Infrared LED, 120m range, Auto/manual/Zoomprio on/off control

Lens

Lens Type : Motorised Varifocal
Lens / Iris : 8 ~ 32.0mm F1.6 Motorised Varifocal Lens with Auto Iris
Field of View : Horizontal: 43°~15°, Vertical: 23°~8°, Diagonal: 50°~17°
Focus : Auto Focus / 2.5m Min. Focus Distance

DORI

Detect (25px/m) : 151.1m (wide) / 400m (tele)
Observe (63px/m) : 60.7m (wide) / 160m (tele)
Recognise (125px/m) : 30.3m (wide) / 80m (tele)
Identify (250px/m) : 15.1m (wide) / 40m (tele)

Video

Resolution : 4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main) : 4.0MP (1 ~ 25fps)
Frame Rate (Sub) : D1 (1 ~ 25fps)
Frame Rate (Third) : 1080p (1 ~ 25fps)
Video Compression : H.265, H.264, H.264B, H.264H, MJPEG (Sub Stream)
Bit Rate : H.264: 32Kbps ~ 8192Kbps / H.265: 19Kbps ~ 8192Kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Auto (ICR) / Color / B&W
Lighting Compensation : BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA) : N/A
White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control : Auto / Manual
Noise Reduction : 3D NR
Picture Control : Mirror / Flip (0°, 90°, 180°, 270°) (Supports 90°/270° with 4M resolution and lower)

IVS

Intelligent Functions : Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 areas), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection : Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection : Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Face Attributes : Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting : Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map : Yes
Event Trigger : Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
Intelligent Search : Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes

Network

Ethernet : RJ-45 (10/100Base-T)
Protocol : IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Streaming Method : Multicast
Max. User Access : 20 Users

Interface

Video Interface : N/A
Audio Interface : 1 input (RCA Port) / 1 output (RCA Port) / Audio Compression: G.711a; G.711Mu; G726; ACC; G.723
Alarm Interface : 2 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC
RS485 : N/A
Edge Storage : MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability : ONVIF / P2P / CGI / Milestone / Genetec
