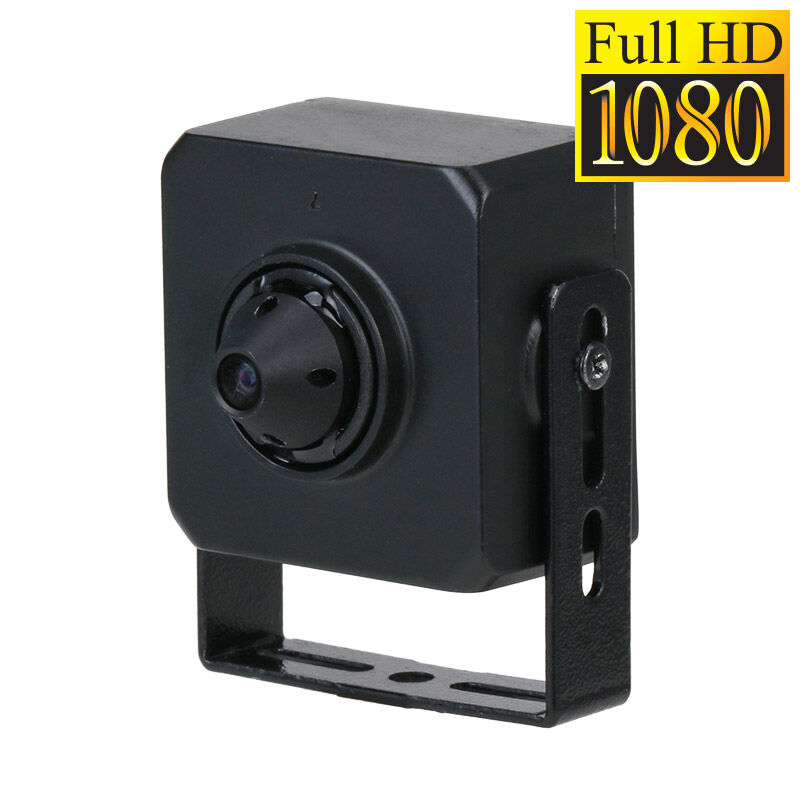

Pinhole Series 2.0MP Fixed WDR Pinhole Camera

The VSIPPH-2S2 pinhole camera is designed for discreet/covert surveillance applications and is ideal for use at controlled ingress points, in shelf surveillance, vehicles, ATMs and more.

Camera Features:

Stream up to HD 1080p at 25fps
Fixed 2.8mm lens with 108° field of view
True WDR (120dB)
Auto electronic day/night & 2D digital noise reduction
Discreet pinhole housing for covert surveillance
IVS functions including motion detection, tripwire & intrusion

Specifications

Camera

Image Sensor 1/3” 2.0 Megapixel Progressive Scan CMOS
Max. Resolution 2.0 Megapixel
Effective Pixels 1920 (H) x 1080 (V)
RAM / ROM 128MB / 128MB
Ultra Low Light Colour Yes
Min Illumination Colour: F2.0 0.01 lux (1/3s)
S/N Ratio >56dB
Infrared No Infrared System N/A

Lens

Lens Type Fixed
Lens / Iris 2.8mm F2.0 Fixed lens
Field of View Horizontal: 96°, Vertical: 55°
Focus Fixed / 0.6m Min. Focus Distance

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m) 61m
Observe (63px/m) 24.4m
Recognise (125px/m) 12.2m
Identify (250px/m) 6.4m

Video

Resolution 1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main) 1080p (1 ~ 25fps)
Frame Rate (Sub) 704 x 576@(1 ~ 25fps)
Frame Rate (Third) N/A
Video Compression H.265 / H.264 / MJPEG (sub stream)
Bit Rate H.265: 3 Kbps ~ 6144 Kbps / H.264: 3 Kbps ~ 6144 Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night Auto (Electronic) / Colour / B&W
Lighting Compensation BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA) N/A
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control Auto/ Manual
Noise Reduction 3D DNR
Picture Control N/A

IVS

IVS Yes
Intelligent Functions Tripwire, Intrusion, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)

Network

Ethernet RJ45 (10/100 Base-T)
Protocol IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
Streaming Method Unicast / Multicast
Max. User Access 20 Users
RTMP Support No

Interface
