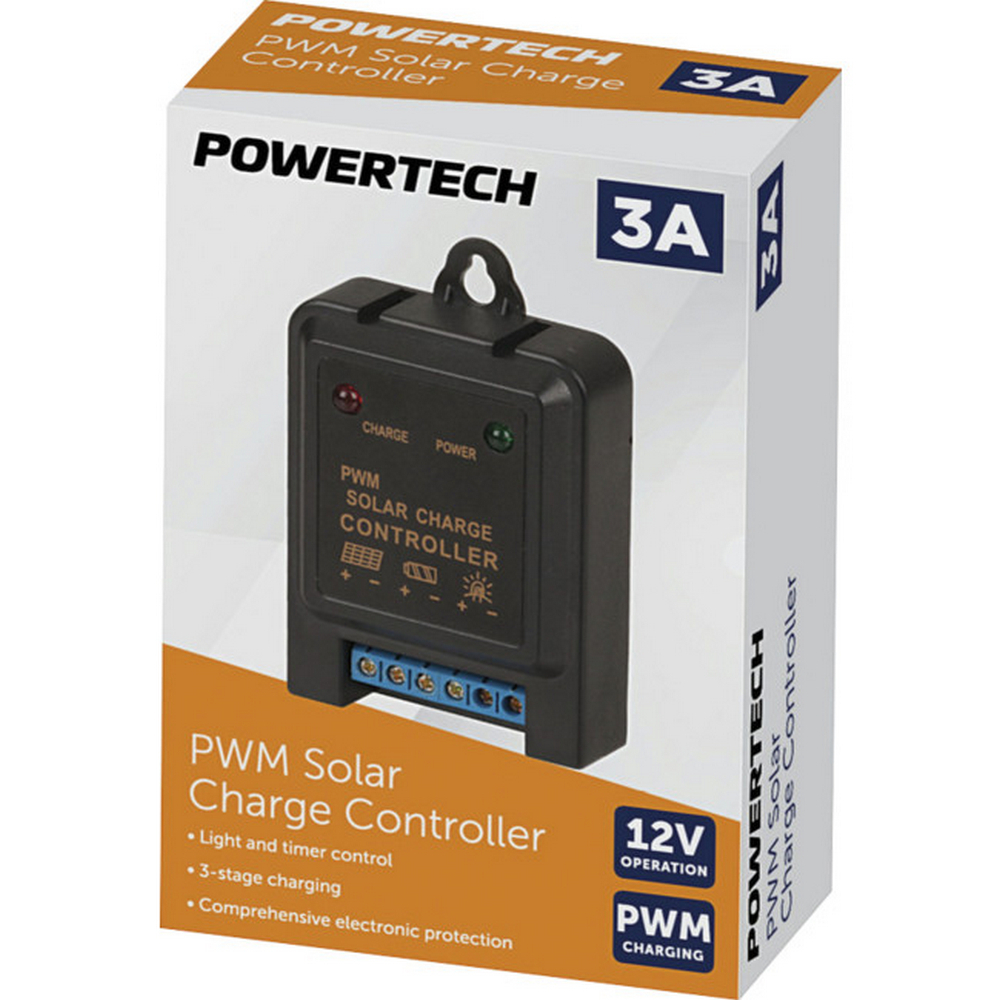

Miniature 12V 3A PWM Solar Charge Controller

This compact solar controller uses Pulse Width Modulation (PWM) to manage battery charging from a connectedsolar panel. It features light and timer control, similar tostreet lights, and three charging states (bulk, equalise, and float charging). It provides all the important safety features such as overcharge, over-discharge, over-current, short-circuit, and reverse-polarity protection.

Features:

  • Red charge LED indicator
  • Green power LED indicator
  • Hang hook
  • Battery voltage automatic identification
  • PWM charging mode
  • Comprehensive electronic protection
Specifications:
  • Rated Voltage: 12V
  • Strong Charging Pressure: 14.8V
  • Equilibrium Charging: 14.5V
  • Float Charging Pressure: 13.7V
  • Under Voltage: 10.8V
  • Under Recover Voltage: 13V
  • Non–Load Current: ≤6mA
  • Charging Circuit Voltage drop: ≤0.2V
  • Discharge Circuit Voltage drop: ≤0.1V
  • DC Voltage : 12.0V
  • IP Rating : 22
  • Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects
  • Liquid/Moisture Ingress Protection : 2 - Dripping water when tilted to 15deg
  • Width : 52.0mm
  • Height : 22.0mm
  • Depth : 80.0mm
  • Weight : 33.0kg
  • Charge Controller Technology : Pulse Width Modulated (PWM)
  • Max Charging Current : 3.0A
  • Max Load Current : 3.0A

(MP3762)

12 Months

SKU MP3762
Model # MP3762
Barcode # 9319236750346
Brand Powertech
Unit Of Measure Each
Assembled Width 0.046m
