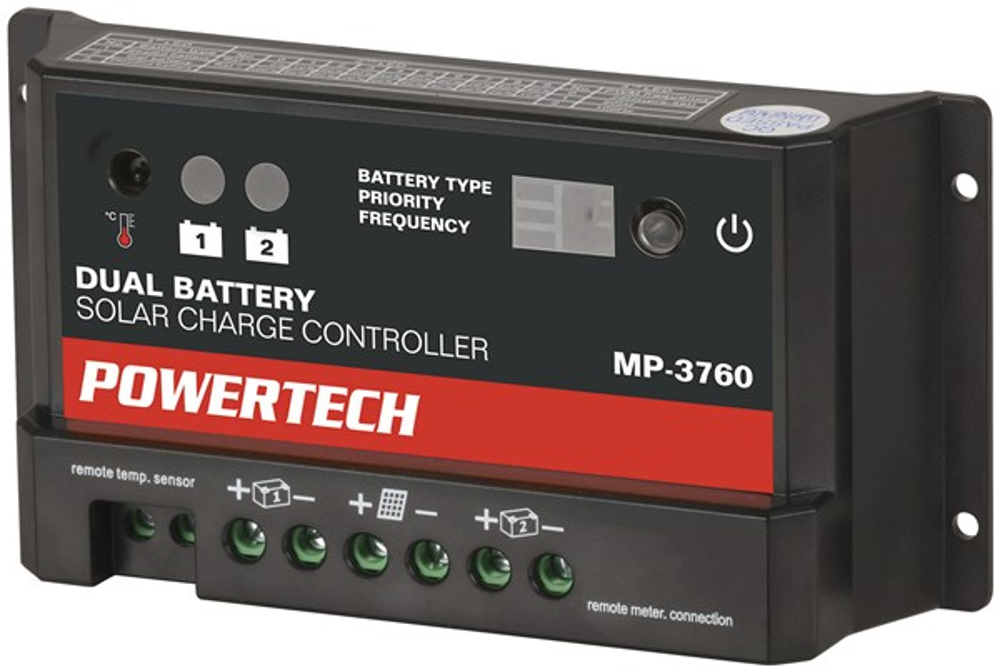

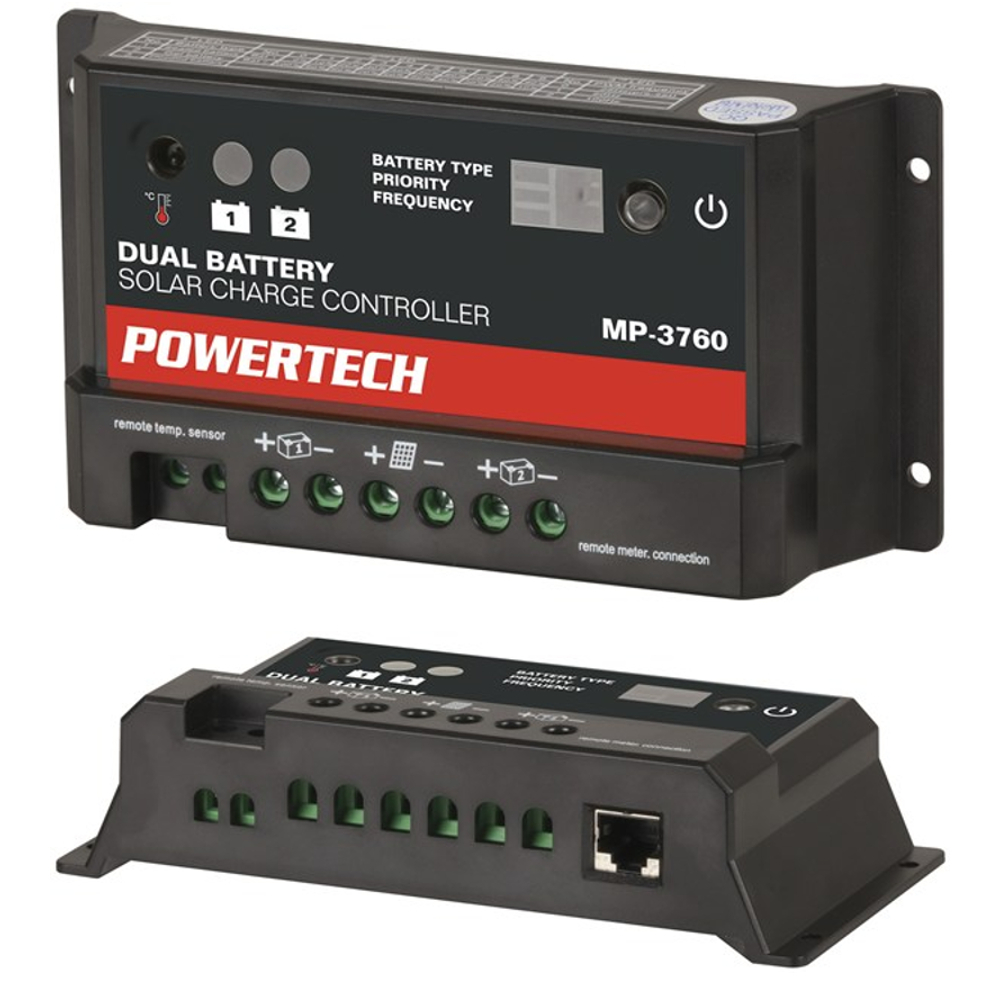

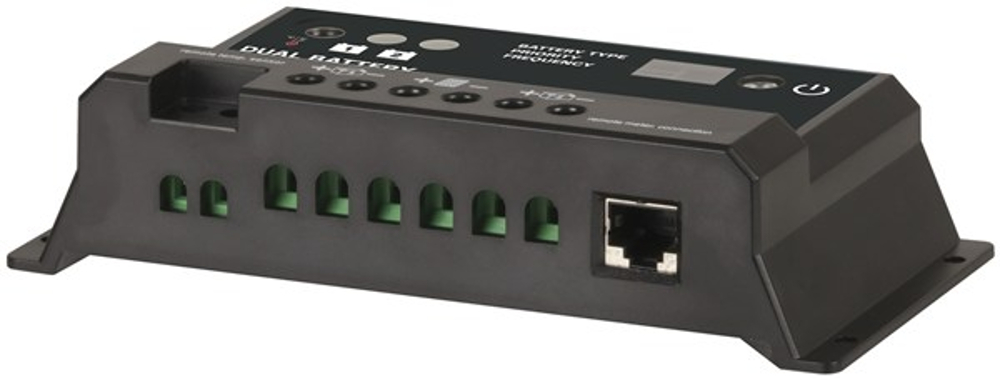

Powertech Dual Battery 12/24V 10A PWM Solar Charge Controller with LED Indicator

RRP $91.90
SAVE $31.95 (35%)
In Stock

Calculate Shipping

We have many solar battery charger controllers - up to 50A - but they only work on one battery bank. This unit will charge TWO house battery banks or one house bank and your motor start battery as well. Too often the motor start battery is forgotten if you are camped in the one spot for a long time.


Will charge 2 completely separate battery banks at the same time
Works with 12V or 24V systems
Highly efficient PWM (Pulse-width modulation) charging system
Provides up to 10A charging current (Limited by size of your solar panels)
Electronic protection from over charging short circuit or accidental reverse battery connection
Max solar input voltage: 30V (12V system), 55V (24V system)
Battery input voltage range: 8-15V (12V system), 8-30V (24V system)
Max output current (both channels): 10A
Overnight self-consumption: 4mA
Recommended solar panel to utilise output of this controller. ZM9059, 8.3A unit. (Note output of this controller is limited by the current output of the solar panel feeding it).
Width : 153.0mm
Height : 76.0mm
Depth : 37.0mm
Weight : 240.0g
SKU MP3760
Model # MP3760
Barcode # 9319236737200
Brand Powertech
Shipping Weight 0.2400kg
Unit Of Measure each

12 Months
