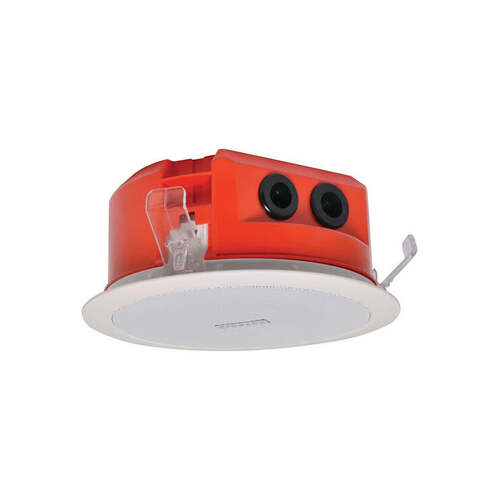

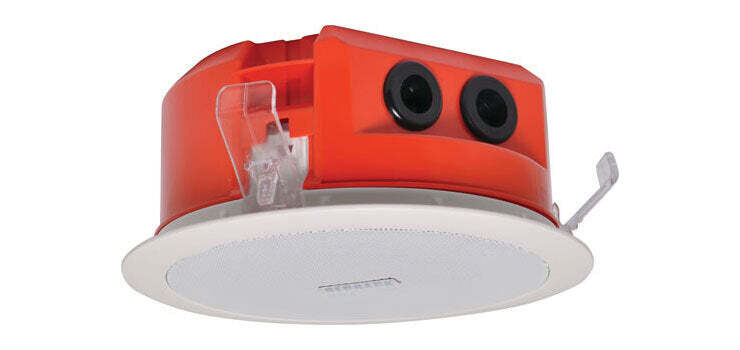

Oneshot EWIS Ceiling Speaker White Metal Grille 4 Way Terminals 100mm 100V 5W

Overview

Designed to meet AS ISO7240.24:2018. Our first One-Shot speaker with a aluminium grille, this model has been designed for installations requiring a premium finish whilst still meeting the required fire standards. It can also be used for standard 100V PA/BGM installations. At only 65mm overall height, these models are ideal for low profile ceiling spaces (penetrates ceiling cavity by only 53mm - with 12mm thickness ceiling tiles). It features flame retardant housing material, sealed cable gland entries and a tuned PA driver to suit the new approval requirements.

This range of speakers have been engineered to meet the requirements of evacuation and occupant warning paging systems. The high efficiency speaker and transformer combination ensures high SPL, wide frequency response, superior speech intelligibility and reproduction for mission critical applications. All components of the fixture are manufactured from high quality, long lasting, flame retardant material and tested to the rigours of the new standard. On site installation will be simple and straight forward. Oversized cable glands and terminal blocks will make on site termination easier than other competing products. Finally the speaker will just ‘snap fit’ into the ceiling. Far easier than competitors models being offered on the market.

Note, this version differs from the C 2260 only in the type of sealing used for cable entry. This model features a press fit rubber push through grommet.

The Labour Saving One-Shot® Mounting System
Redback® “One-Shot®” speaker units install in seconds providing substantial labour cost savings for the professional installer compared to traditional mounting methods. The “Rat-Trap” version is the first “One-Shot®” to utilise a retaining 3 way spring latching system. Each latch is set like a rat trap before installation into the speaker hole. When the speaker is pushed into the ceiling, the latches spring open, securing the speaker in place. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit to either gyprock tiles, mineral fibre tiles or fixed gyprock ceilings. A neutral white RAL colour provides an architecturally unobtrusive finish to virtually any installation.
Features

Designed to meet Australian Standard AS ISO7240.24
Press to fit rubber push through grommet.
Excellent speech intelligibility
Low profile design is only 65mm deep.
Tuned PA driver designed to meet the latest fire standards
High quality speaker driver developed for BGM, paging and emergency warning applications
Patented 3 way latching ensures a neat, sag free installation.
Fitted with 4 way wire protect terminal for loop in, loop out wiring.
Fitted with cable restraint plate and flame retardant safety cover.
Fitted with supervisory capacitor for line monitoring.
Assembled in Australia.
5 year warranty.
