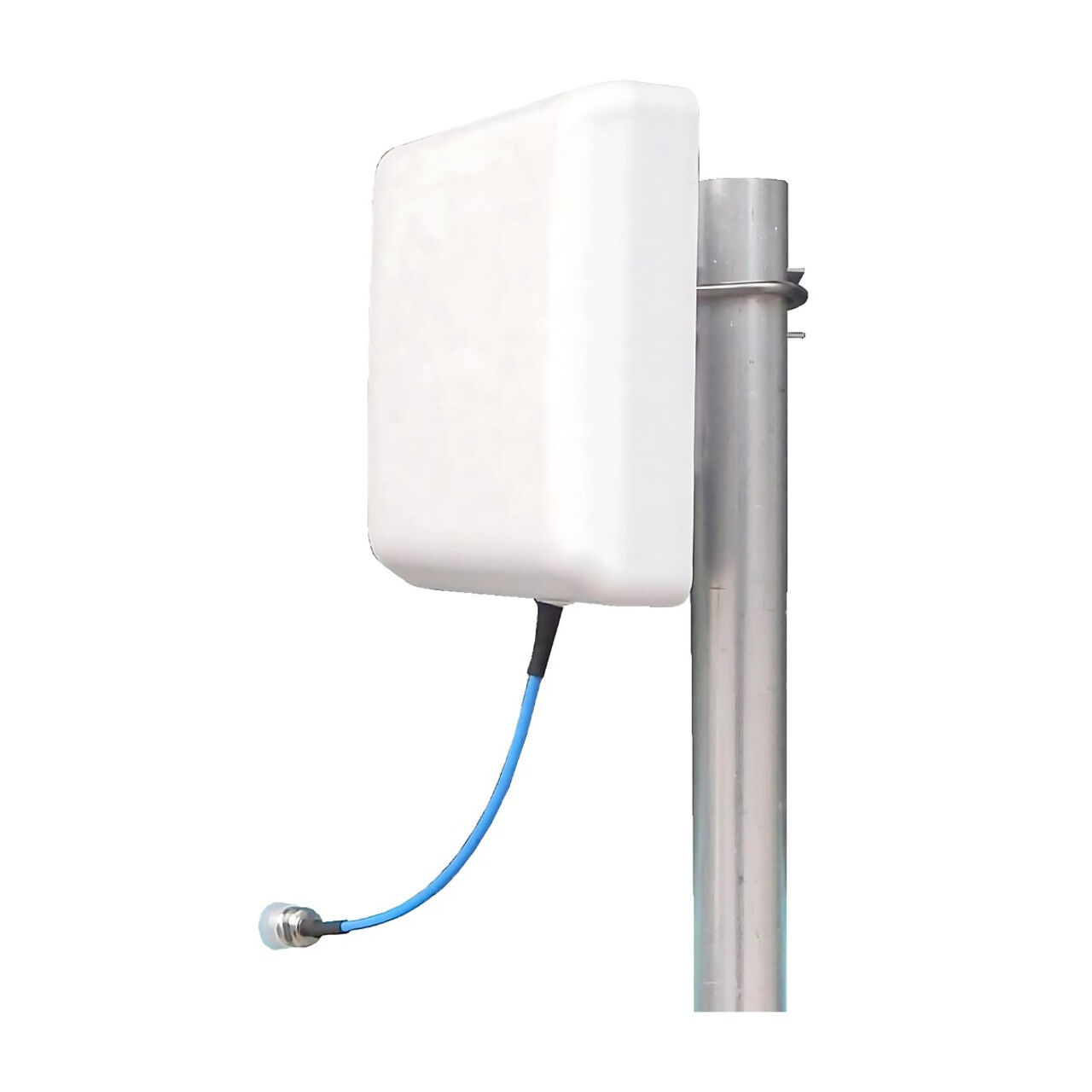

Powertec 4G-5G Outdoor Wall Mount Antenna 698-4000 MHz N Female ANT-BH-00088
The Powertec 4G-5G Outdoor Wall Mount Antenna, 698 to 4000 MHz, N Female delivers exceptional performance across a wide frequency range. With a gain of up to 7 dBi, this antenna ensures robust signal reception for both 4G and 5G networks, enhancing connectivity in outdoor environments.
Key Features:
- 698 to 4000 MHz Frequency Range
- Vertical Polarisation
- 50 Ω Input Impedance
- 50W max. Input Power
- DC Ground Lightning Protection
- N Female Connector
- Aluminium Reflector
- ABS (UV Stabilised) Radome
Advanced Low-PIM Design
Engineered with a low-PIM (Passive Intermodulation) design, this antenna supports multiple carriers simultaneously, making it ideal for high-density mobile network environments. This feature helps to maintain clear and interference-free communication.
Durable and Versatile Installation
Built for outdoor durability, the antenna is rated for harsh conditions and features an IP65 ingress protection rating. It comes with a universal mounting bracket that supports both wall and pole installations, fitting poles with diameters ranging from 38 to 52 mm.
High-Quality Build and Specifications
Crafted with an aluminium reflector and UV-stabilised ABS radome, this antenna is designed to withstand extreme temperatures from -40 °C to +65 °C. It features an N Female connector and is equipped with DC ground lightning protection, ensuring both safety and longevity.
| Category | Specification | Details |
|---|---|---|
| Model Version | Product Name | Powertec 4G-5G Outdoor Wall Mount Antenna |
| Frequency Range | 698-806 MHz | 5.5 dBi Gain |
| 806-960 MHz | 6.5 dBi Gain | |
| 1710-2700 MHz | 8 dBi Gain | |
| 3300-4000 MHz | 7 dBi Gain | |
| VSWR | 698-806 MHz | ≤2.0 |
| 806-960 MHz | ≤2.0 | |
| 1710-2700 MHz | ≤1.8 | |
| 3300-4000 MHz | ≤1.8 | |
| Polarisation | Type | Vertical |
| PIM 3rd Order 2×20W |
Total | ≤-150 dBc |
| Front-to-Back Ratio | 698-806 MHz | ≥9 dB |
| 806-960 MHz | ≥10 dB | |
| 1710-2700 MHz | ≥15 dB | |
| 3300-4000 MHz | ≥11 dB | |
| Horizontal Beamwidth | 698-806 MHz | 100° |
| 806-960 MHz | 85° | |
| 1710-2700 MHz | 65° | |
| 3300-4000 MHz | 50° | |
| Vertical Beamwidth | 698-806 MHz | 90° |
| 806-960 MHz | 82° | |
| 1710-2700 MHz | 60° | |
| 3300-4000 MHz | 45° | |
| Input Impedance | Total | 50 Ω |
| Max. Input Power | Total | 50 W |
| Lightning Protection | Type | DC Ground |
| Connector | Type | N Female |
| Dimensions | Size | 180 × 158 × 60 mm |
| Weight | Total | 0.5 kg |
| Reflector Material | Type | Aluminium |
| Radome Material | Type | ABS (UV Stabilised) |
| Ingress Protection | Type | IP65 |
| Operating Temperature | Range | -40 to +65 °C |
| Mounting | Pole Size | Ø38-Ø52 mm |
(ANT-BH-00088)
| SKU | ANT-BH-00088 |
| Barcode # | 9337692004292 |
| Brand | POWERTEC |
| Artist / Author | Nandana |
| Shipping Weight | 1.2200kg |
