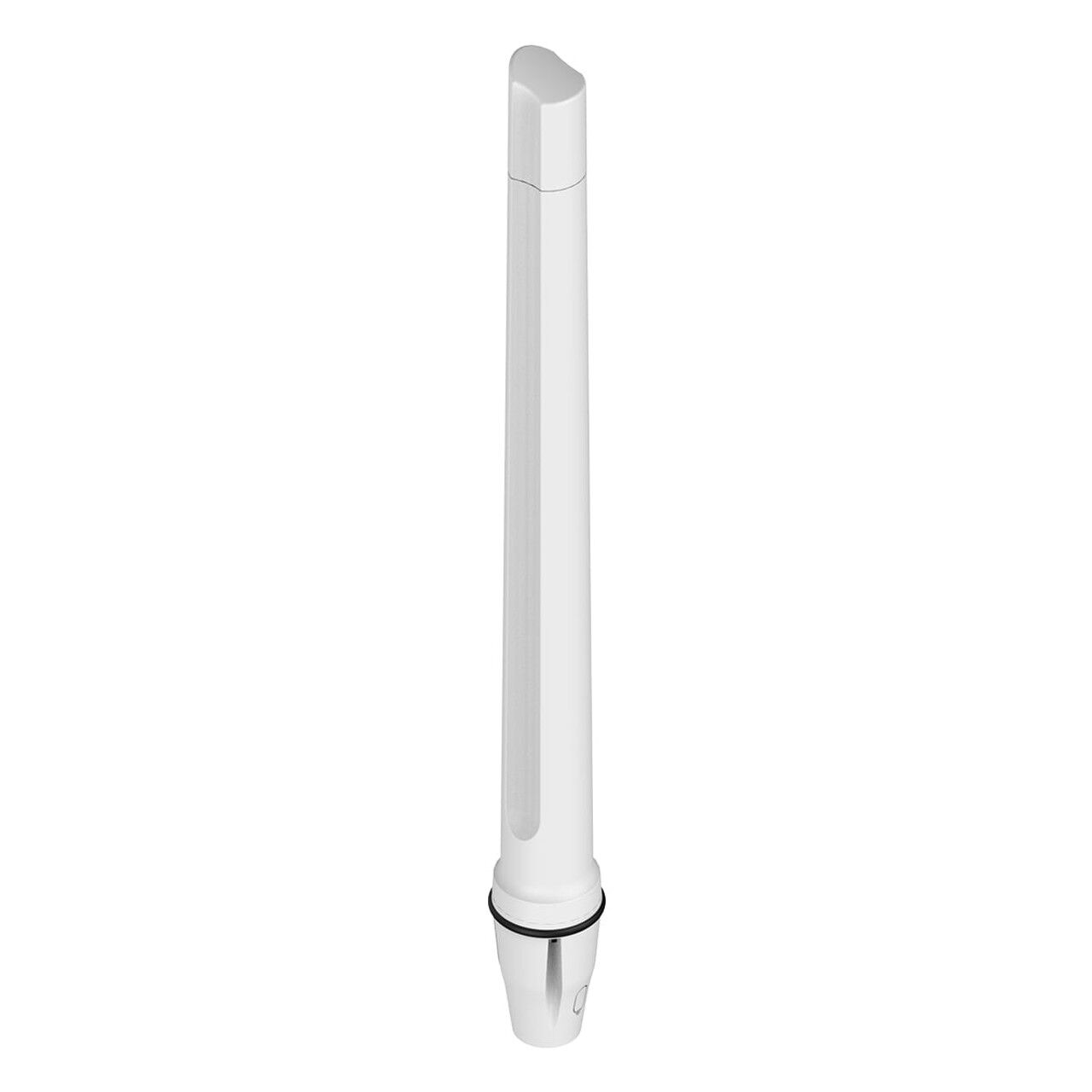

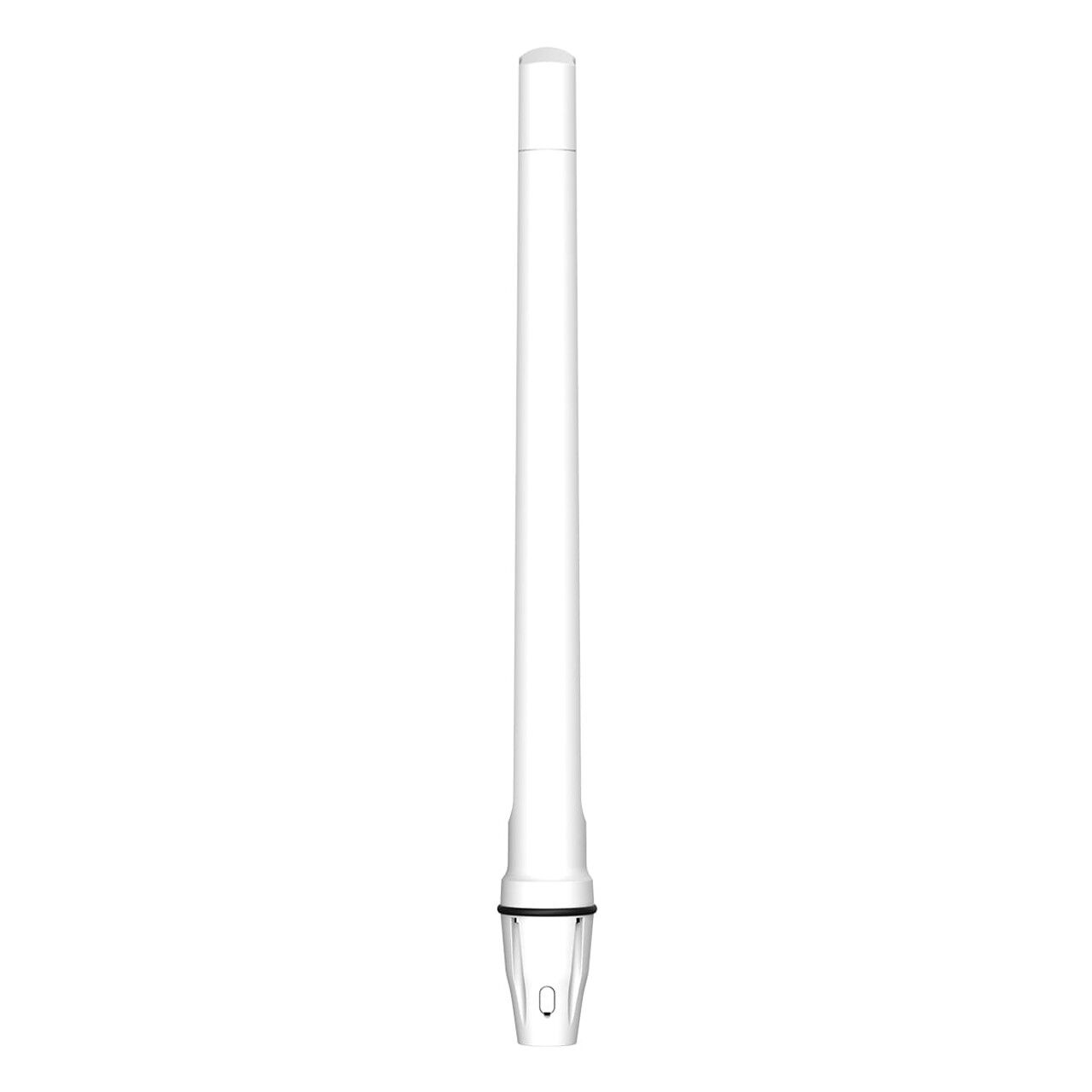

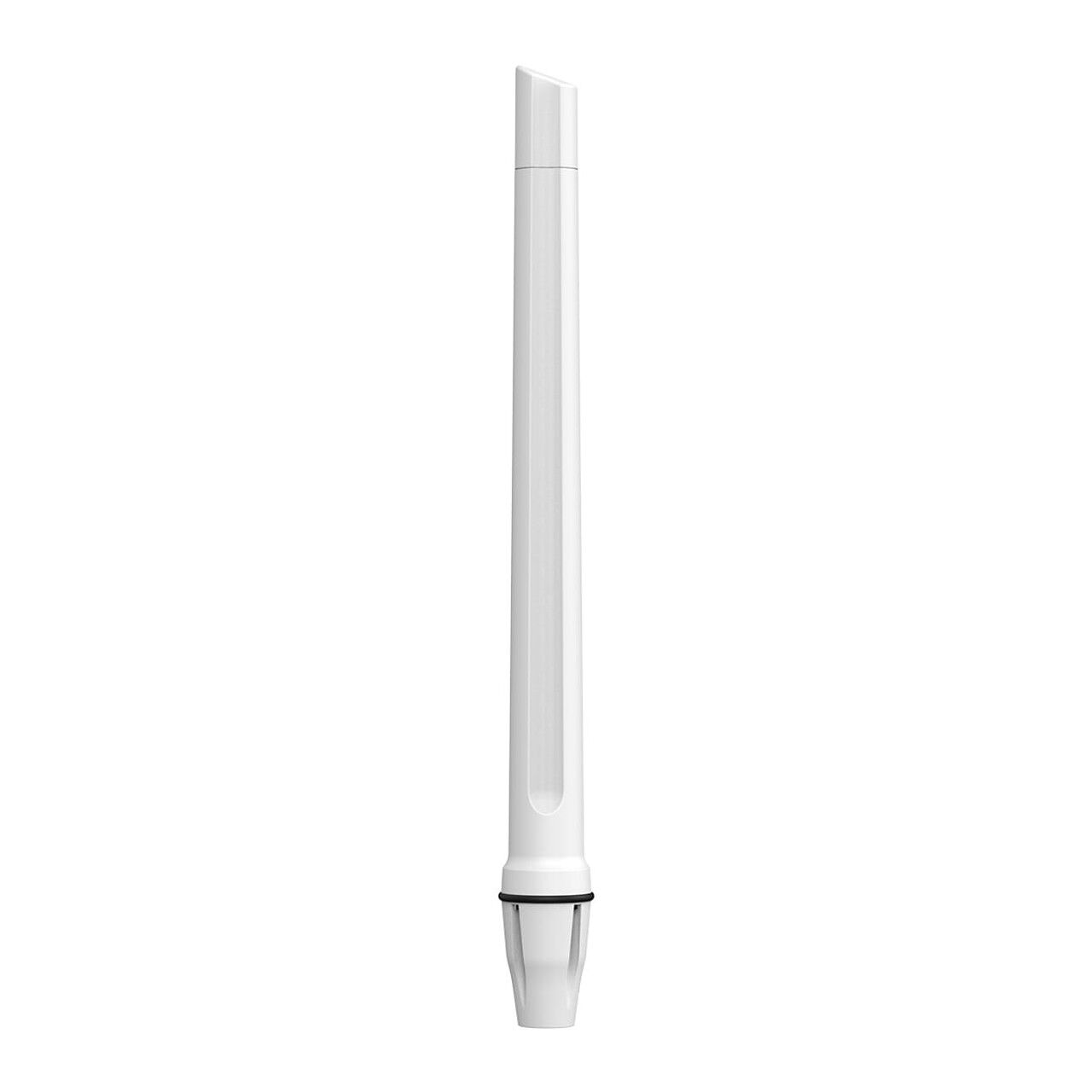

Experience superior connectivity with the Poynting Omni-493 Omni-Directional LTE/5G Antenna. Covering an ultra-wideband spectrum from 617 to 3800 MHz, with a remarkable 9 dBi gain, this antenna ensures reliable signal reception globally. Its innovative design guarantees exceptional performance across all frequencies, making it ideal for marine and coastal applications. The Omni-493 is future-proof, ready to support upcoming 5G technology. With features like UV and saltwater protection (IP68 rated), it's purpose-built to excel in marine environments.

Features:

  • High-gain omnidirectional antenna
  • Includes band 71 (617 - 698 MHz) and 3.5 GHz 5G bands
  • Wideband operation for future-proofing
  • Tailored for marine and coastal use
  • UV and saltwater-protected enclosure (IP68)

Ideal for:

  • Marine applications / Yachts / Boats / Ferries
  • Enhanced 4G/LTE and 5G reception
  • IoT & M2M applications
  • Areas with poor data signal reception
  • Boosting data transmission reliability & stability
Specification Description
Industry (Application) Marine & Coastal Antennas
Technology Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band 617-698MHz, 698-803MHz, 791-894MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz
Frequency Range 617 – 3800 MHz
Gain 9dBi
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Omni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Mounting Type Pole Mount, Wall Mount
Wi-Fi Standard Wi-Fi 3 (802.11g)
Connectors N-Type
MIMO SISO
Polarisation Linear Polarised
Environmental IP68, Marine Grade, Salt Spray Protected
Enclosure Name Moray
Enclosure Size Large
LTE Ports 1
General Information
Manufacturer: Poynting
Manufacturer Part Number: A-OMNI-0493-V1-01
Barcode: 90008816
Packaging Details
Weight: 1.57 KGS
Width: 15.00 (cm)
Height: 10.00 (cm)
Depth: 71.00 (cm)



(ANT-PY-00036)

SKU ANT-PY-00036
Model # A-OMNI-0493-V1-01
Barcode # 90008816
Brand Poynting
Type Antenna
