Overview

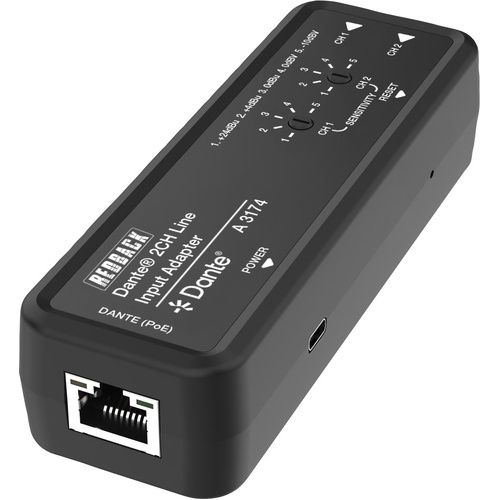

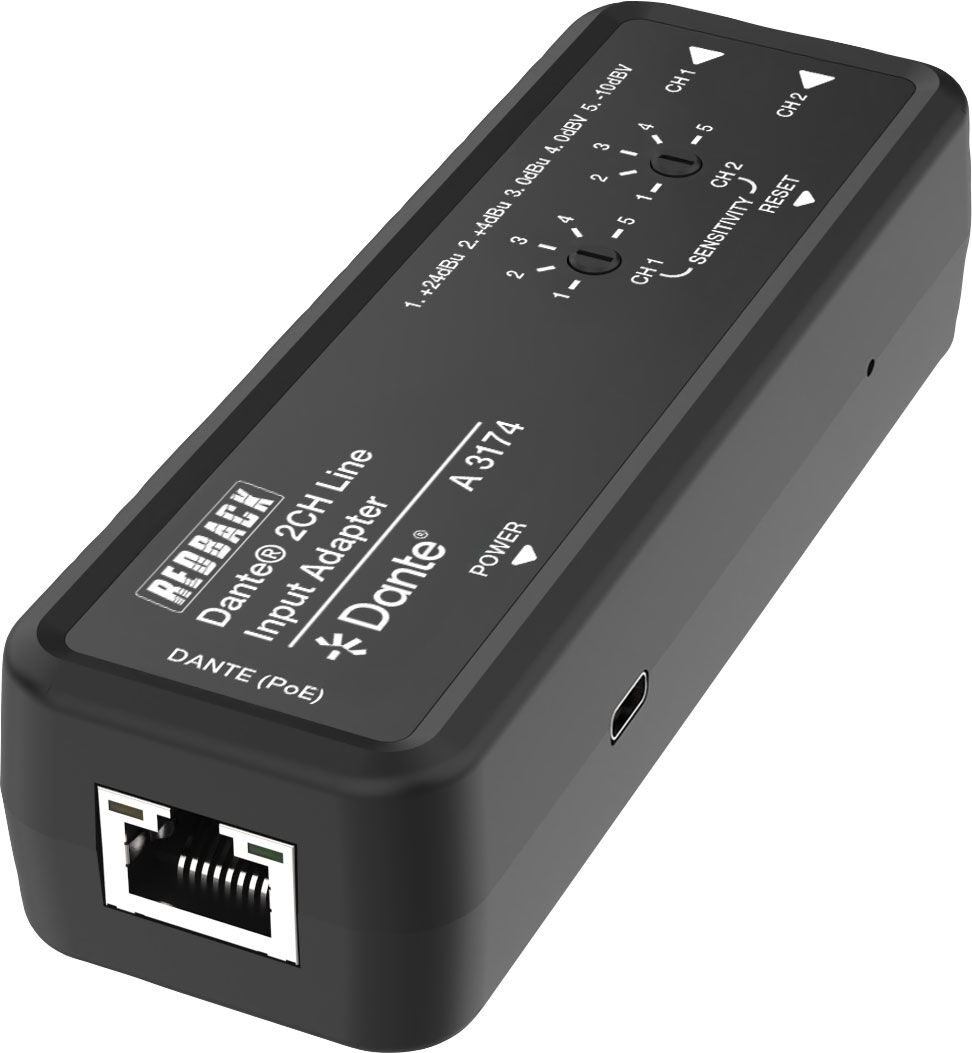

This Dante 2CH screw terminal Input Adapter is an audio transmitter based on the Dante Ultimo 2x2 solution. It converts two-channel balanced/unbalanced analog audio into Dante 2CH digital audio, then transmits the audio to the receiving end through network (Dante). Analog audio input supports 5-level sensitivity adjustment. The adapter supports local USB-C port power supply and PoE function.

Features

• Two-channel analog audio to Dante 2CH digital audio
• Balanced/unbalanced screw terminal analog audio input
• Dante audio sampling rate supports 44.1/48/88.2/96KHz@24bit
• Dante audio delay supports 1/2/5ms (configurable)
• Analog audio input supports 5-level sensitivity adjustment (+24dBu, +4dBu, 0dBu, 0dBv, -10dBv)
• Compatible with AES67 input and output.
• Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
• Compact design for easy and flexible installation

 Specifications

Technical:

• Input: Two-channel balanced/unbalanced analog audio
• Output: Dante® 2CH digital audio
• Control Method: Dante® Controller
• Network Bandwidth: 100Mbps
• Audio Latency: Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)
• Transmission Distance: 100m (CAT6/6A/7)
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Audio Formats:

• LINE IN [Analog audio input, Balanced/unbalanced
• 2CH, Max input level +24dBu]
• DANTE OUT [Digital audio output, PCM 2CH
• 44.1K-96KHz 16/24bit]

Audio Parameters (Line In):

• Input Impedance: 20k Ohm balanced 10k, Ohm unbalanced
• Line Input Level (Maximum): +24dBu (12.28Vrms) @ balanced audio, +18dBu (6.15Vrms) @ unbalanced audio
• Frequency Response: 20Hz to 20kHz (-/+0.5dB)
• Dynamic Range: >100dB@0dBu, 1kHzA-weighted
• Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted
• Audio THD+N: < 0.01% at +4dBu, 1KHz
• Audio Output Sync Delay: <10ms

Connection:

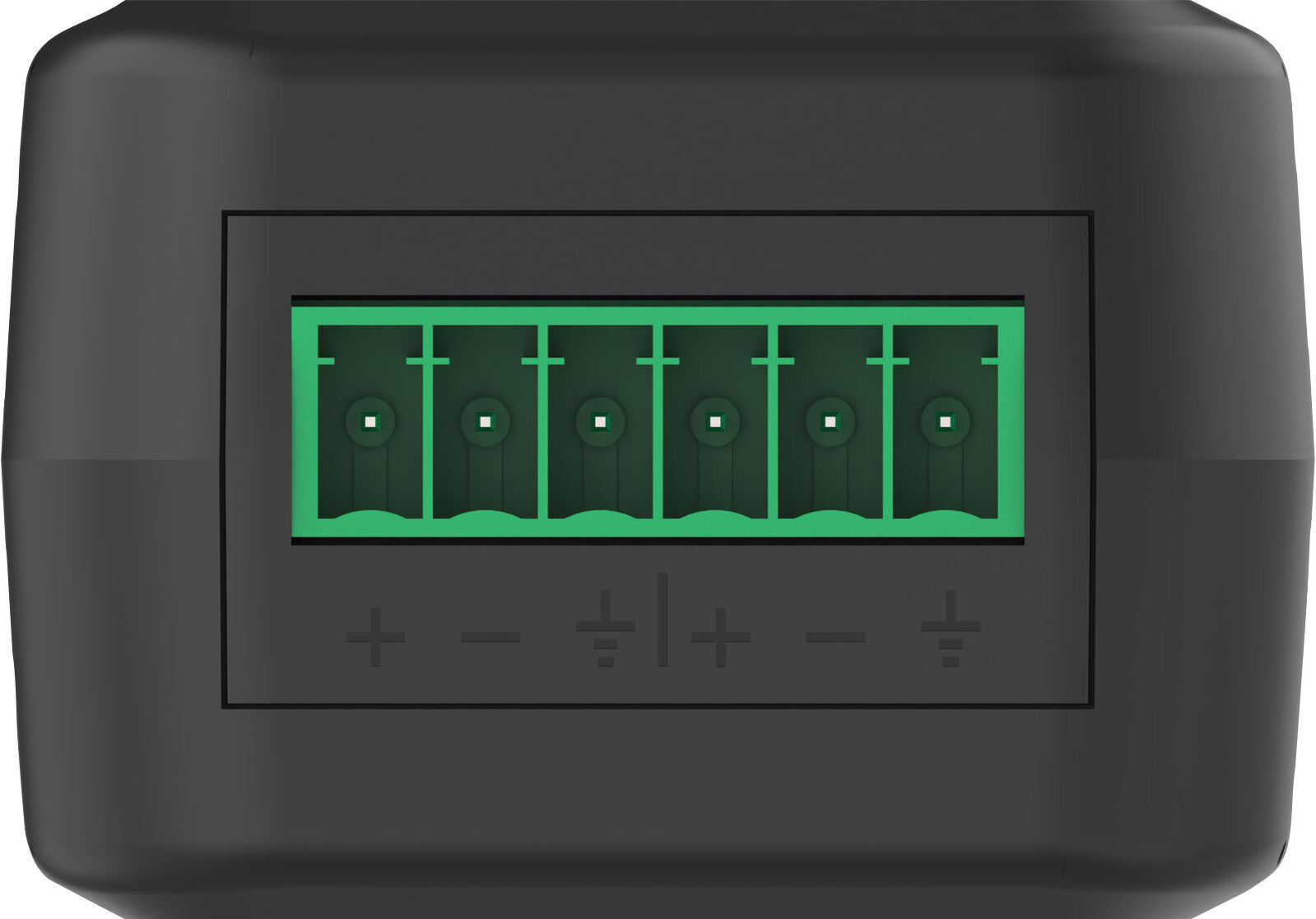

• Input port: 2x CH1/CH2 LINE IN [6pin-3.5mm phoenix connector], 1x POWER [USB-C power and firmware update port,, 12-pin female]
• Output port: 1x DANTE [RJ45 connector, PoE]
• Others: 1x RESET button [System reboot button], 2x SENSITIVITY knob [5-level dip switch

Mechanical:

• Housing: Metal Enclosure
• Colour: Black
• Dimensions: 115W x 40D x 28Hmm
• Weight: 94g
• Power Supply: USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0
• Power Consumption: 2W (Max)
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)
• Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing

  *Specifications are subject to change without notice.
