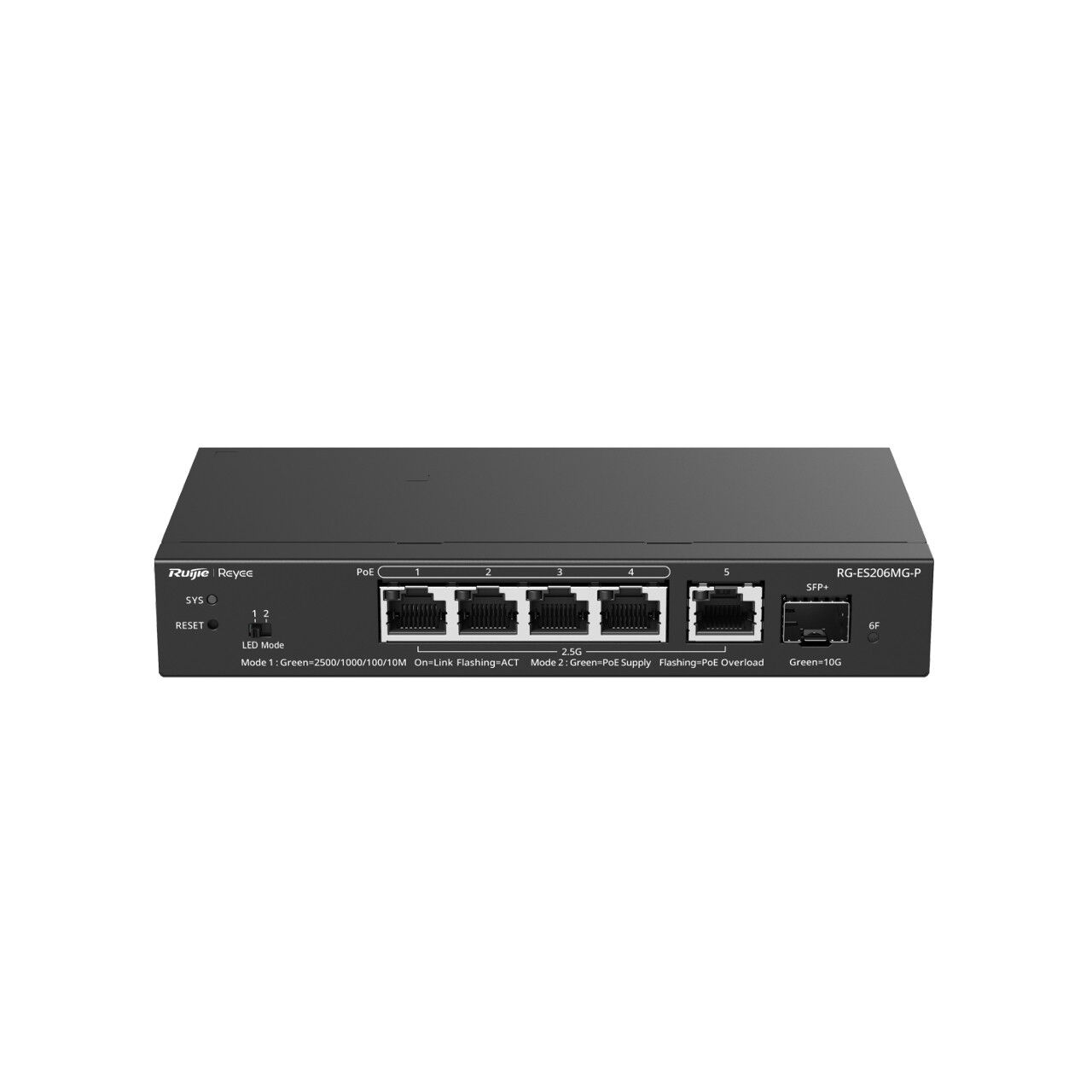

Ruijie Reyee ES206MG-P 4-Port 2.5G PoE+ 1x 2.5G Port 1x SFP+ Port Switch 70W

Compact 2.5G PoE switch for smart, high-speed network integration

The RG-ES206MG-P delivers powerful performance in a compact, fanless design, offering 5 × 2.5 GbE ports and 1 × 10 Gbps SFP+ uplink for seamless high-speed connectivity. Supporting up to 70 W total PoE power across 4 ports, it efficiently powers IP cameras, access points, and other devices while maintaining energy efficiency and quiet operation. With Ruijie Cloud and Reyee App support, the switch enables intuitive configuration, remote monitoring, and lifetime free cloud management.

Key Features

High-performance connectivity: 5 × 2.5 GbE ports and 1 × 10 Gbps SFP+ uplink ensure fast and stable data transfer for high-bandwidth applications.
Flexible PoE output: Four IEEE 802.3af/at ports deliver a total 70 W PoE budget to power cameras, APs, or IoT devices efficiently.
Smart cloud management: Manage anytime, anywhere via Ruijie Cloud or Reyee App with free lifetime access.
Quiet fanless design: Metal casing and natural cooling provide silent operation and long service life.
Energy-efficient operation: Consumes only 5.5 W (no load) and 75.5 W at full PoE load for reduced power costs.
Reliable and durable build: Features 200,000 hours MTBF, surge and ESD protection, and supports wall or desktop installation.

This switch combines compact form, intelligent management, and high-speed capability—ideal for modern offices, surveillance networks, and smart home applications.

Technical Specifications
Product Category	Layer 2
RJ45 Ports	5 × 10/100/1000/2500BASE-T
Optical Ports	1 × 10GE SFP+
PoE Out Ports	4 × IEEE 802.3af/at
PoE Budget	70 W
Switching Capacity	45 Gbps
Forwarding Rate	33.75 Mpps
Power Input	100–240 V AC, 50–60 Hz
Power Output	54 V DC / 1.48 A
Max Power Consumption	75.5 W (PoE full load)
Memory	Flash 4 MB
VLAN Support	Up to 16 VLANs (IEEE 802.1Q)
MAC Address Table	4,000 entries
Jumbo Frame Size	9,216 bytes
Fan	Fanless, natural cooling

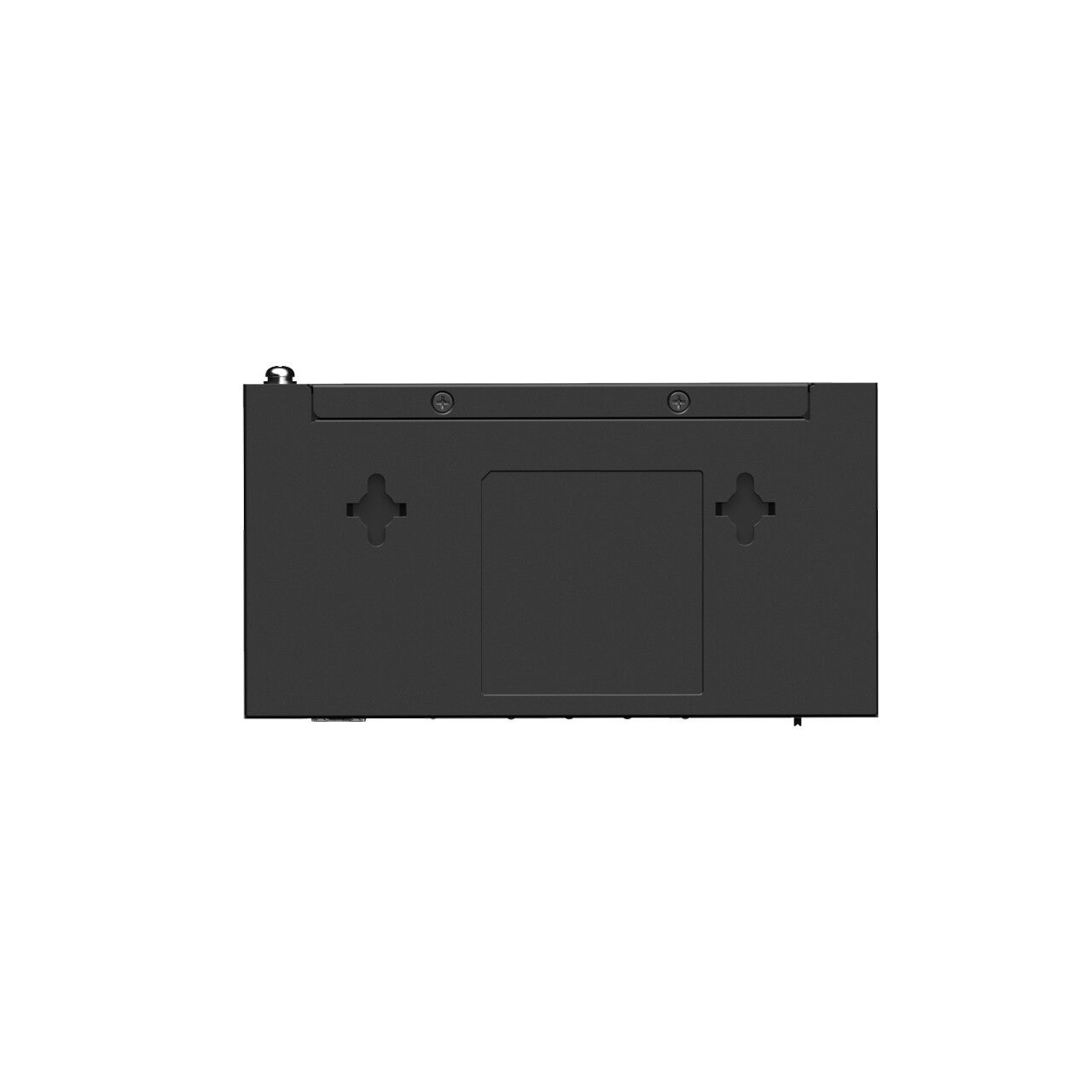

Mounting Options	Wall / Desk mount
Dimensions (W × D × H)	172 × 90.8 × 28 mm
Weight	0.49 kg (net), 1.39 kg (shipping)
Operating Temperature	0 °C to 40 °C
Storage Temperature	–40 °C to 70 °C
Humidity Range	10–90 % RH (non-condensing)
Surge Protection	±4 kV (common mode, differential)
ESD Protection	Air 8 kV / Contact 6 kV
Certification	CE, EN 55032, EN 55035, EN 62638-1
Warranty	3 Years

General Information
Manufacturer:	Ruijie Reyee
Manufacturer Part Number:	RG-ES206MG-P
Barcode:	90012787
Packaging Details
Weight:	1.39 KGS
Width:	10.00 (cm)
Height:	3.00 (cm)
Depth:	18.00 (cm)
