Overview

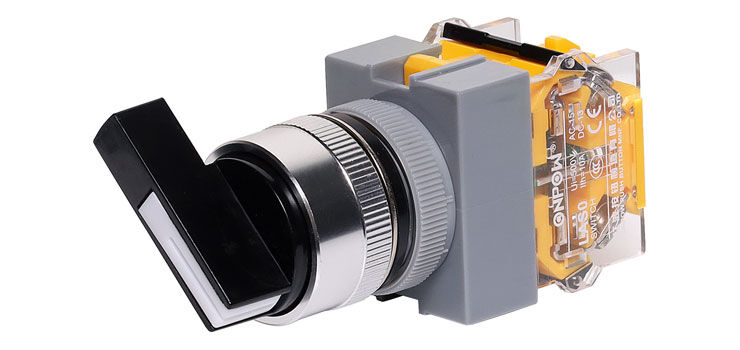

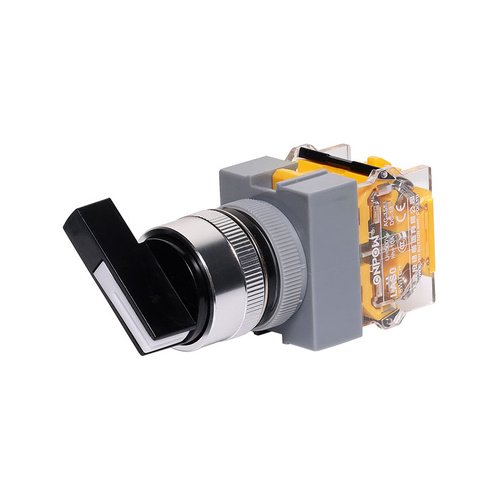

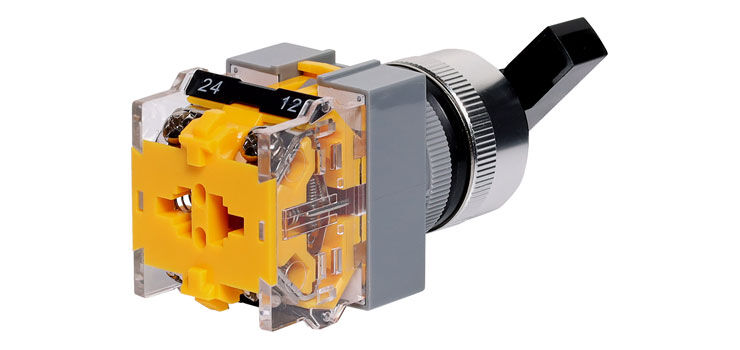

This heavy duty lever switch provides a clear, responsive, and intuitive interface for users to control machinery, regulate large electrical currents, and serve as a safety feature by indicating a machine's position or the presence of a heavy object

Specifications

General

• Switch rating: 500V 10A
• Mechanical Life: ?1000,000 cycles, ?500,000 cycles
• Electrical Life: ?50,000 cycles
• Contact Resistance: ?200m?
• Insulation Resistance: ?100M? (500V DC)
• Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min
• Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)
• Torque: ~0.6Nm applied to nut
• Front Panel protection degree: IP40
• Terminal type: Thread connection
• Diameter of welded wire: 2 x 1.5mm² Max
• General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52
• Operating requirement: 90°C rotation requires rotation in place
• General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52

Materials

• Contact: Silver Alloy
• Button: POM
• Body: ABS
• Base: PC
•
•
