Overview

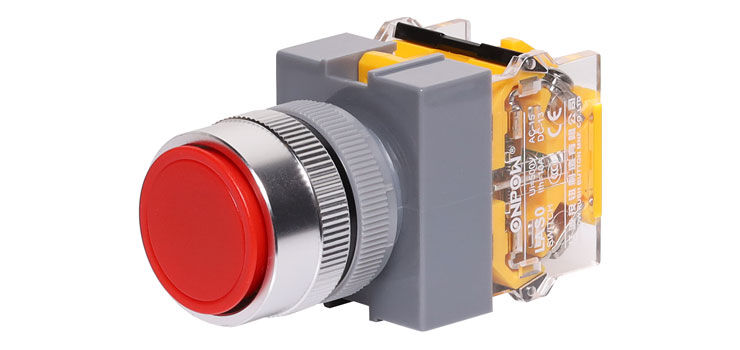

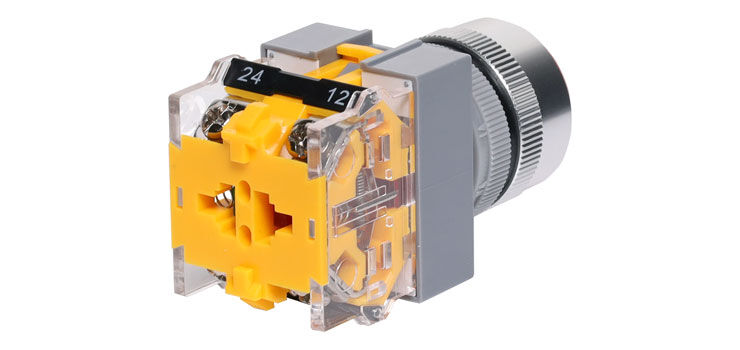

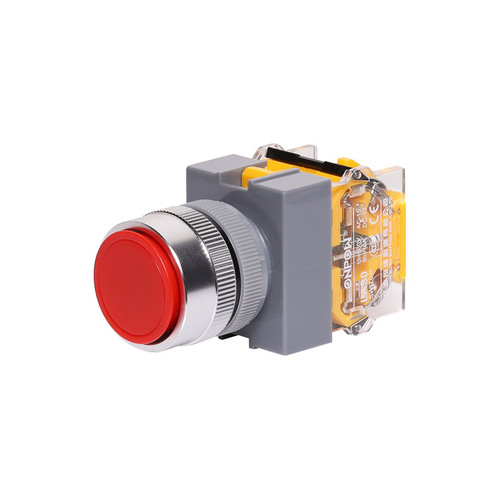

This Heavy Duty Red 22mm Momentary Push Button Switch activates only while pressed and returns to its original position when released, unlike a "latching" switch which stays in the pressed position. It’s ideal for applications requiring temporary control, such as machinery start/stop functions. The bold red button provides clear visibility, while the rugged construction ensures durability under heavy use.

Specifications

General

• Button Colour: Red
• Switch rating: 500V 10A
• Mechanical Life: ?1000,000 cycles (momentary), ?500,000 cycles (latching)
• Electrical Life: ?50,000 cycles
• Contact Resistance: ?200m?
• Insulation Resistance: ?100M? (500V DC)
• Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min
• Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)
• Torque: ~0.6Nm applied to nut
• Operating force: ~10N
• Operating travel: ~5mm
• Front Panel protection degree: IP40
• Terminal type: Thread connection
• Diameter of welded wire: 2 x 1.5mm² Max
• General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52

Materials

• Contact: Silver Alloy
• Button: POM
• Body: ABS
• Base: PC
