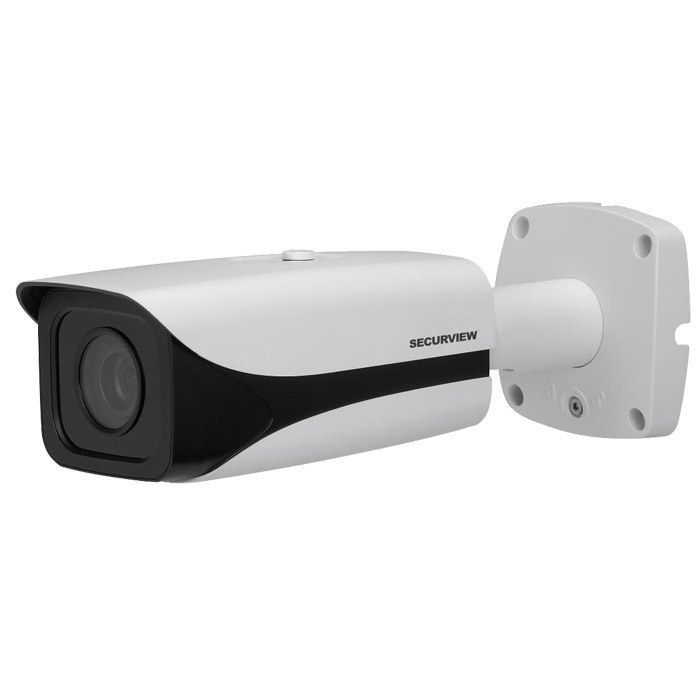

Ultimate Series 1080p WDR Motorised HDCVI Bullet

Experience unparalleled performance and ease of use with the Ultimate Series from Securview, with auto-iris motorised lens, true WDR, 100m infrared, dual voltage support and up to 700m Full HD video transmission.

Camera features:

Streams Full HD 1080p/2.0MP (1920 x 1080)
Motorised 2.7 ~ 12mm lens, auto iris
Colour low light performance 0.005lx/F1.4 min illumination
Up to 700m HD video transmission over coax
Infrared illumination up to 100m
IP67 rated for weather resistance
High definition & standard definition dual outputs
Alarm and audio I/O interface
True WDR (120dB) & 3D noise reduction
Supports HDCVI & Composite video format modes
Switch modes via dual BNC video outputs

Specifications

General

Image Sensor - 1/2.8” 2.1 Megapixel CMOS
Max. Resolution - 2.0 Megapixel
Effective Pixels - 1945 (H) x 1097 (V)
Signal Noise Ratio - > 50dB

Camera

Lens - 2.7 ~ 12mm F1.4 Motorised Lens; Auto Iris
Lens Type - Motorised Varifocal
Angle of View - 95° (wide) ~ 36° (tele)
Focus - Auto/Manual Focus / 0.3m Min. Focus Distance
Minimum Illumination - 0.005 Lux at F1.4 (Colour) / 0 Lux IR Active
Electronic Shutter - 1/3 ~ 1/30,000s
Day/Night - Auto (ICR) / Colour / B&W
Infrared Range - 100m
White Balance - Auto
Noise Reduction - 2D / 3D
Gain Control - Auto
Lighting Compensation - BLC / WDR (120dB)

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m) - 48m (wide) / 133m (tele)
Observe (63px/m) - 19m (wide) / 53m (tele)
Recognise (125px/m) - 10m (wide) / 27m (tele)
Identify (250px/m) - 5m (wide) / 13m (tele)

Video

Resolution - 1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate - 25fps (1080p and lower)
Transmission Distance - Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)

Interface
