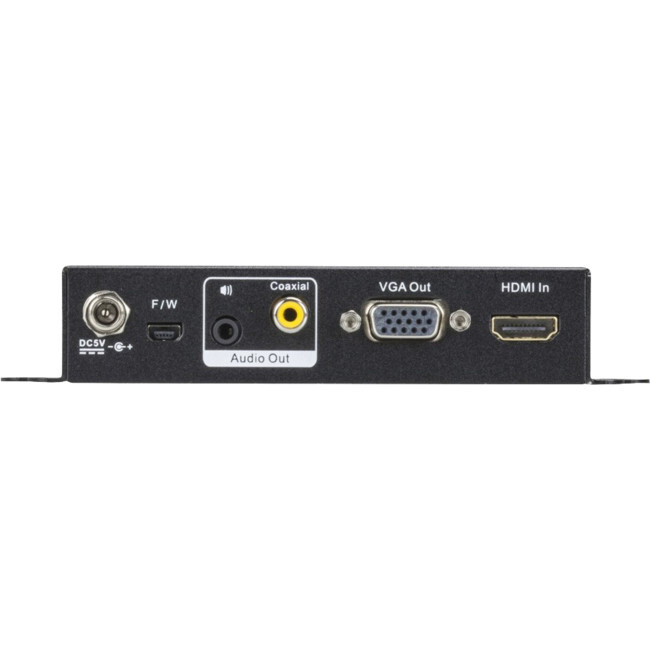

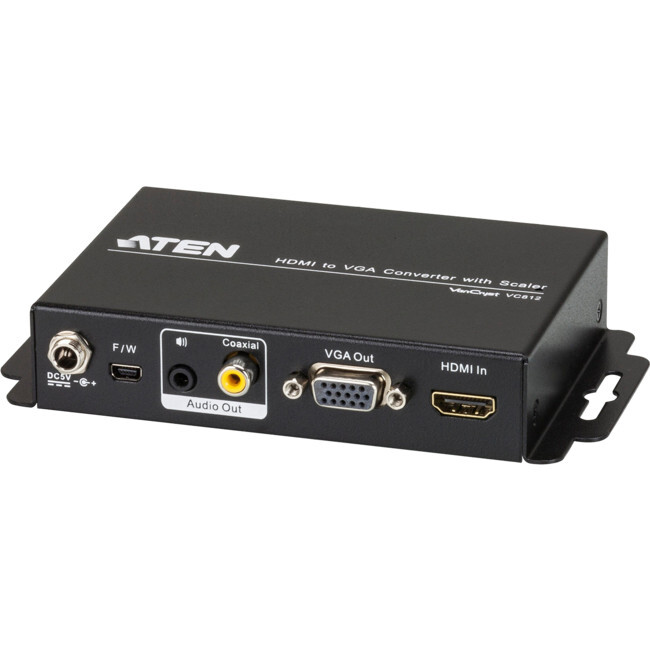

HDMI to VGA/Audio Converter with Scaler VC812

The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performingscaling engine that converts the video resolution to give you the best image quality.

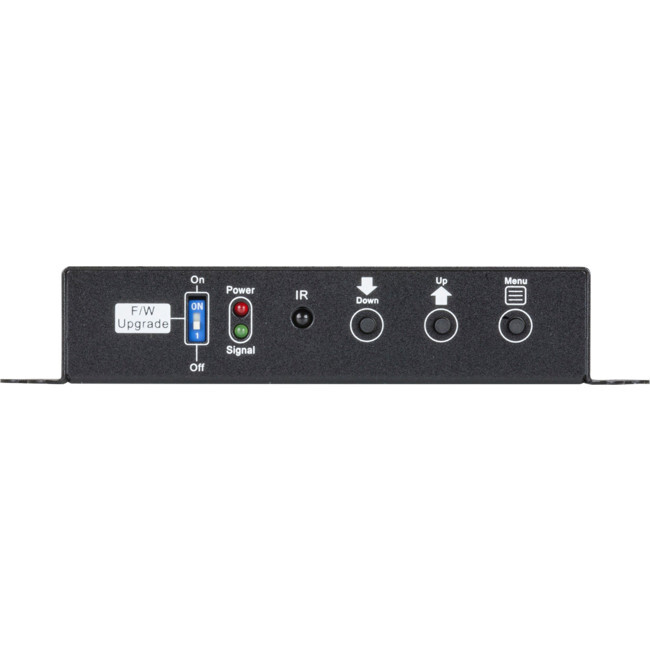

You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.

  • Converts HDMI signals to VGA output
  • Supports analog/digital audio
  • Superior video quality – up to 1080p; 1920x 1200
  • Features a built in high-performance scaler function for best image quality
  • Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
  • 3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
  • Features a superior de-interlacer function for smooth video playback quality
  • Built-in OSD function for video and system settings configuration
  • Integrated superior video noise reduction
  • Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
  • Automatically detects video input signals
  • LED indication of power status and source device
  • No software required – eliminates incompatibility and installation issues
    Note: The VC812 does not support HDCP

{tab Specification}
ideo Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 ?
Video Output
Interfaces 1 x HDB-15 Female (Black)
Impedance 75 ?
Video
Max. Pixel Clock 165 MHz
Max. Resolution Up to 1920 x 1200
Scaler Resolutions 480p; 480i; 576p; 576i; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024;
1360 x 768; 1440 x 900; 1400 x 1050; 1600 x 1200; 1680 x 1050;
1080i; 1080p; 1920 x 1200
Audio
Output Analog: 1 x Mini Stereo Jack Female (Black)
Digital: 1 x RCA (Yellow)
Connectors
Power 1 x DC Jack
Power Consumption TBD
Environmental
Operating Temperature 0 - 40 ºC
Storage Temperature -20 - 60 ºC
Humidity 20 - 90% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.29 kg ( 0.64 lb )
Dimensions (L x W x H) 11.00 x 8.30 x 2.80 cm
(4.33 x 3.27 x 1.1 in.)
Carton Lot 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
{/tabs}

(VC812)

SKU VC812
Model # VC812-AT
Barcode # 4719264640568
Brand ATEN
Assembled Width 0.631m
