5G AX3000 WHOLE HOME MESH WIFI 6 GATEWAY

Ultra-Fast Broadband Connection: Supports Sub-6 GHz 5G technology boosts download speeds up to 3.4Gbps§
Ultra-Low Latency: 5G bringsresponsive network connections with only 1 ms latency§
AX3000 Dual-Band Wi-Fi 6 Speed: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
2.5 Gigabit Wired Connections: 1× 2.5 Gbps port + 2× Gigabit port**
Mesh Network: Deco mesh technology ensures strong Wi-Fi signals everywhere
Flexible Network Access: 4G, 5G, Fixed-Line Internet Access
Simplified Setup: Easily set up and manage your network with the TP-Link Deco app
TP-Link HomeShield:Provides comprehensive network protection, robust parental controls, and real-time loT security*

WIRELESS
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX3000 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 4× LTE/5G internal antennas + 2× Wi-Fi internal antennas + 2× external antenna interface Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity	High Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices
Working Modes	5G/4G Router, Router, Access Point

SECURITY
Network Security	SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
WiFi Encryption	WPA-Personal WPA2-Personal WPA3-Personal

HARDWARE

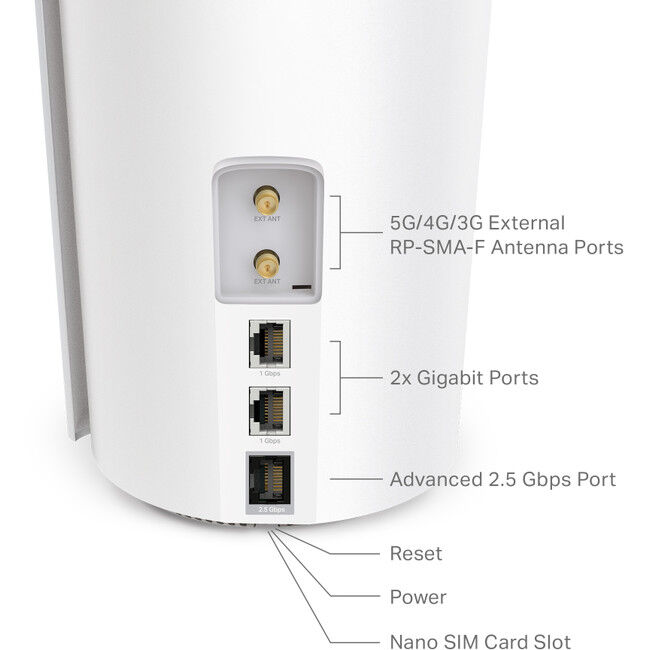

Ports and Connections	1× 2.5 Gigabit port + 2× 1 Gigabit ports (WAN/LAN auto-sensing) Compatibility 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28 4G TDD-LTE: B38/B40/B41/B42/B43 3G: B1/B5/B8

SOFTWARE
Protocols	IPv4 IPv6
Service Kit	HomeShield Learn More>
WAN Types	Dynamic IP Static IP PPPoE L2TP PPTP
Quality of Service	HomeShield QoS QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management	Deco App

TEST DATA
WiFi Transmission Power	CE: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz)

PHYSICAL
Dimensions (W×D×H)	8.3 × 5.1 × 4.8 in (210.5 × 130 × 123mm)

OTHERS
Certification	RoHS, CE, RCM
Package Contents	1-pack 1 Deco X50-5G unit 1 RJ45 Ethernet Cable 1 Power Adapter Quick Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH

SECURITY
Network Security	SPI Firewall Access Control
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
WiFi Encryption	WPA-Personal WPA2-Personal WPA3-Personal

HARDWARE
Ethernet Ports	3× Gigabit Ports Supports WAN/LAN auto-sensing
Buttons	RESET Button
Ports and Connections	2× 3G/4G external SMB antenna interface (also provide 2x SMB to SMA-F Adapters) SIM Card Format: Nano-SIM Compatibility 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)

SOFTWARE
Protocols	IPv4 IPv6
Parental Controls	Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Report
WAN Types	Dynamic IP Static IP PPPoE L2TP PPTP
Quality of Service	QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management	Deco App

TEST DATA
WiFi Transmission Power	CE: ≤20 dBm (2.4GHz) ≤23 dBm (5GHz)

PHYSICAL
Dimensions (W×D×H)	4.13 × 4.13 × 6.57 in (105 × 105 × 167 mm)

OTHERS
Certification	CE, RoHS
Package Contents	1-pack 1 Deco X10-4G unit 1 RJ45 Ethernet Cable 1 Power Adapter 2 SMB to SMA Adapters Quick Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH
