Overview

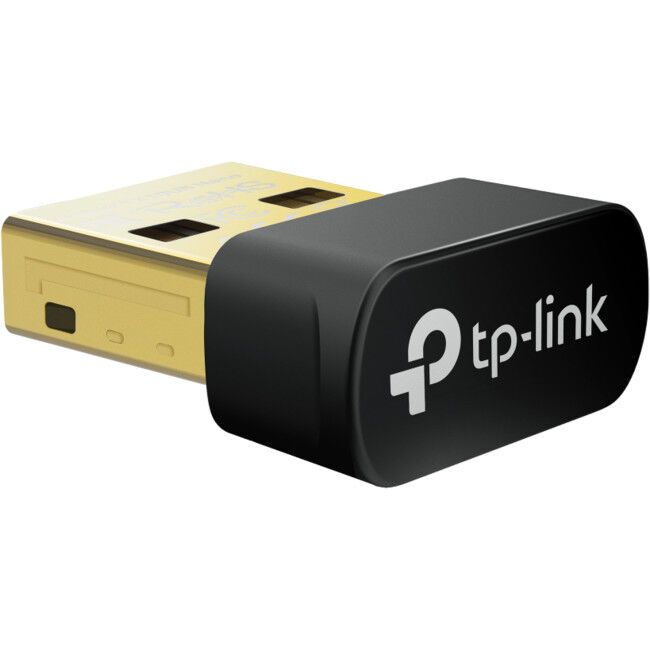

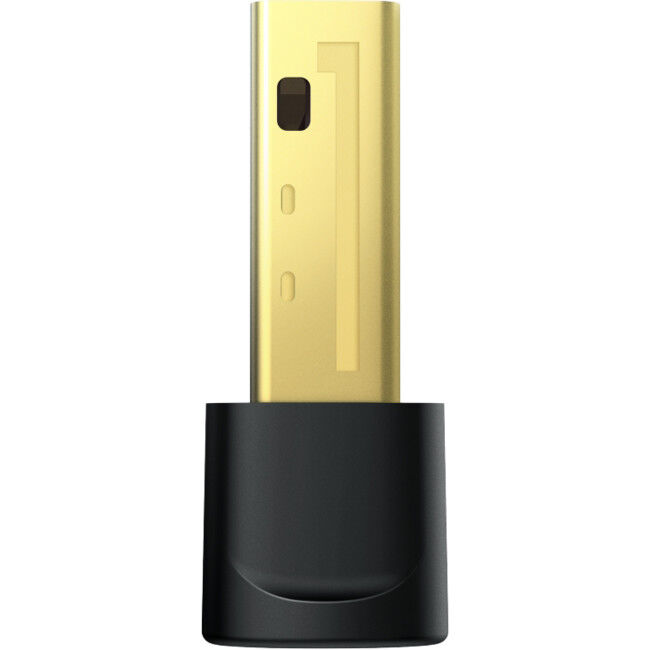

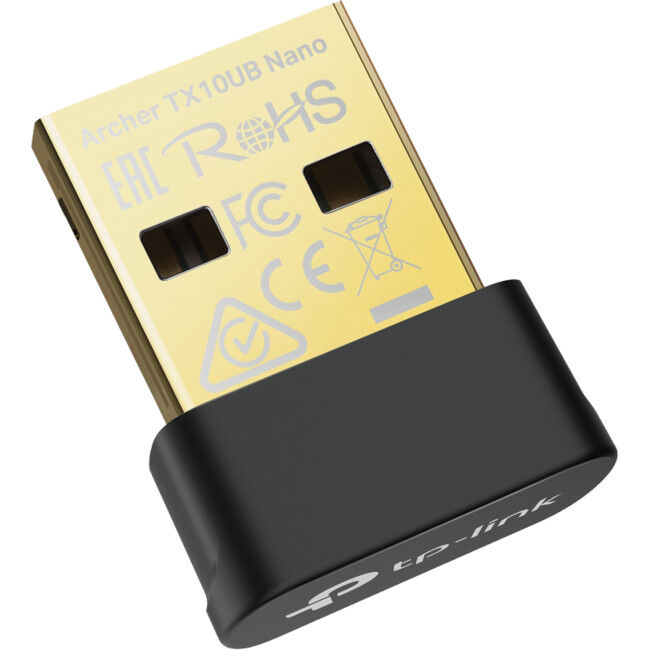

TX10UB-NANO TP-LINK ARCHER AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter

  • High Speed Wi-Fi: Up to 900 Mbps speeds with 287 Mbps on 2.4 GHz and 600Mbps on 5 GHz, upgrades your devices to higher AX Wi-Fi speeds.
  • Dual Band Wireless: 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band Wi-Fi router for faster speed and extended range.
  • Reliable Bluetooth 5.3: Bluetooth 5.3 has beenenhanced in terms of reliability and security, which ensures a more robust coordination with your game controllers, headphones, keyboards an etc.
  • Nano Design: Small, unobtrusive design allows you to plug it in and forget it is even there.
  • Operating System: Supports Windows 11/10.
  • Advanced Security: Supports WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE encryption standards

Specifications

Specifications



HARDWARE FEATURES Interface USB 2.0
Antenna Omni Directional
WIRELESS FEATURES Wireless Standards
  • 2.4 GHz: IEEE 802.11b/g/n/ax
  • 5 GHz: IEEE 802.11a/n/ac/ax
Frequency
  • 5GHz
  • 2.4GHz
Signal Rate 5GHz:
  • 11ax: Up to 600Mbps (dynamic)
  • 11ac: Up to 433Mbps (dynamic)
  • 11n: Up to 150Mbps (dynamic)
  • 11a: Up to 54Mbps (dynamic)

2.4GHz:
  • 11ax: Up to 287Mbps (dynamic)
  • 11n: Up to 200Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
Reception Sensitivity 5GHZ:
  • 11a6M: -94dBm
  • 11ax HE80 MCS11: -59dBm
  • 11ax HE80 MCS0: -87dBm

2GHZ:
  • 11g6M: -95dBm
  • 11ax HE40 MCS11: -65dBm
  • 11ax HE40 MCS0: -93dBm
Wireless Modes Infrastructure Mode
Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
ENVIRONMENT Operating Temperature 0°C~40°C (32°F~104°F)
Operating Humidity 10%~90% non-condensing
OTHERS Dimensions (W×D×H) 19.2mm × 15.7mm × 7.4mm
Package Contents
  • AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter Archer TX10UB Nano
  • Quick Installation Guide
System Requirements Windows 11/10
Certification CE, FCC, RoHS



(TX10UB-NANO)

SKU TX10UB-NANO
Model # TX10UB-NANO
