AX6000 WHOLE HOME MESH WIFI 6 GATEWAY

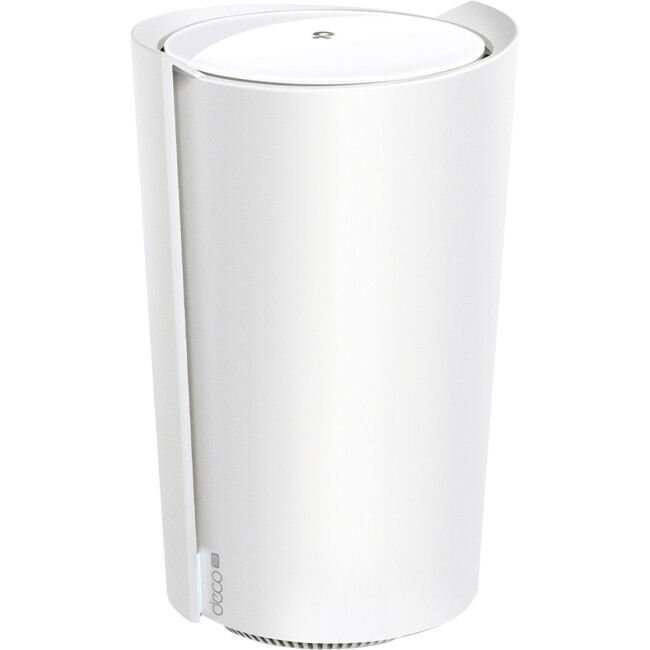

TP-Link Deco X80-5G(1-pack) 5G AX6000 Whole Home Wi-Fi 6 Gateway

Ultra-Fast Broadband Connection: Supports Sub-6 GHz 5G technology and boosts download speeds up to 5.0 Gbps§
Ultra-Low Latency: 5G bringsresponsive network connections with only 1 ms latency§
AX6000 Dual-Band Wi-Fi 6 Speed: 4804Mbps (5 GHz) + 1148 Mbps (2.4 GHz)
2.5 Gigabit Wired Connections: 1× 2.5 Gbps port + 1× Gigabit port**
Mesh Network: Deco mesh technology ensures strong Wi-Fi signals everywhere
Flexible Network Access: 4G, 5G, Fixed-Line Internet Access
Plug & Play: Enjoy Deco 5G right after inserting a SIM card
VoLTE Support:Home phone over VoLTE
Simplified Setup: Easily set up and manage your network with the TP-Link Deco app
TP-Link HomeShield:Provides comprehensive network protection, robust parental controls, and real-time loT security*

WIRELESS
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX6000 5 GHz: 4804 Mbps (802.11ax) 2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range	1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 8× LTE/5G internal antennas + 8× Wi-Fi internal antennas + 2× external antenna interface Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity	High Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 12 Streams More than enough bandwidth for connected devices
Working Modes	5G/4G Router, Router, Access Point

SECURITY
Network Security	SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
WiFi Encryption	WPA-Personal WPA2-Personal WPA3-Personal

HARDWARE
Ethernet Ports	1×2.5 Gigabit port + 1×1 Gigabit port (WAN/LAN auto-sensing)

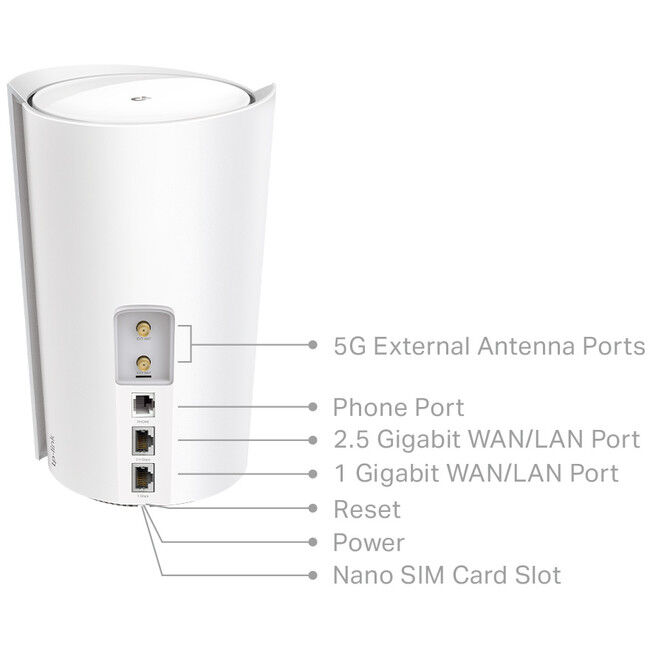

Ports and Connections	2× 5G External Antenna Ports 1× Phone Port Compatibility 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 4G FDD-LTE: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28 4G TDD-LTE: B34/B38/B39/B40/B41/B42/B43

SOFTWARE
Protocols	IPv4 IPv6
Service Kit	HomeShield Learn More>
WAN Types	Dynamic IP Static IP PPPoE L2TP PPTP
Quality of Service	HomeShield QoS QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management	Deco App

TEST DATA
WiFi Transmission Power	CE: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz)

PHYSICAL
Dimensions (W×D×H)	8.3 × 5.1 × 4.8 in (210.5 × 130 × 123mm)

OTHERS
Certification	RoHS, CE, RCM
Package Contents	1-pack 1 Deco X80-5G unit 1 RJ45 Ethernet Cable 1 RJ11 Telephony Cable 1 Power Adapter Quick Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH
