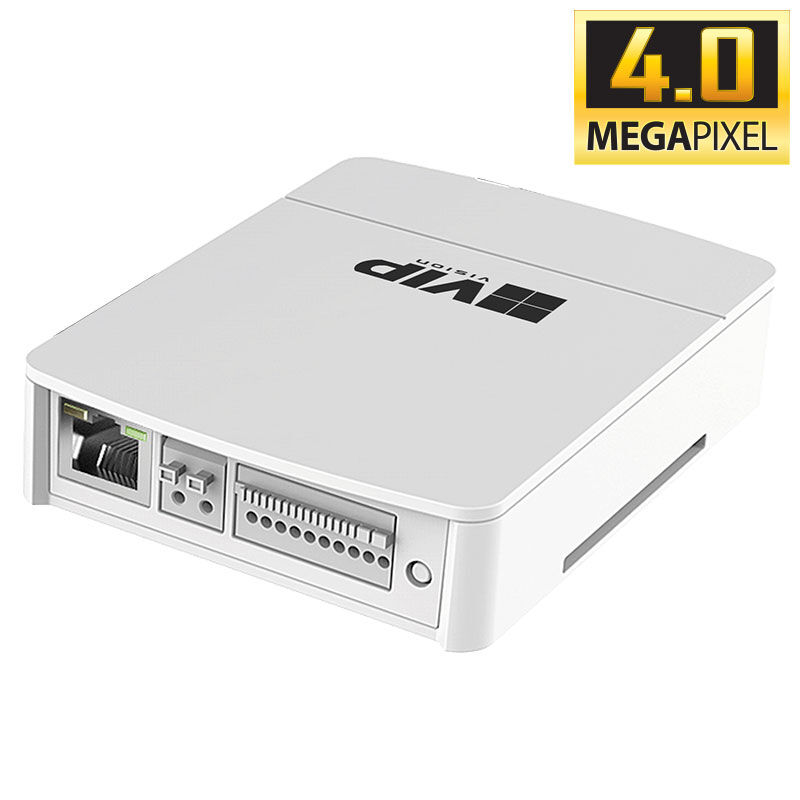

The VSIPPH-4M is a pinhole camera main control unit, requiring a VIP Vision pinhole camera lens. Designed for low profile surveillance applications, Pinhole Series cameras are ideal for controlled ingress points, in-shelf surveillance, in vehicles, ATMs & more.

Camera Features:

• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with wide 101° viewing angle
• Low light colour at 0.005 lux
• Backlight/highlight compensation with true WDR (120dB)
• Day/night (electronic), 3D noise reduction & auto white balance
• Smart detection support incl. face detection, tripwire & intrusion
• Audio & alarm input/output
• MicroSD card slot for at-the-edge recording, up to 256GB
• Power via 12VDC or Power over Ethernet (802.3af)

*Requires the VSIPPH-4L camera le

Specifications

Camera

• Image Sensor : 1/2.7” 4.0 Megapixel Progressive Scan CMOS
• Max. Resolution : 4.0 Megapixel
• Effective Pixels : 2688 (H) x 1520 (V)
• RAM / ROM : 1GB / 128MB
• Ultra Low Light Colour : Yes
• Min Illumination : 0.005 Lux at F2.0 (Colour) / 0.0005 Lux at F2.0 (B&W)
• S/N Ratio : > 56dB
• Infrared : No
• Infrared System : N/A

Lens

• Lens Type : Fixed
• Lens / Iris : 2.8mm F2.0 Fixed Lens
• Field of View : Horizontal: 101°, Vertical: 57°
• Focus : Fixed / 0.8m Min. Focus Distance

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

• Detect (25px/m) : 61m
• Observe (63px/m) :24m
• Recognise (125px/m) : 12m
• Identify (250px/m) : 6m

Video

• Resolution : 4.0MP (2688 x 1520) to CIF (352 x 288)
• Frame Rate (Main) : 4.0MP (1 ~ 25fps)
• Frame Rate (Sub) : D1 (1 ~ 25fps)
• Frame Rate (Third) : 1080p (1 ~ 25fps)
• Video Compression : H.265 / H.264 / H.264H / H.264B / MJPEG (sub stream)
• Bit Rate : H.265: 3~20480Kbps / H.264: 3~20480Kbps
• Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
• Day/Night : Auto (Electronic) / Colour / B&W
• Lighting Compensation : BLC / HLC / WDR (120dB)
• Smart Scene Adaptive (SSA) : Yes
• White Balance : Auto / Natural / Street Lamp / Outdoor / Manual
• Gain Control : Auto / Manual
• Noise Reduction : 3D DNR
• Picture Control : Mirror / Flip (0°, 90°, 180°, 270°)

IVS

• IVS : Yes
• Intelligent Functions : Face Detection, Tripwire, Intrusion, Fast Moving, Loitering Detection, People Gathering, Parking Detection, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)

Network

• Ethernet : RJ45 (10/100 Base-T)
• Protocol : IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
• Streaming Method : Unicast / Multicast
• Max. User Access : 10 Users / 20 Users
• RTMP Support : No

Interface

• Video Interface : N/A
• Audio Interface : 1 Input, 1 Output (3.5mm jack) / Compression: G.711a; G.711Mu; PCM; G.726; G.723
• Alarm Interface : 2 Inputs (5mA 3V-5VDC) / 2 Output (1000mA 30VDC / 500mA 50VDC)
• RS485 : N/A
• Edge Storage : MicroSD Card (up to 256GB) / FTP / SFTP / NAS
• Interoperability : ONVIF (Profile S/Profile G/Profile T) / CGI / P2P / Milestone / Genetec

Environmental

• Power Supply : 12VDC / PoE (802.3af)
• Power Consumption : Basic: 2.4W (12VDC), 3W (PoE) / Max. (AI + WDR): 3.9W (12VDC), 4.8W (PoE)
• Operating Conditions : -40° ~ +60° C / ≤95% RH
• Ingress Protection : N/A
• Weather Resistance : No
• Vandal Resistance : N/A
• Series : Pinhole Series
• Camera Type : Pinhole
• Housing : Metal
• Pan/Tilt/Rotation : N/A
• Tri-Axis Mounting : No
• ePoE : No
• Dimensions : Camera: Ø30.5 mm x 48.7 mm / Control Unit: 100 x 83 x 24mm

Other

• RS232 : 1 Port
