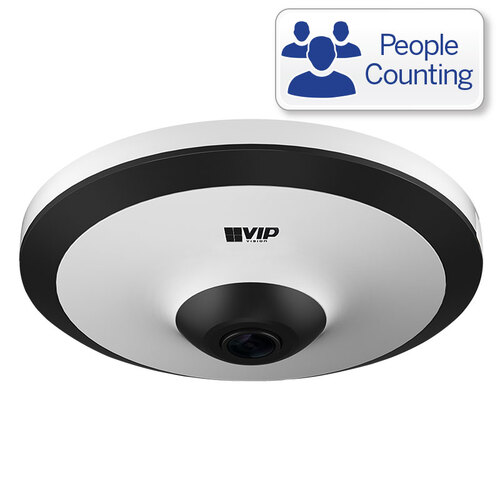

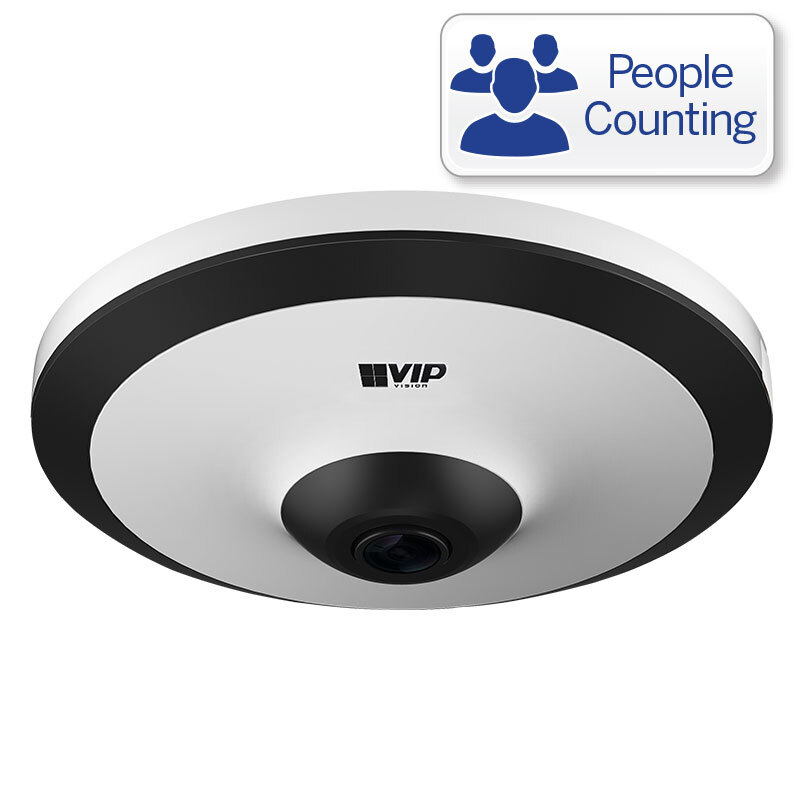

The VSIPFE-5IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting and heat mapping functions. Receive real-time alerts when a certain number of people enter an area with AI people & area counting or set up heat map to observe the amount of time people spend in areas.

Camera Features:

• Stream up to 5.0MP (2592 x 1944) at 25fps
• Circular fisheye lens with 360° viewing angle
• Dewarp modes* for ceiling, floor & wall mounting
• Virtual PTZ, panorama, & camera split dewarp modes
• Up to 10m infrared range; true day/night (auto ICR)
• Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics
• Heat map, tripwire, intrusion & regions of interest
• MicroSD card slot for edge recording up to 256GB
• Built in mic and audio/alarm inputs and outputs

* Check the Supported NVR specification to see if Fisheye Dewarping is supported by that NVR model

Specifications

Camera

• Image Sensor : 1/2.7’’ 5.0MP Progressive Scan CMOS
• Max. Resolution : 5.0 Megapixel
• Effective Pixels : 2592 (H) x 1944 (V)
• RAM / ROM : 512MB / 128MB
• Min Illumination : 0.006lx/F2.0 (Colour)
• S/N Ratio : >56dB : Infrared System : 3 x Infrared LED, 10m range, Auto/manual on/off control

Lens

• Lens Type : Fixed
• Lens / Iris : 1.4mm F2.0 Fixed Circular Fisheye Lens
• Field of View : Horizontal: 180°, Vertical: 180°
• Focus : Fixed / 0.2m Min. Focus

DORI

• Detect (25px/m) : 28m
• Observe (63px/m) : 11m
• Recognise (125px/m) : 6m
• Identify (250px/m) : 3m

Video

• Resolution : 5.0MP (2592 x 1944) to CIF (352 x 288)
• Frame Rate (Main) : 5.0MP (1~25fps)
• Frame Rate (Sub) : D1 (1 ~ 25fps)
• Frame Rate (Third) : 720p (1 ~ 25fps)
• Video Compression : H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG
• Bit Rate : H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
• Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
• Day/Night : Auto (ICR) / Color / B&W
• Lighting Compensation : BLC / HLC / True WDR (120dB)
• Smart Scene Adaptive (SSA) : Yes
• White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
• Gain Control : Auto / Manual
• Noise Reduction : 3D DNR
• Dewarping Modes : Original (No dewarp) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split

IVS

• Intelligent Functions : Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map
• People Counting : Supports Area People Counting (No. of people, People quantity thresholds, 4 zones), Heat Mapping (No.of people and time spent)

Network

• Ethernet : RJ-45 (100/1000 Base-T)
• Protocol : IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
• Streaming Method : Unicast / Multicast
• Max. User Access : 20 Users (Total bandwidth: 64M)

Interface

• Video Interface : N/A
• Audio Interface : 1 input (RCA Port), 1 Built-in Mic / 1 output (RCA Port) / Audio Compression - PCM; G.711a; G.711Mu; G726; AAC
• Alarm Interface : 1 Input (5mA 3VDC ~ 5VDC), 1 Output (300mA 12VDC)
• RS485 : N/A
• Edge Storage : MicroSD Card (up to 256GB) / NAS / FTP / SFTP
• Interoperability : ONVIF Profile S, G & T / CGI / P2P / Milestone / Genetec

Environmental

• Power Supply : 12VDC / PoE (802.3af)
• Power Consumption : <3.6W (12VDC) / <4.4W (PoE) / <8.8W (Max.)
• Operating Conditions : -10° ~ +50° C / Less than 95% RH
• Ingress Protection : N/A
• Vandal Resistance : N/A
• Series : Specialist AI Series
• Camera Type : Fisheye Dome
• Housing : Metal + Plastic
• Pan/Tilt/Rotation : N/A
• ePoE : No
• Dimensions : Ø126.2mm x 44.6mm
