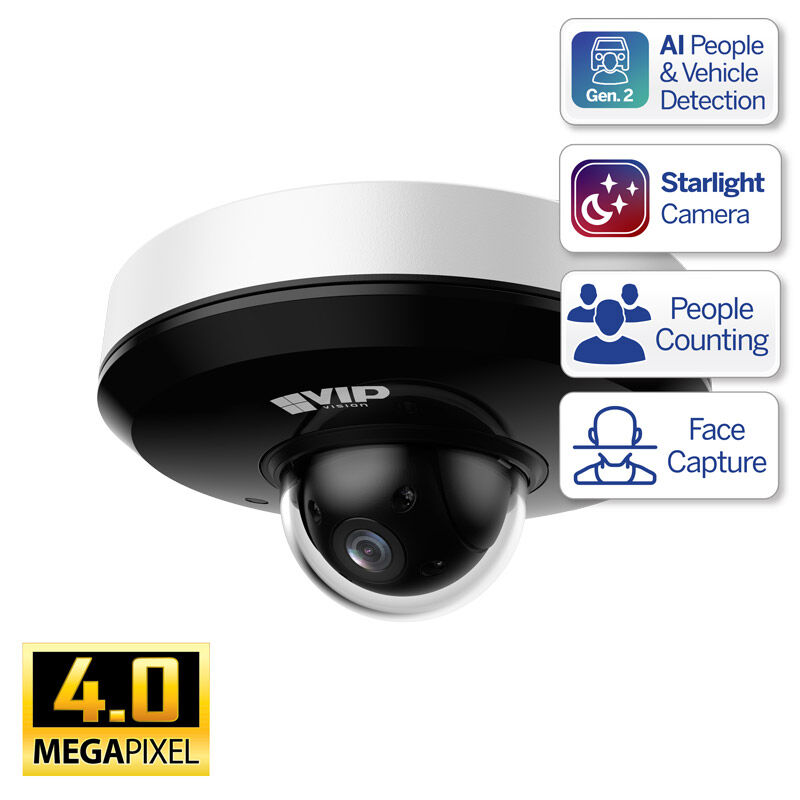

Specialist AI Series 4.0MP 4x Zoom PTZ Dome

Small in size but big on features, the PTZ AI Dome combines the flexibility and coverage of PTZ with the power of smart AI technology. The PTZ AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time.

Camera Features:

Stream up to 4.0MP (2560 x 1440) at 25fps
4x optical zoom lens (32°~97° H viewing angles)
Low light colour performance at 0.005lx; 20m IR
355° panning with tilt adjust; flip 180°
Intelligent AI detection to identify people & vehicles
Next-Gen Smart Motion Detection (SMD 3.0) & Perimeter Protection to prevent false alarms, using VIP Vision NVRs
MicroSD card slot for recording up to 512GB
Supports Power over Ethernet (802.3af)
IP66 weather & IK08 vandal rated resistant housing

Specifications

Camera

Image Sensor : 1/2.8" 4.0MP Progressive Scan CMOS
Max. Resolution : 4.0 Megapixel
Effective Pixels : 2560 (H) x 1440 (V)
RAM / ROM : 512 MB / 256 MB
Min Illumination : 0.005 Lux/F1.8 (Color), 0.0005 Lux/ F1.8 (B/W), 0 Lux (IR on)
S/N Ratio : ≥55 dB
Infrared System : 3 x Infrared LED, 20m range, Auto/manual on/off control

Lens

Lens Type : Motorised Varifocal
Lens / Iris : 2.8 ~ 12mm F1.8 ~ F2.7 Motorised Lens with Auto Iris
Field of View : Horizontal: 32°~97°, Vertical: 18°~51°, Diagonal: 36°~116° (4x Optical Zoom)
Focus : Auto/Manual / 0.2m Min. Focus Distance

DORI

Detect (25px/m) : 240m
Observe (63px/m) : 95m
Recognise (125px/m) : 48m
Identify (250px/m) : 24m

PTZ

Pan / Tilt Range : Pan: 0 ~ 355° / Tilt: 5 ~ 90°
PTZ Speed : Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s
Modes / Presets : Up to 300 presets / 8 tour
Start-up Action : Auto-restore to previous PTZ/lens status

Video

Resolution : 4.0MP (2560 x 1440) to CIF(352 x 288)
Frame Rate (Main) : 4.0MP (1 ~ 25fps)
Frame Rate (Sub) : D1 (1 ~ 25fps)
Frame Rate (Third) : 720p (1 ~ 25fps)
Video Compression : H.264H; H.264B
Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
Bit Rate : H.264: 96 ~ 14,848Kbps / H.265: 38 ~ 8,960Kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Auto (ICR) / Color / B&W
Lighting Compensation : BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA) : No
White Balance : Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light /Street Lamp
Gain Control : Auto / Manual
Noise Reduction : 2D / 3D
Picture Control : Flip 180°

Artificial Intelligence

Face Recognition : N/A
Face Capture : Support
Perimeter Protection : Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking : N/A
Metadata : N/A
People Counting : Supports Line Crossing/Region/Queuing People Counting, Report Generation
Heat Map : N/A

Intelligent Video Surveillance (IVS)

IVS Functions : Abandoned object / Missing object
Event Triggers : Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest : Support
Optical Defog : Support
Digital Zoom : 16×
Privacy Masking : N/A
Image Stabilisation : Electronic

Network

Ethernet : RJ-45 (10Base-T/100Base-TX)
Protocol : IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Streaming Method : Unicast / Multicast
Max. User Access : 20 Users

Interface

Video Interface : N/A
Audio Interface : 1 Input, 1 Output / Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G.722.1
Alarm Interface : N/A
RS485 : N/A
Edge Storage : MicroSD Card (up to 512GB) / FTP / P2P
Interoperability : ONVIF / CGI / SDK

Environmental
