Professional AI Series 5.0MP Fixed Turret Pro

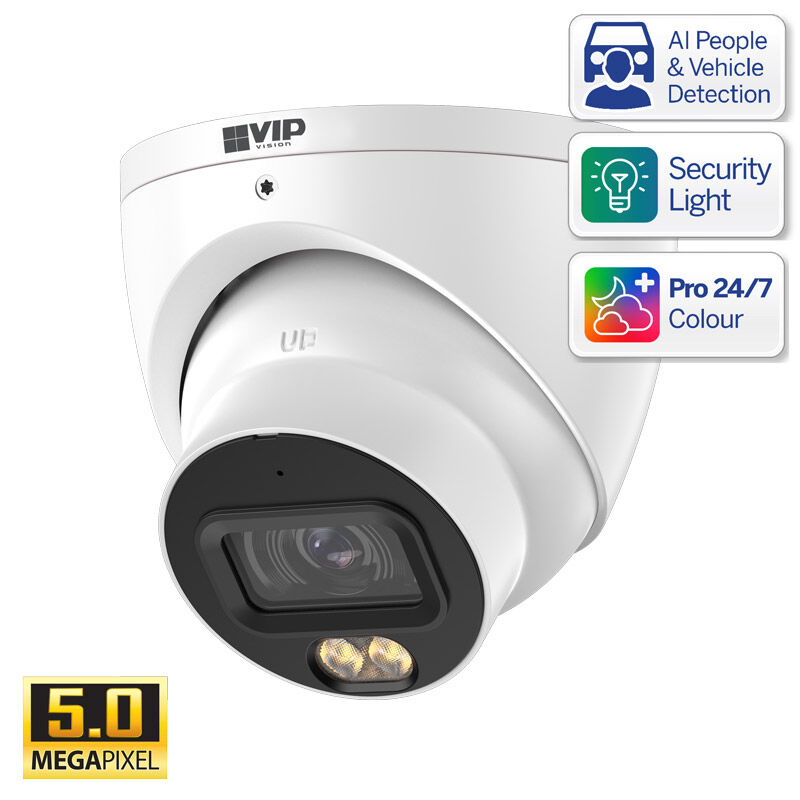

Professional AI Series 5.0MP Fixed Turret Pro VSIPP-5DIRG-I2-P

This Professional AI Series CCTV Turret Pro offers superb low light performance with a large 1/2" sensor and AI image signal processor that produces colour images even in the most challenging of scenes. If there is no available light, the VSIPP-5DIRG-I2-P will illuminate the scene with built-in warm white LED lights, in place of traditional infrared illumination.

Features:

Stream up to 5.0MP (2960 x 1668) at 20fps, 4.0MP (2688 x 1520) at 25fps
Huge 1/2" image sensor and AI image signal processing for low light
Warm LED light illumination (no infrared illumination)
AI human/vehicle smart Motion Detection (Gen.1)
AI human/vehicle tripwire/intrusion (Gen.1)
24/7 Colour low light footage as low as 0.005lx
H.265 encoding for efficient storage & streaming
Back/highlight compensation & true WDR (120dB)
MicroSD slot for recording at the edge up to 256GB
IP67 weather rated housing for outdoor use

Specifications

Camera

Image Sensor : 1/1.8" 5.0MP Progressive Scan CMOS
Max. Resolution : 5.0 Megapixel
Effective Pixels : 2960 (H) × 1668 (V)
RAM / ROM : 256 MB / 128MB
Min Illumination : 0.0005 lux/F1.0, 0 lux (IR)
S/N Ratio : >56 dB
Infrared System : No Infrared Illumination, 2x warm LED light (30m range), Auto/manual on/off control

Lens

Lens Type : Fixed
Lens / Iris : 2.8mm F1.0 Fixed Focal Lens with Fixed Iris
Field of View : Horizontal: 112°, Vertical: 60°
Focus : Auto Focus / 1.7m Min. Focus Distance

DORI

Detect (25px/m) : 58m
Observe (63px/m) : 23m
Recognise (125px/m) : 12m
Identify (250px/m) : 6m

Video

Resolution : 5.0MP (2960 x 1668) to CIF (352 x 288/352 × 240)
Frame Rate (Main) : 5.0MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps)
Frame Rate (Sub) : D1 (1 ~ 25fps)
Frame Rate (Third) : N/A
Video Compression : H.265+ / H.265 / H.264+ / H.264 / H.264B / MJPEG
Bit Rate : H.265: 6 ~ 16384Kbps / H.264: 6 ~ 16384Kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Color/B/W
Lighting Compensation : BLC / HLC / WDR
Smart Scene Adaptive (SSA) : No
White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control : Auto / Manual
Noise Reduction : 3D NR
Picture Control : Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 4.0MP resolution and lower)

IVS

Intelligent Functions : Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection : Smart Motion Detection (SMD+): People and vehicle detection using motion detection Perimeter Protection: People and vehicle detection using tripwire or intrusion rules
Face Detection : N/A
Face Attributes : N/A
People Counting : N/A
Heat Map : N/A
Event Trigger : Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Intelligent Search : Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Network

Ethernet : RJ-45 (10/100 Base-T)
Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Streaming Method : Unicast / Multicast
Max. User Access : 20 Users
