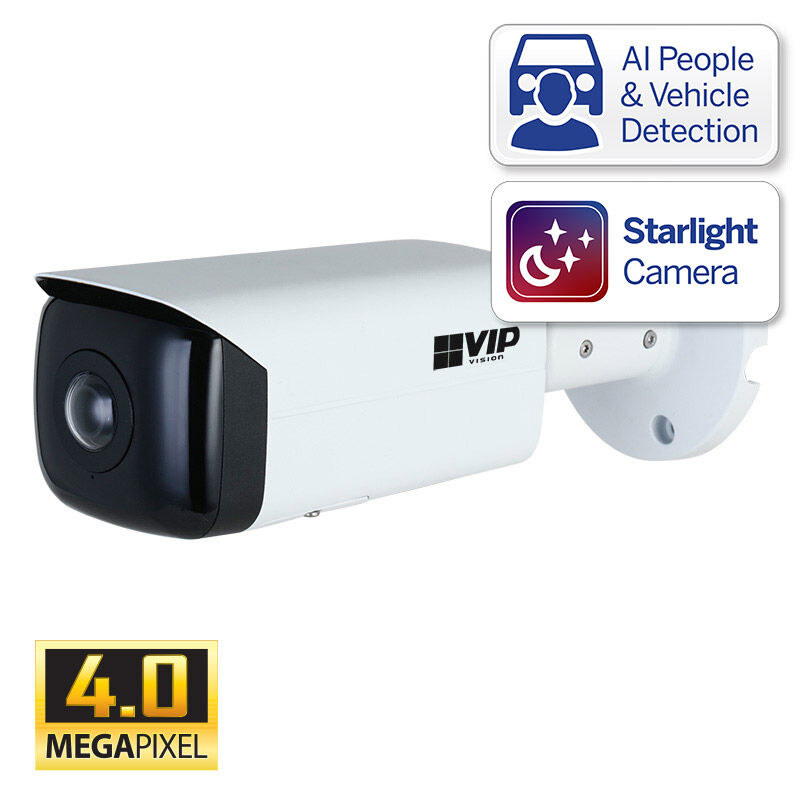

Applying machine-learned algorithms, this Professional AI VSIPP-4BIRW-I camera features intelligent Perimeter Protection and delivers superb image performance with low light colour and a wide-angle lens. The lens provides a panoramic 180° view that can replace multiple cameras in a CCTV system. Perfect for reducing time on installations

• Stream up to 4.0MP (2880 x 1620) at 25fps
• 2.1mm panoramic lens for 170° field of view (Lens Distortion Control enabled; 180° when disabled)
• Back/highlight compensation & true WDR (120dB)
• 20m infrared range & virtual PTZ control
• Starlight sensor for superb low-light performance
• Intelligent AI detection to identify people & vehicles
• Smart Motion Detection (SMD+) & Perimeter Protection for AI alerts and to prevent false alarms
• MicroSD slot for recording at the edge up to 256GB
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• Power via 12VDC or Power over Ethernet (802.3at)

Specifications

Camera

• Image Sensor - 1/2.7" CMOS
• Max. Resolution - 4.0 Megapixel
• Effective Pixels - 2880 (H) x 1620 (V)
• RAM / ROM - 512 MB/128 MB
• Min Illumination - 0.01 Lux / F1.6 (Color), 0.001 lux / F2.0 (B/W, 30 IRE), 0 lux (IR on)
• S/N Ratio - >56 dB
• Infrared System - 2 x Infrared LED, 20m range, Auto/manual on/off control

Lens

• Lens Type - Fixed
• Lens / Iris - 2.1mm F2.0 Fixed Focal Lens
• Field of View - 180°
• Focus - 0.6m Min. Focus Distance

DORI

• Detect (25px/m) - 52.0 m
• Observe (63px/m) - 20.8 m
• Recognise (125px/m) - 10.4 m
• Identify (250px/m) - 5.2 m

Video

• Resolution - 4.6MP (2880 x 1620) / 4.0MP (2688 x 1520)
• Frame Rate (Main) - 4.6MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps)
• Frame Rate (Sub) - D1 (1 ~ 25fps)
• Frame Rate (Third) - 1080p (1 ~ 25fps)
• Video Compression  -H.265, H.264, H.264H, H.264B, MJPEG
• Bit Rate - H.264/H.265: 3 kbps–8192 kbps
• Bit Rate Control - Constant bit rate (CBR) / Variable bit rate (VBR)
• Day/Night - Auto (ICR) / Color / B&W
• Lighting Compensation - BLC / HLC / WDR (120dB)
• Smart Scene Adaptive (SSA) - No
• White Balance - Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
• Gain Control - Auto / Manual
• Noise Reduction - 3D NR
• Picture Control - Mirror / Flip (0°, 90°, 180°, 270°)

IVS

• Intelligent Functions - Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
• Perimeter Protection - Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
• Face Detection - N/A
• Face Attributes - N/A
• People Counting - N/A
• Heat Map - N/A
• Event Trigger - Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
• Intelligent Search - Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes

Network

• Ethernet - RJ-45 (10/100Base-T)
• Protocol - IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
• Streaming Method - Unicast / Multicast
• Max. User Access - 20 Users

Interface

• Video Interface - N/A
• Audio Interface - 1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
• Alarm Interface - 1 channel in: 5 mA 3-5 VDC / 1 channel out: 1,000 mA 30V DC or 500mA 50V DC
• RS485 - N/A
• Edge Storage - MicroSD Card (up to 256GB) / NAS / FTP /SFTP
• Interoperability - ONVIF / PSIA / CGI

Environmental

• Power Supply - 12 VDC/PoE
• Power Consumption - <6.5W
• Operating Conditions - -40°C ~ +60°C, ≤95% RH
• Ingress Protection - IP67
• Vandal Resistance - N/A
• Series - Professional AI Series
• Camera Type - Bullet
• Housing - Metal
• Pan/Tilt/Rotation - Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
• ePoE - No
• Dimensions - 249.3 mm × 90.7 mm × 90.4 mm
