Specialist AI Series Solar 4G Multi-Vision PTZ with 6x Hybrid Zoom VSIPSLR-3P3F

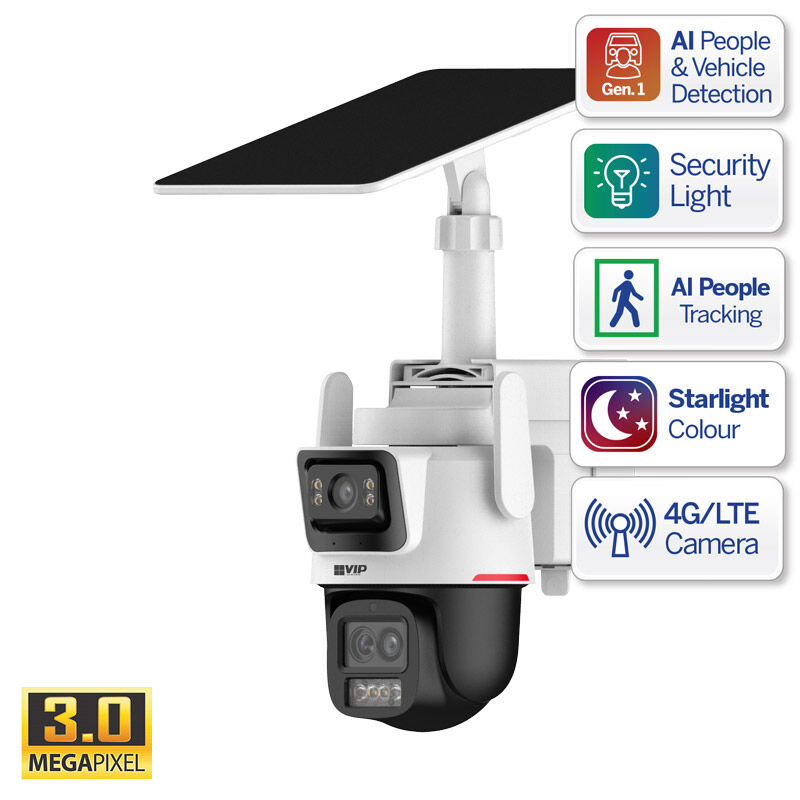

Deliver AI surveillance to remote sites without power or hardwired network access using the standalone Multi-Vision PTZ camera from VIP Vision. It features a built-in 4G modem, solar panel and lithium battery. The camera combines a fixed turret for site overview with a Hybrid Zoom PTZ dome that automatically tracks people. When detection events occur, it activates an LED spotlight and siren to deter intruders.

Features

• Stream up to 3.0MP (2304 x 1296) at 15fps 2.8mm wide angle overview camera
• Stream up to 3.0MP (2304 x 1296) at 15fps PTZ dome with Hybrid Zoom
• PTZ's twin cameras switch focal lengths to zoom on to people during AI Auto-tracking events
• Activates LED spotlight & siren in response to AI detection
• 24/7 surveillance powered by 8W integrated solar panel and built-in 65Wh lithium battery
• Always-On Video provides continuous video recording at 1fps with low power consumption; AI wakes camera on event detection & boosts image capture to 15fps
• Remotely view your site through your phone via the DMSS app

*Includes 128GB microSD card
*AI auto-tracking activates only via people detection

SPECIFICATIONS

Camera

• Image Sensor : Overview: 1/2.8’’ CMOS, PTZ: 1/2.8’ CMOS
• Max. Resolution : 3.0 Megapixel
• Effective Pixels : Overview: 2304 (H) x 1296 (V) PTZ: 2304 (H) x 1296 (V)
• RAM / ROM : Overview: 256 MB / 256 MB, PTZ: 256 MB / 256 MB
• Min Illumination : 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on)
• S/N Ratio : > 56dB
• Infrared System : Overview: 4 x LED Spotlight (Warm White) 30m range, PTZ: 4 x LED Spotlight (Warm White) 50m range

Lens

• Lens Type : Fixed
• Lens / Iris : Overview: 2.8mm F1.0 Fixed Lens PTZ: 3.6mm & 8.4mm F1.0 Fixed Lenses
• Field of View : Overview: Horizontal: 94°, Vertical: 52°, Diagonal: 110°, PTZ: 3.6mm Lens: Horizontal: 82°, Vertical: 44°, Diagonal: 96°, 8.4mm Lens: Horizontal: 15.1°, Vertical: 8.4°, Diagonal: 17.8°
• Focus : Overview: Fixed / 1.0m Min. Focus Distance PTZ: Auto/Semi-Auto/Manual Control, 3.6 mm: 1.7m, 8.4 mm: 6m Min. Focus Dist

DORI

• Detect (25px/m) : Overview: 40m, PTZ: 51m (W), 1200m (T)
• Observe (63px/m) : Overview: 16m, PTZ: 20m (W), 47m (T)
• Recognise (125px/m) : Overview: 8m, PTZ: 10m (W), 24m (T)
• Identify (250px/m) : Overview: 4m, PTZ: 5m (W), 12m (T)

PTZ

• Pan / Tilt Range : Pan: 0 ~ 350° (endless) / Tilt: -0 ~ 90°
• PTZ Speed : Preset: Pan: 40°/s, Tilt: 40°/s, Manual: Pan: 40°/s, Tilt: 40°/s
• Modes / Presets : Up to 50 presets / 8 Tour (32 presets per tour)
• Start-up Action : Supported

Video

• Resolution : Overview: 3.0MP (2304 x 1296) to 640 x 360, PTZ: 3.0MP (2304 x 1296) to 640 x 360
• Frame Rate (Main) : Overview: 3.0MP/1080p/720p/640 x 360 (15 fps), PTZ, 3.0MP/1080p/720p/640 x 360 (15 fps)
• Frame Rate (Sub) : N/A
• Frame Rate (Third) : N/A
• Video Compression : Smart H.265+
• Bit Rate : H265: 54 kbps–1280 kbps
• Bit Rate Control : Variable bit rate (VBR)
• Day/Night : Color and B&W Day/Night
• Lighting Compensation : Digital WDR
• Smart Scene Adaptive (SSA) : N/A
• White Balance : Auto
• Gain Control : Auto
• Noise Reduction : 3D DNR
• Picture Control : 180° Image Rotation

Artificial Intelligence

• Face Recognition : N/A
• Face Capture : N/A
• Perimeter Protection : Tripwire & intrusion (add recognition of humans & vehicles)
• Auto Tracking : Supported
• Metadata : Search via people or vehicle detection events
• People Counting : N/A
• Heat Map : N/A

Intelligent Video Surveillance (IVS)

• IVS Functions : Motion detection
• Event Triggers : Filter motion detection alarms, recognises humans and vehicles from other moving objects
• Region of Interest : N/A
• Optical Defog : N/A
• Digital Zoom : Supported
• Privacy Masking : N/A
• Image Stabilisation : N/A

Network

• Ethernet : N/A
• Protocol : N/A
• Streaming Method : N/A
• Max. User Access : N/A

Interface

• Video Interface : N/A
• Audio Interface : Built-in Mic & Loudspeaker
• Alarm Interface : Built-in White LED Spotlight & Deterrence Siren
• RS485 : N/A
• Edge Storage : MicroSD card slot (up to 512GB), includes 128GB microSD card
• Interoperability : N/A

Environmental

• Power Supply : 65Wh lithium battery / 8W solar panel / Supports USB Type-C power supply
• Power Consumption : Super Power Saving Mode: 40 mW (4G keep-alive), Always-on-Video Mode: 170 mW (1 frame every 2 seconds, SD card recording, 4G keep-alive), Performance Mode 1: 2.4 W (4G streaming, SD card recording, PTZ static, illuminator off), Performance Mode 2: 3.7 W (4G streaming, SD card recording, PTZ static, illuminator on), Max. Power Consumption: 8.0W (4G streaming, SD card recording, PTZ moving, illuminator on, speaker on)
• Operating Conditions : Camera & Solar Panel: –10 °C ~ +50 °C / ≤95% RH, battery: –20 °C ~ +60 °C / ≤95% RH
• Ingress Protection : IP66, TVS 2000V Lightning Proof, Surge Protection, Voltage Transient Protection
• Vandal Resistance : N/A
• Series : Specialist AI Series
• Camera Type : Solar
• Housing : Plastic
• Pan/Tilt/Rotation : Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
• ePoE : No
• Dimensions : 223.2 mm x 130.0 mm x 215.0 mm

Other

• 4G Carrier Frequency : B1/3/5/7/8/20/28 (FDD), B38/40/41 (TDD)
• Management Software : DMSS (Android & IOS)
• Transmission Power : 4G: Power Class 3: 23 dBm ± 2.7 dB
