Professional AI Series 6.0MP Fixed Deterrence Turret

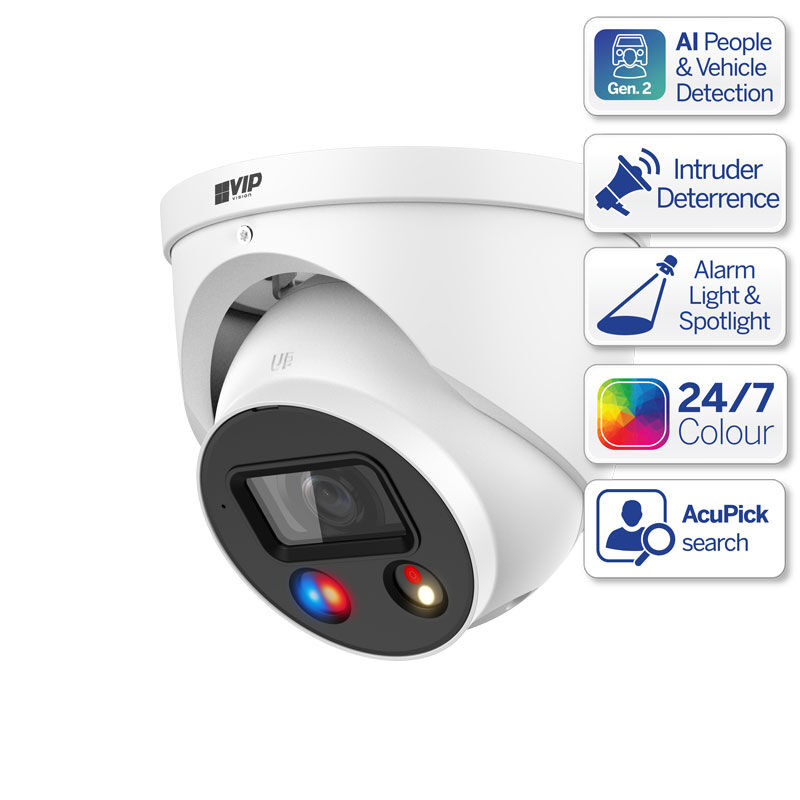

Professional AI Series 6.0MP Fixed Deterrence Turret VSIPP-6DG-ID4

Featuring smart motion detection, the Professional AI Series can distinguish between people, vehicles & other motion to filter out false alarms. The VSIPP-6DG-ID4 includes a loud siren & flashing strobe lights that activate in response to alarm events (such as motion detection), deterring intruders and preventing crime before it happens. Quickly search and track people & vehicles across all Acupick CCTV cameras in your security system.
The VSIPP-6DG-ID4 features 24/7 Colour at night to capture colour detail in the dark and Tripwire/Intrusion detection to detect people & vehicles in specific areas.
Camera features:

Stream up to 6.0MP (3072 x 2048) at 25fps
2.8mm fixed lens with 97° viewing angle
Intelligent search across all Acupick cameras
Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
24/7 Colour low light performance at 0.005lx
Up to 30m infrared, BLC/HLC & true WDR (120dB)
3D digital noise reduction & auto white balance
H.265 encoding for efficient storage & streaming
Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
Next-Gen Smart Motion Detection (SMD 4.0) & Perimeter Protection to prevent false alarms, using VIP Vision NVRs
AI SSA detects/adjusts exposure to ensure clear video.
Built-in microphone and loudspeaker for 2-way talking
1 Audio In/Output (RCA)
MicroSD slot for recording at the edge up to 256GB
IP67 weather rated housing for outdoor use

Specifications

Camera

Image Sensor - 1/2.7” 8.0MP Progressive Scan CMOS
Max. Resolution - 6.0 Megapixel
Effective Pixels - 3072 (H) x 2048 (V)
RAM / ROM - 2G / 256MB
Min Illumination - 0.005 Lux/F1.4 (Color , 30 IRE), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)
S/N Ratio - > 56dB
Infrared System - 1 x Infrared LED, 30m range, Auto/manual on/off control
White Light LED - 1 x Spotlight (Warm White), Auto/manual on/off control
Active Deterrence - 1 x Red & Blue Strobe, 1 x Loudspeaker Siren

Lens

Lens Type - Fixed
Lens / Iris - 2.8mm F1.0 Fixed Focal Lens with Fixed Iris
Field of View - Horizontal: 97°, Vertical: 70°, Diagonal: 128°
Focus - Auto Focus / 1.5m Min. Focus Distance

DORI

Detect (25px/m) - 66m
Observe (63px/m) - 26m
Recognise (125px/m) - 13m
Identify (250px/m) - 7m

Video

Resolution - 6.0MP (3072 x 2048) to CIF (352 x 288 288/352 × 240)
Frame Rate (Main) - 6.0MP (1 ~ 25fps)
Frame Rate (Sub) - 704 x 576 (1 ~ 25fps)
Frame Rate (Third) - 1080p (1 ~ 25fps)
Video Compression - H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG
Bit Rate - H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Bit Rate Control - Constant bit rate (CBR) / Variable bit rate (VBR) / Average Bit Rate (ABR)
Day/Night - Auto (ICR) / Color / B&W
Lighting Compensation - BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA) - Yes
White Balance - Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control - Auto
Noise Reduction - 3D DNR
Picture Control - Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Intelligent Functions - Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog, Object Abandoned / Missing
Perimeter Protection - Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles)
Face Detection - N/A
Face Attributes - N/A
People Counting - N/A
Heat Map - N/A
Event Trigger - Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search - Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle, Search by attributes such as clothing/vehicle colour and vehicle type

Network

Ethernet - RJ-45 (10/100Base-T)
Protocol - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Streaming Method - Unicast / Multicast
Max. User Access - 20 Users (Total bandwidth: 64MB)

Interface

Video Interface - N/A
Audio Interface - Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
Alarm Interface - 1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC
RS485 - N/A
Edge Storage - MicroSD Card (up to 256GB) / NAS / FTP / SFTP
Interoperability - ONVIF (Profile S, Profile G, Profile T) / P2P / CGI / Milestone
