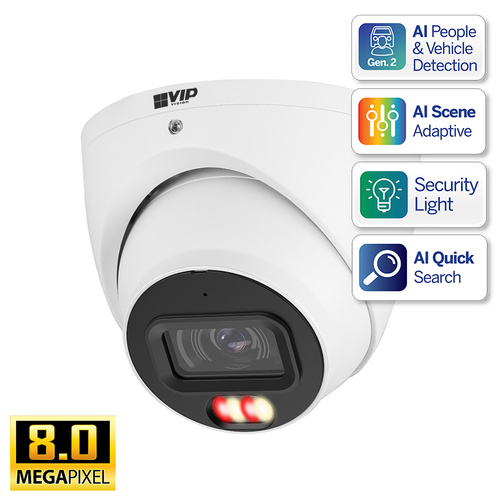

The VSIPP-8DIRG-I3 identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features

• Stream up to 8.0MP (3840 x 2160) at 25fps
• 2.8mm fixed lens with 110° viewing angle
• H.265 encoding for efficient storage & streaming
• Activates LED light during people/vehicle events
• Up to 30m infrared range; true day/night (auto ICR)
• Built-in microphone and microSD slot for edge recording
• AI powered perimeter protection & smart motion detection (SMD 4.0)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI weather and anti-flicker scene self-adaption
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use

Specifications

Camera

• Image Sensor - 1/2.7’’ 8.0MP Progressive Scan CMOS
• Max. Resolution - 8.0 Megapixel
• Effective Pixels - 3840 (H) x 2160 (V)
• RAM / ROM - 1GB / 256MB
• Min Illumination - 0.007 Lux/F1.4 (Color), 0.0007 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)
• S/N Ratio - > 56dB
• Illumination System - 2x warm LED light, 2 x Infrared LED, 30m range, Auto/manual on/off control

Lens

• Lens Type - Fixed
• Lens / Iris - 2.8mm Fixed Focal Lens with Fixed Iris
• Field of View - Horizontal: 110°, Vertical: 58°, Diagonal: 132°
• Focus - Focus / 1.4m Min. Focus Distance

DORI

• Detect (25px/m) - 85m
• Observe (63px/m) - 34m
• Recognise (125px/m) - 17m
• Identify (250px/m) - 8m

Video

• Resolution - 8.0MP (3840 x 2160) to CIF (352 x 288/352 × 240)
• Frame Rate (Main) - 8.0MP (1 ~ 25fps)
• Frame Rate (Sub) - 1080p (1 ~ 25fps)
• Frame Rate (Third) - 1080p (1 ~ 25fps)
• Video Compression-  H.265 / H.264H / H.264 / H.264B / MJPEG
• Bit Rate - H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
• Bit Rate Control - Constant bit rate (CBR) / Variable bit rate (VBR) / Average bit rate (ABR)
• Day/Night - Auto (ICR) / Color / B&W
• Lighting Compensation - BLC / HLC / WDR (120dB) / AI SSA
• Smart Scene Adaptive (SSA) - Yes
• White Balance - Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
• Gain Control - Auto / Manual
• Noise Reduction - 3D DNR
• Picture Control - Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)

AI / Intelligent Functions

• Human/Vehicle Detection
• Face Recognition
• Face Capture
• People Counting - N/A
• Number Plate Recognition
• Auto Tracking
• Video Functions
• Event Triggers
• Intelligent Search - Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

PTZ

• Pan / Tilt Range
• PTZ Speed
• Modes / Presets
• Start-up Action

Network

• Ethernet - RJ-45 (10/100Base-T)
• Protocol - IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;                        UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
• Streaming Method - Multicast
• Max. User Access - 20 Users

Interface

• Video Interface - N/A
• Audio Interface - Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; G.723; PCM
• Alarm Interface - N/A
• RS485 - N/A
• Edge Storage - MicroSD Card (up to 512GB) / NAS
• Interoperability - ONVIF / P2P / CGI

Environmental

• Power Supply - 12VDC / PoE (802.3af)
• Power Consumption - <7.4W / 9.5W (PoE)
• Operating Conditions - -40°C ~ +60°C / ≤95% RH
• Ingress Protection - IP67
• Vandal Resistance - N/A
• Series - Professional AI Series
• Camera Type - Turret
• Housing - Metal
• Pan/Tilt/Rotation - Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
• ePoE -No
• Dimensions - Ø106mm x 94mm

Other

• AcuPick - Yes
• Event Trigger - Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
• Face Attributes - N/A
• Face Detection - N/A
• Heat Map - N/A
• Intelligent Functions - Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
• Perimeter Protection - Tripwire & Intrusion (Add recognition of humans & vehicles)
