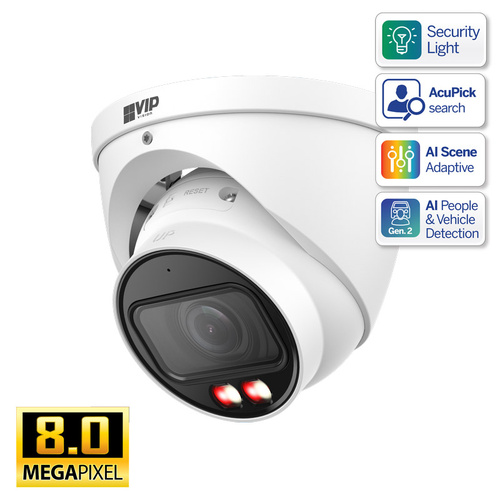

Professional AI Series 8.0MP Motorised Turret

The Professional AI CCTV camera range combines the latest in AI surveillance and a security light into one housing. During AI people and vehicle detection events, the camera will trigger a warm LED light to deter intruders and capture footage in full colour. Quickly search and track people & vehicles throughout entire sites across all Acupick CCTV cameras in your security system.

Camera Features:

Stream up to 8.0MP (3840 x 2160) at 20fps
2.7 ~ 13.5mm motorised lens with 114 ~ 32° viewing angles
Intelligent search across all Acupick cameras
Warm LED light triggers on person/vehicle detection
H.265 encoding for efficient storage & streaming
Up to 40m infrared range; true day/night (auto ICR)
MicroSD slot for recording at the edge up to 512GB
AI powered perimeter protection & smart motion detection (SMD 4.0)
Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
IP67 weather rated housing for outdoor use
AI weather and anti-flicker scene self-adaption

Specifications

Camera

Image Sensor : 1/2.7’’ 8.0MP Progressive Scan CMOS
Max. Resolution : 8.0 Megapixel
Effective Pixels : 3840 (H) x 2160 (V)
RAM / ROM : 1GB / 256MB
Min Illumination : 0.007 Lux/F1.4 (Color), 0.0007 lux/F1.4 (B/W, 30 IRE), 0 lux (Illuminator on)
S/N Ratio : > 56dB
Infrared System : 4x warm LED light (40m range), 2 x Infrared LED (50m range), Auto/manual on/off control

Lens

Lens Type : Motorised Varifocal
Lens / Iris : 2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
Field of View : Horizontal: 114°~32°, Vertical: 58°~17°
Focus : Auto Focus / 0.1m Min. Focus Distance

DORI

Detect (25px/m) : 85m (wide) / 280m (tele)
Observe (63px/m) : 34m (wide) / 112m (tele)
Recognise (125px/m) : 17m (wide) / 56m (tele)
Identify (250px/m) : 8m (wide) / 28m (tele)

Video

Resolution : 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main) : 8.0MP (1 ~ 25fps)
Frame Rate (Sub) : 1080p (1 ~ 25fps)
Frame Rate (Third) : 1080p (1 ~ 25fps)
Video Compression : H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+; Smart H.264+; AI H.265; AI H.264
Bit Rate : H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Auto (ICR) / Color / B&W
Lighting Compensation : BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA) : Yes
White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control : Auto
Noise Reduction : 3D DNR
Picture Control : Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Intelligent Functions : Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Perimeter Protection : Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection : N/A
Face Attributes : N/A
People Counting : N/A
Heat Map : N/A
Event Trigger : Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search : Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Network

Ethernet : RJ-45 (10/100Base-T)
Protocol : IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Streaming Method : Multicast
Max. User Access : 20 Users (Total bandwidth: 64MB)

Interface

Video Interface : N/A
Audio Interface : Built-in Mic / Audio Compression - G.711a; G.711Mu; PCM; G.726; G.723
Alarm Interface : N/A
RS485 : N/A
Edge Storage : MicroSD Card (up to 512GB) / NAS
Interoperability : ONVIF / P2P / CGI
