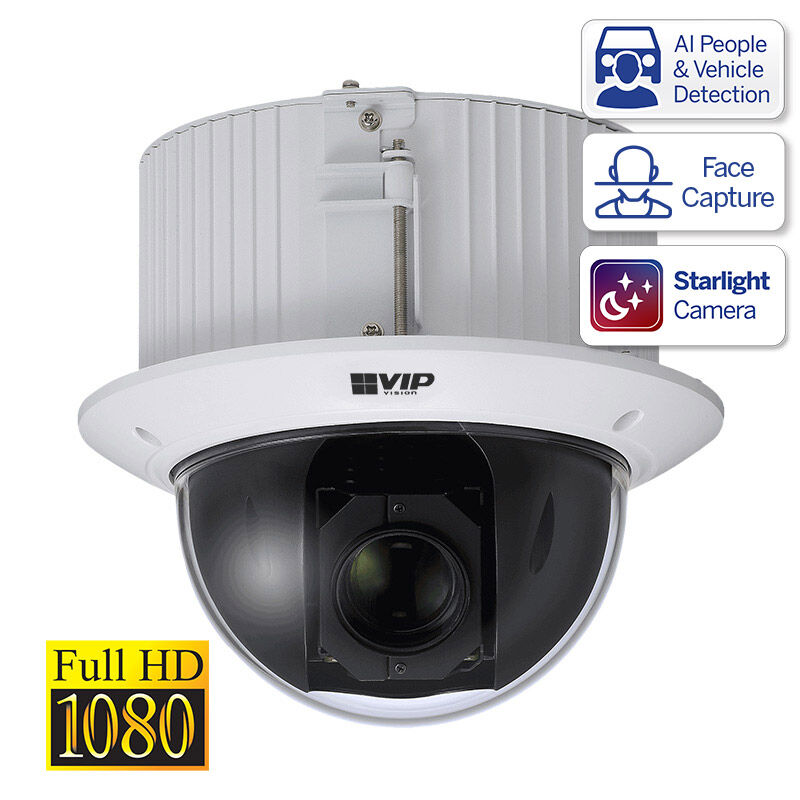

Professional AI Series 2.0MP PTZ Ceiling Mount Camera

Professional AI Series 2.0MP PTZ Ceiling Mount Camera VSIPPTZ-2C-I

This VSIPPTZ-2C-I camera delivers lightning fast PTZ mobility, up to 32x optical zoom and auto-tracking, all in a vandal resistant body. Experience AI face detection & AI Perimeter Protection technology, providing meaningful video event notifications in real-time. Ideal for indoor, time critical applications such as in banks, retail, in gaming and more.

Camera Features:

Stream up to 2.0MP (1920x1080) at 50fps
4.9 - 156mm motorised varifocal lens with 2.2 - 68.2° viewing
H.265 encoding for efficient storage & streaming
Built-in microphone and microSD slot for edge recording
3D digital noise reduction & true WDR (120dB)
Tripwire, Intrusion, Motion detection and more
Power via 24VDC or Power over Ethernet (PoE+ 802.3at)
IK10 rated metal housing

Includes 24VDC/2.5A power supply

Specifications

Camera

Image Sensor : 1/2.8" STARVIS™ CMOS
Max. Resolution : 2.0 Megapixel
Effective Pixels : 1920 (H) x 1080 (V)
RAM / ROM : 1GB / 4GB
Min Illumination : Color: 0.005 Lux @ F1.35 / B/W: 0.0005 Lux @ F1.35
S/N Ratio : ≥ 55 dB
Infrared System : 2 x Infrared LED, 50m range, Auto/manual on/off control

Lens

Lens Type : Motorised Varifocal
Lens / Iris : 4.9 mm ~ 156 mm F1.35-F4.4 Motorised Lens with Auto Iris
Field of View : 62.8°–2.2°
Focus : 1 m–1.5 m Min.

DORI

Detect (25px/m) : 2152m
Observe (63px/m) : 850m
Recognise (125px/m) : 430m
Identify (250px/m) : 215m

PTZ

Pan / Tilt Range : Pan: 0 ~ 360° (endless) / Tilt: 0 ~ 90° / Auto-flip 180°
PTZ Speed : Preset: Pan: 500°/s; Tilt: 500°/s Manual: Pan: 350°/s; Tilt: 250°/s
Modes / Presets : Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action : Auto-restore to previous PTZ/lens status

Video

Resolution : 1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main) : 1080p (1 ~ 50fps)
Frame Rate (Sub) : D1(1 ~ 25fps)
Frame Rate (Third) : 720p (1 ~ 25fps)
Video Compression : H.265/H.264B/H.264M/H.264H/MJPEG/H.265+/H.264+
Bit Rate : H.265/H.264: 3 kbps–20480 kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Auto (ICR) / Color / B&W
Lighting Compensation : BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA) : No
White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control : Auto / Manual
Noise Reduction : 2D / 3D NR
Picture Control : Flip 180°

Artificial Intelligence

Face Recognition : N/A
Face Capture : Support
Perimeter Protection : Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking : Support
Metadata : Support
People Counting : N/A
Heat Map : N/A

Intelligent Video Surveillance (IVS)

IVS Functions : Abandoned object / Missing object
Event Triggers : Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest : Support
Optical Defog : Support
Digital Zoom : 16x
Privacy Masking : Up to 24 areas
Image Stabilisation : Electronic

Network

Ethernet : RJ-45 (10/100Base-T)
Protocol : IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method : Unicast / Multicast
Max. User Access : 20 Users

Interface

Video Interface : 1 Output (Vpp 75Ω)
Audio Interface : 1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
Alarm Interface : 1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC
RS485 : N/A
Edge Storage : MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability : ONVIF / CGI

Environmental
