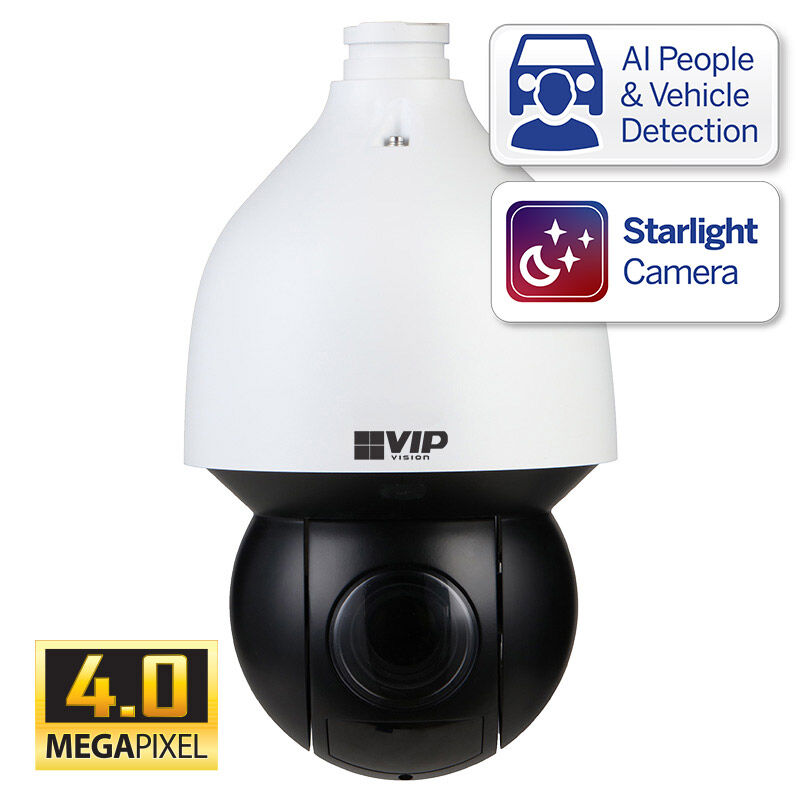

Professional AI Series 4.0MP 32x Zoom PTZ Dome v2 VSIPPTZ-4IRP-I2

The VSIPPTZ-4IRP-I2 offers a versatile surveillance experience, ensuring all areas are covered with up to 32x optical zoom, auto-tracking and fast endless 360° panning. Experience impressive AI powered video analytics and filter false alarms with AI face detection and AI Perimeter Protection technology, providing meaningful video event notifications in real-time.

Camera Features:

• Stream up to 4.0MP (2560 x 1440) at 25fps
• 32x optical zoom lens (55.81° ~ 2.37° viewing angles)
• Low light colour performance at 0.005lx; 150m infrared
• Endless 360° panning and -15° ~ 90° tilt adjustable
• MicroSD card slot for edge recording applications
• Perimeter Protection to identify people & vehicles
• Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms using any VIP Vision NVR
• Power by PoE+ (802.3at) or 24VAC
• IP67 weather rated, lightweight dome housing

Includes wall mount bracket & 24VAC/3A PSU.

Specifications

Camera

• Image Sensor : 1/2.8’’ 4.0MP Starvis™ CMOS
• Max. Resolution : 4.0 Megapixel
• Effective Pixels : 2560 (H) x 1440 (V)
• RAM / ROM : 1GB / 4GB
• Min Illumination : 0.005 Lux/F1.6 (Colour), 0.0005 Lux/F1.6 (B/W)/, 0 Lux (IR Light On)
• S/N Ratio : N/A
• Infrared System : 4 x Infrared LED, 150m range, Zoom Prio/Auto/Manual/Smart IR On/Off control

Lens

• Lens Type : Motorised Varifocal
• Lens / Iris : 4.8mm ~ 154mm F1.6~ F4.0 Motorised Lens
• Field of View : 55.81° ~ 2.37° (H), 31.92° ~ 1.34° (V), 63.71° ~ 2.71° (D) (32x Optical Zoom)
• Focus : Auto/Semi-Auto/Manual / 0.1m ~ 1.5m Min. Focus Distance

DORI

• Detect (25px/m) : 2,124m
• Observe (63px/m) : 839m
• Recognise (125px/m)  : 425m
• Identify (250px/m) : 212m

PTZ

• Pan / Tilt Range : Pan: 0° ~ 360° (endless) / Tilt: -15° ~ 90° / Auto Flip 180°
• PTZ Speed : Preset: Pan: 400°/s; Tilt: 300°/s Manual: Pan: 300°/s; Tilt: 200°/s
• Modes / Presets : Up to 300 presets / 5 Pattern, 8 Tour, 5 scanning, Auto Pan, Auto Scan
• Start-up Action : Auto-restore to previous PTZ/lens status

Video

• Resolution : 4.0MP (2560 x 1440) to CIF (352 x 288)
• Frame Rate (Main) : 4.0MP (1 ~25fps)
• Frame Rate (Sub) : D1(1 ~ 25fps)
• Frame Rate (Third) : 720p (1 ~ 25fps)
• Video Compression : H.265+ / H.265 / H.264+ / H.264 / H.264B / H.264H /MJPEG
• Bit Rate : H.265/H.264: 3 kbps–20480 kbps
• Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
• Day/Night : Auto (ICR) / Color / B&W
• Lighting Compensation : BLC / HLC / WDR (120dB)
• Smart Scene Adaptive (SSA) : No
• White Balance : Auto / Indoor / Outdoor / Tracking / Manual / Sodium lamp / Natural light / Street lamp
• Gain Control : Auto / Manual
• Noise Reduction : 2D / 3D DNR
• Picture Control : Flip 0°/180°

Artificial Intelligence

• Face Recognition : N/A
• Face Capture : N/A
• Perimeter Protection : Tripwire & Intrusion (Add recognition of humans & vehicles)
• Auto Tracking : Support
• Metadata : Supports human, motor vehicles and non motor vehicle search. Supports face image capture and footage search by face image & facial attributes
• People Counting : N/A
• Heat Map : N/A

Intelligent Video Surveillance (IVS)

• IVS Functions : Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
• Event Triggers : Motion Detection, Video Tampering , Audio Detection, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
• Region of Interest : Support
• Optical Defog : Support
• Digital Zoom : 16x
• Privacy Masking : Up to 24 areas, and up to 8 areas in the same view
• Image Stabilisation : Support

Network

• Ethernet : RJ-45 (10/100Base-T)
• Protocol : IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
• Streaming Method : Unicast / Multicast
• Max. User Access : 20 Users

Interface

• Video Interface : N/A
• Audio Interface : 1 Input / 1 Output / Compression: G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2
• Alarm Interface : 2 Inputs / 1 Output
• RS485 : N/A
• Edge Storage : FTP; Micro SD card (256G); P2P
• Interoperability : ONVIF Profile S&G&T; CGI

Environmental

• Power Supply : 24VAC/3A (±25%) / PoE+ (802.3at)
• Power Consumption : <12W / <20W (IR on)
• Operating Conditions : -40° ~ +70° C / Less than 95% RH
• Ingress Protection : IP67
• Vandal Resistance : IK10
• Series : Professional AI Series
• Camera Type : PTZ
• Housing : Metal
• Pan/Tilt/Rotation : Pan: 0° ~ 360°, Tilt: -15° ~ 90°
• ePoE : N/A
• Dimensions : Ø190mm x 332mm

Other

• Intelligent Search : Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
• SMD+ : Filter motion detection alarms, recognises humans and vehicles from other moving objects
• Surge Protection : TVS 6000V Lightning Protection / Surge Protection
