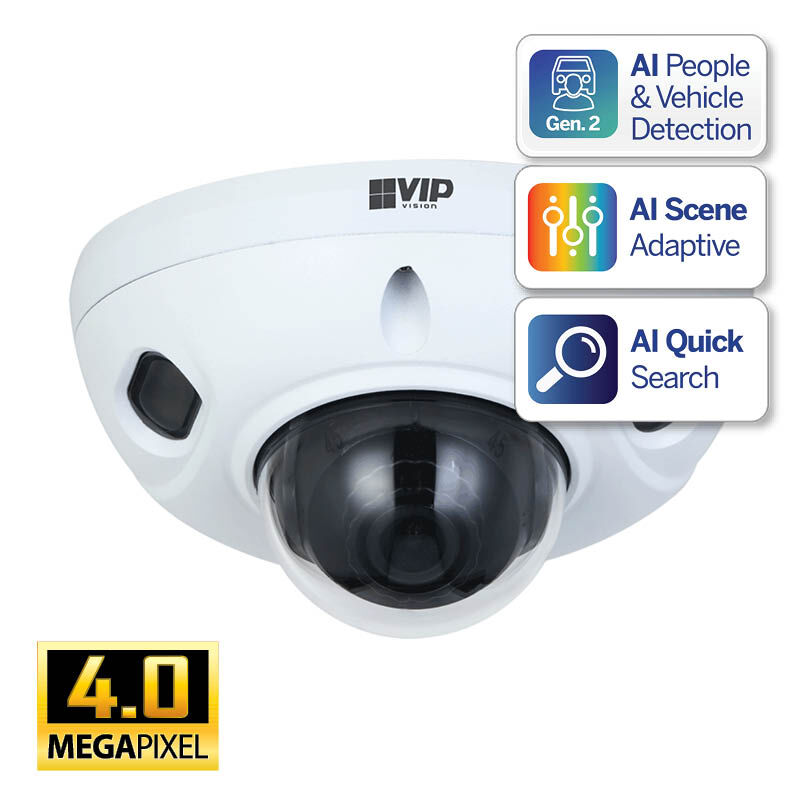

Professional AI Series 4.0MP Fixed Wedge Dome

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:

Stream up to 4.0MP (2688 x 1520) at 25fps
2.8mm fixed lens with 102° viewing angle
H.265 encoding for efficient storage & streaming
Up to 30m infrared range; true day/night (auto ICR)
MicroSD slot for recording at the edge up to 256GB
AI powered perimeter protection & smart motion detection (SMD 4.0)
Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
AI weather and anti-flicker scene self-adaption
Back/highlight compensation & true WDR (120dB)
3D digital noise reduction & auto white balance
IP67 weather rated housing for outdoor use
IK10 vandal resistant metal housing

Specifications

Camera

Image Sensor - 1/3’’ 4.0MP Progressive Scan CMOS
Max. Resolution - 4.0 Megapixel
Effective Pixels - 2688 (H) x 1520 (V)
RAM / ROM - 512MB / 128MB
Min Illumination - 0.005 Lux/F1.6 (Color)
S/N Ratio - N/A
Infrared System - 2 x Infrared LED, 30m range, Auto/manual on/off control

Lens

Lens Type - Fixed
Lens / Iris - 2.8mm Fixed Focal Lens with Fixed Iris
Field of View - Horizontal: 102°, Vertical: 54°
Focus - Auto Focus / 0.9m Min. Focus Distance

DORI

Detect (25px/m) - 64m
Observe (63px/m) - 25m
Recognise (125px/m) - 13m
Identify (250px/m) - 6m

Video

Resolution - 4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main) - 4.0MP (1 ~ 25fps)
Frame Rate (Sub) - D1 (1 ~ 25fps)
Frame Rate (Third) - 1080p (1 ~ 25fps)
Video Compression - H.265 / H.264 / H.264H / H.264B / MJPEG
Bit Rate - H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control - Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night - Auto (ICR) / Color / B&W
Lighting Compensation - BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA) - Yes
White Balance - Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control - Auto
Noise Reduction - 3D DNR
Picture Control - Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)

IVS

Intelligent Functions - Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection - Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection - N/A
Face Attributes - N/A
People Counting - N/A
Heat Map - N/A
Event Trigger - Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search - Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle

Network

Ethernet - RJ-45 (10/100Base-T)
Protocol - IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method - Unicast / Multicast
Max. User Access - 20 Users

Interface
