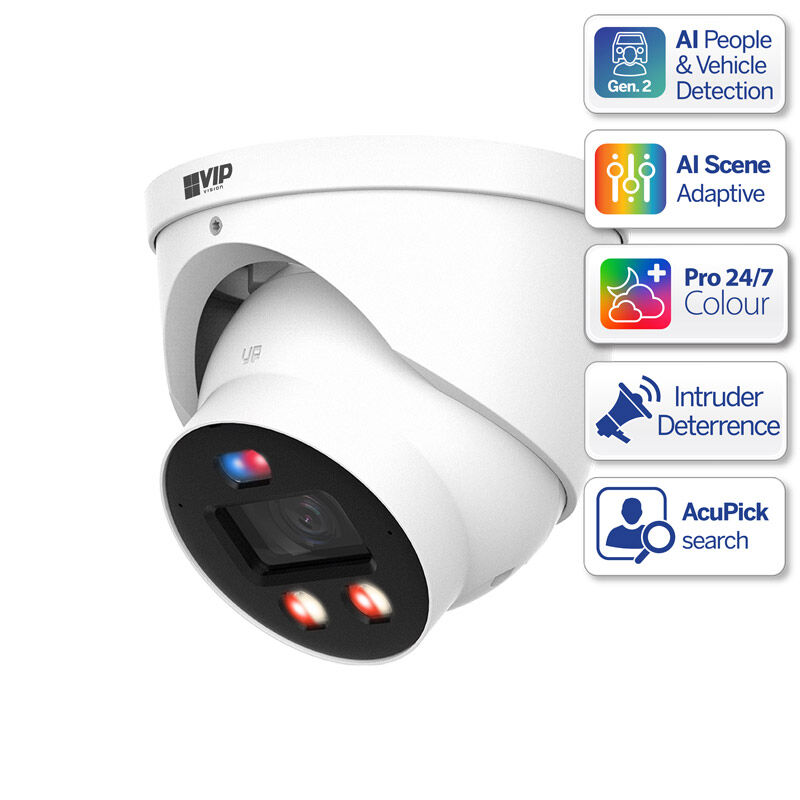

Professional AI Series 6.0MP Fixed Deterrence Turret Pro

Professional AI Series 6.0MP Fixed Deterrence Turret Pro

This Professional AI Active Deterrence Camera Pro combines surveillance, security lighting and a siren into a single camera to deter intruders during AI people & vehicle detection events. It takes the standard Active Deterrence camera and equips it with a large image sensor and image signal processor to capture colour images even in the most challenging of lighting conditions. Quickly search and track people & vehicles across all Acupick CCTV cameras in your security system.

Features

Stream up to 6.0MP (3288 x 1850) at 25fps
Capture colour footage for longer with 1/1.8" sensor
Intelligent search across all Acupick cameras
Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
24/7 Colour low light footage as low as 0.005lx
Up to 30m infrared, BLC/HLC & true WDR (120dB)
Intelligent AI detection to identify people & vehicles
Next-Gen Smart Motion Detection (SMD 4.0) & Perimeter Protection to prevent false alarms, using VIP Vision NVRs
AI SSA detects/adjusts exposure to ensure clear video.

Specifications

Camera

Image Sensor: 1/1.8" CMOS
Max. Resolution: 6.0 Megapixel
Effective Pixels: 3288 (H) x 1850 (V)
RAM / ROM: 256MB / 2G
Min Illumination: 0.0005 lux@F1.0 (Colour, 30 IRE) / 0.0004 lux@F1.0 (B/W, 30IRE) / 0 lux (illumination on)
S/N Ratio: > 56dB
Infrared System: 1 x Infrared LED, 30m range, Auto/manual on/off control
White Light LED: 2 x Spotlight (Warm White), 30m range, Auto/manual on/off control
Active Deterrence: 1 x Red & Blue Strobe, 1 x Loudspeaker Siren

Lens

Lens Type: Fixed Lens
Lens / Iris: 2.8mm F1.0 Fixed Focal Lens with Fixed Iris
Field of View: Horizontal: 109°, Vertical: 59°, Diagonal: 131°
Focus: Auto Focus / 3.2m Min. Focus Distance

DORI

Detect (25px/m): 70m
Observe (63px/m): 28m
Recognise (125px/m): 14m
Identify (250px/m): 7m

Video

Resolution: 6MP (3288 x 1850 / 3200 x 1800) to CIF (352 x 288 / 352 × 240)
Frame Rate (Main): 6.0MP (1 ~ 25fps)
Frame Rate (Sub): 1080p (1 ~ 25fps)
Frame Rate (Third): 1080p (1 ~ 25fps)
Video Compression: H.265+ / H.264 / H.264+ / H.264 / MJPEG
Bit Rate: H.264: 3 ~ 16384kbps / H.265: 3 ~ 16384kbps
Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR) / Average Bit Rate (ABR)
Day/Night: Auto (ICR) / Colour / B/W
Lighting Compensation: BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA): SSA
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control: Auto
Noise Reduction: 3D NR
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog, Object Abandoned / Missing
Perimeter Protection: People and vehicle detection using tripwire or intrusion rules
Event Trigger: Motion Detection, Perimeter Protection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search: Search people or vehicle detection events (Perimeter Protection), Search by attributes, such as clothing/vehicle colour and vehicle type (AI Quick Pick)

Network

Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users (Total bandwidth: 64MB)

Interface

Audio Interface: Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723:
Alarm Interface: 1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC
Edge Storage:MicroSD Card (up to 512GB) / NAS / FTP / SFTP
Interoperability: ONVIF (Profile S, Profile G, Profile T) / P2P / CGI

Environmental
