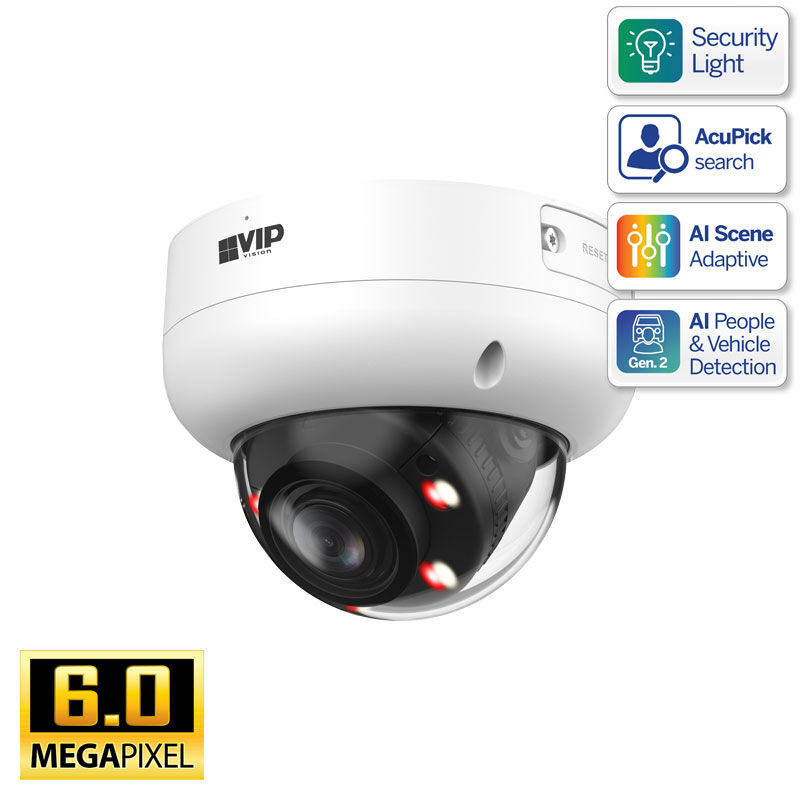

Professional AI Series 6.0MP Motorised Vandal Dome

The Professional AI CCTV camera range combines the latest in AI surveillance and a security light into one housing. During AI people and vehicle detection events, the camera will trigger a warm LED light to deter intruders and capture footage in full colour. Quickly search and track people & vehicles throughout entire sites across all Acupick CCTV cameras in your security system.

Camera Features:

Stream up to 6.0MP (3288 × 1850) at 25fps
2.7 ~ 13.5mm motorised lens with 114~32° viewing angles
Intelligent search across all Acupick cameras
Warm LED light triggers on person/vehicle detection
H.265 encoding for efficient storage & streaming
Up to 50m infrared range; true day/night (auto ICR)
MicroSD slot for recording at the edge up to 512GB
AI powered perimeter protection & smart motion detection (SMD 4.0)
Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
AI weather and anti-flicker scene self-adaption
IP67 weather rated housing for outdoor use
IK10 vandal resistant metal housing

Specifications

Camera

Image Sensor : 1/2.7’’ 6.0MP Progressive Scan CMOS
Max. Resolution : 6.0 Megapixel
Effective Pixels : 3288 (H) × 1850 (V)
RAM / ROM : 1GB / 256MB
Min Illumination : 0.007 Lux/F1.4 (Color), 0.0007 Lux/F1.4 (B/W), 0 lux (illuminator on)
S/N Ratio : > 56dB
Infrared System : 4x warm LED light, 4 x Infrared LED, 50m range, auto/manual on/off control

Lens

Lens Type : Motorised Varifocal
Lens / Iris : 2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
Field of View : Horizontal: 114°~32°, Vertical: 58°~17°
Focus : Auto Focus / 0.1m Min. Focus Distance

DORI

Detect (25px/m) : 85m (wide) / 280m (tele)
Observe (63px/m) : 34m (wide) / 112m (tele)
Recognise (125px/m) : 17m (wide) / 56m (tele)
Identify (250px/m) : 8m (wide) / 28m (tele)

Video

Resolution : 6.0MP (3288 × 1850) to CIF (352 x 288)
Frame Rate (Main) : 6.0MP (1 ~ 25fps)
Frame Rate (Sub) : 1080p (1 ~ 25fps)
Frame Rate (Third) : 1080p (1 ~ 25fps)
Video Compression : H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+; Smart H.264+; AI H.265; AI H.264
Bit Rate : H.265: 3 ~ 16384 Kbps / H.264: 3 ~ 16384 Kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Auto (ICR) / Color / B&W
Lighting Compensation: BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA) : Yes
White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control : Auto
Noise Reduction : 3D DNR
Picture Control : Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Intelligent Functions : Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Perimeter Protection : Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection : N/A
Face Attributes : N/A
People Counting : N/A
Heat Map : N/A
Event Trigger : Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search : Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Network

Ethernet : RJ-45 (10/100Base-T)
Protocol : IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Streaming Method : Multicast
Max. User Access : 20 Users (Total bandwidth: 64MB)

Interface

Video Interface : N/A
Audio Interface : 1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; PCM
Alarm Interface : 1 channel in: 3- 5mA 5VDC / 1 channel out: 300mA 12VDC
RS485 : N/A
Edge Storage : MicroSD Card (up to 512GB) / NAS
Interoperability : ONVIF / P2P / CGI

Environmental
